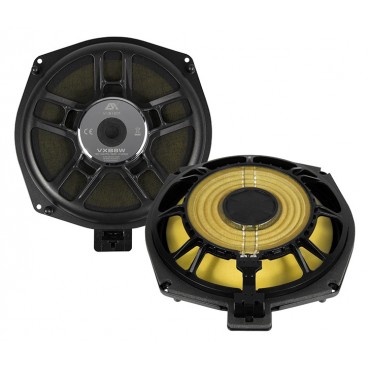

VXB8W

20 cm (8”) Subwoofer (Pair)


Power Rating 180/300 Watt RMS/max.
Impedance 2 Ohms, Frequency Range 30 - 300 Hz
217 mm Kevlar Composite Cone
51 mm Voice Coil, Nomex Spider
N35 Neodymium Magnet Driver
Car-specific Connector
Installation Depth: 31 mm, Installation Opening : 200 mm

Fits into:
Many BMW E/F/G and MINI R/F Models
Refer to Compatibility List
For all BMW or Mini fans with high musical demands, the VISION VXB speaker systems are now available, which leave nothing to be desired. The quality is already evident when unpacking the VISION VXB sets, which are top-quality and equipped with high-quality die-cast aluminum baskets. All components are consistently designed for plug & play. No cables have to be destroyed, no extra hole has to be drilled anywhere and body parts do not have to be additionally processed. All VISION VXB components are perfectly tailored to the vehicle-specific installation locations.

In addition to the unbelievably good midrange and high-frequency speakers, the VXB subwoofer duo must be mentioned. They impress with large 51 mm voice coils, a load capacity of 180 watts RMS at 2 Ω and Kevlar composite cones, specially designed for high levels.

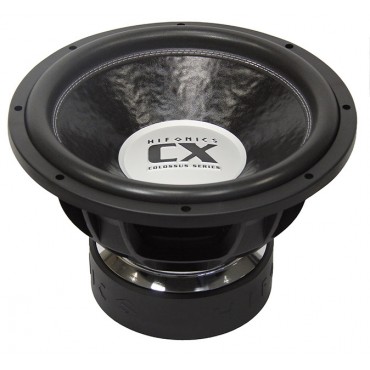

38 cm (15") Subwoofer
4500 W/RMS, 9000 W/MAX, 2 + 2 Ω
Fs 34 Hz • Qts 0,39 • VAS 59 L • 89 dB
Ø 358 mm, ‡ 260 mm
• Triple Magnet 3 x 285 Ounces (3 x 8,08 kg)
• 100 mm Dual Voice Coil with X-Max. +/-25 mm
• Double Stitched Surround
• Dual Nomex Spider with Double Centering
• Non-Pressed Paper Cone

• Sewn-in Strands
• Reinforced Aluminum Dustcap
• Aluminum Die-Cast Basket
• Chromed Pole Plate
• Sound Quality and SPL
If you are looking for a subwoofer, which sound very good but equally can start an earthquake, you might found the perfect solution with the CX COLOSSUS. Who ever "felt" a subwoofer of this class before, knows how much fun real deep bass can make. It's like cubic capacity or torque in a car, you can't have too much of it. The brute force of the COLOSSUS subwoofer is mastered by triple magnets, double-centerings and aluminum cones. Thanks to aluminum basket, sewn surrounds and the use of robust special glue everything is rock solid stable. Really great are the huge 4 "(100 mm) dual 2 ohm voice coils, wounded with a special wire made of aluminum and copper, which tolerate heat up to 220 ° C. So loads up to 4500 watts RMS and even more than 9000 Watt max. output power are possible. The best for last: The 30 cm heavyweight creates in 75 liters enclosures approximately 151 dB SPL inside the vehicle, the 38 cm models comes to 154 dB at 100 liters!

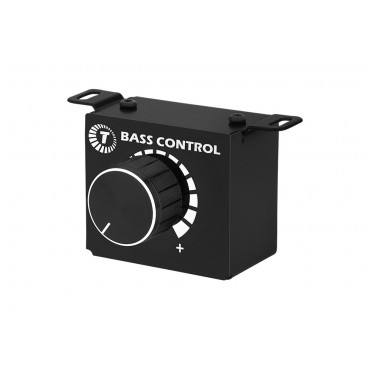

The Bass Control is a remote volume control for amplifiers. Its main purpose is to control Subwoofer volume in a practical way and in real time, as it can be fixed on the vehicle’s dashboard for easy access. With RCA audio inputs and outputs, it can be used with all models of head units and amplifiers with this type of connection. This is Taramps putting you in control.

Description

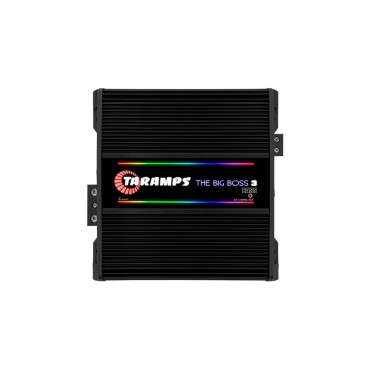

THE BIG BOSS 3 BASS is much more than an amplifier; it brings together the best technology available in terms of audio and design. With 108 RGB LED effects, it elevates your sound to an incomparable level and transforms your car into an audiovisual spectacle. The high technology in its construction and automatic multi-impedance system (0.5 to 2 Ohms) makes it an extremely versatile powerhouse. Furthermore, it is a robust and resistant product, designed for exceptional performance when used with subwoofers. Has a wide range of colors and light patterns that sync perfectly to the beat of your music. The Big Boss 3 Bass is an ideal choice for those looking for power, flexibility and style in their sound system.





Operation class
D

Number of Channels
01

Maximum power
Output Power / @14.4 VDC* 0.5 OHM: 3000W RMS 1 OHM: 3000W RMS 2 OHMS: 3000W RMS 4 OHMS: 1700W RMS

Input Sensitivity
4V ~0.2V

Frequency Response
8Hz ~ 200Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable

bass boost
Freq.: 35Hz ~ 60Hz Boost: 0 ~ +10dB

Efficiency
75%

Input Impedance
(PT) 10K Ohms

Output Impedance
0.5 ~2 Ohms

protection system
Output short-circuit, low/high supply voltage and Thermal protection

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
2.30A

Maximum music consumption
@14.4 VDC: 190A

Maximum consumption in sinusoidal signal
278A

Dimensions (WxHxD)
9.37" x 2.80" x 9.45" (238 x 71 x 240 mm)

Weight
6.60 lb (3.00 Kg)






Description
THE BIG BOSS 8 BASS is much more than an amplifier; it brings together the best technology available in terms of audio and design. With 108 RGB LED effects, it elevates your sound to an incomparable level and transforms your car into an audiovisual spectacle. The high technology in its construction and automatic multi-impedance system (0.5 to 2 Ohms) makes it an extremely versatile powerhouse. Furthermore, it is a robust and resistant product, designed for exceptional performance when used with subwoofers. Has a wide range of colors and light patterns that sync perfectly to the beat of your music. The Big Boss 8 Bass is an ideal choice for those looking for power, flexibility and style in their sound system.






Operation class
D

Number of Channels
01

Maximum power
Output Power / @14.4 VDC* 0.5 OHM: 8000W RMS 1 OHM: 8000W RMS 2 OHMS: 8000W RMS 4 OHMS: 4800W RMS

Input Sensitivity
4V ~ 0.2V

Signal to Noise Ratio
>90dB

Frequency Response
8Hz ~ 200Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable

bass boost
Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB

Efficiency
78% @ 0.5 Ohm | 82% @ 1 Ohm | 86% @ 2 Ohms

Input Impedance
10K Ohms

protection system
Output short-circuit, low/high supply voltage and Thermal protection

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
5.0A

Maximum music consumption
@14,4VDC: 356A @ 0.5 Ohm | 339A @ 1 Ohm | 323A @ 2 Ohms

Maximum consumption in sinusoidal signal
356A @ 0.5 Ohm | 339A @ 1 Ohm | 323A @ 2 Ohms

Dimensions (WxHxD)
9.37" x 2.80" x 20.16" (238 x 71 x 512 mm)

Weight
16.39 lb (7.45 Kg)

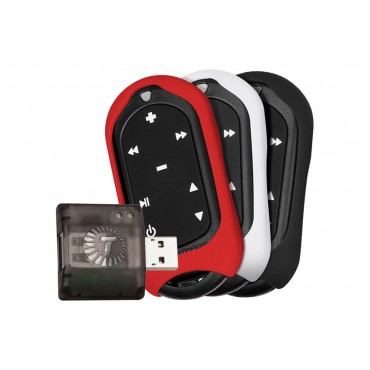

CONNECT CONTROL is a long distance remote control that can be adapted to most CD and DVD players on the market. It is a product with high technology that operates in radio frequency (RF), emulating the basic functions of the original infrared control of your device. It was developed to offer efficiency and high performance when controlling a device at a distance of 300m in the target area (open area). It is a control that is immune to interference, economical and does not allow the cloning of your codes.
Another important factor of CONNECT CONTROL is the new receiver base that is easy to install and developed for Players with front USB. This, in turn, is powered by the USB input itself which does not require a more advanced installation and with it connected you can still use its functionalities, as it has an input for you to connect your pen driver, when you press any key of the control, the base will receive these commands and send it to your player’s panel as if it were the original control. If your player has only a rear USB input, just plug it into a USB extension between the receiver base and your player, placing it next to the panel.



Power Supply Voltage
Receiver Base: 5VDC (USB-A) Transmitter (Control): 1.8 ~ 3.6V (Battery)

Maximum consumption
Receiver Base: 50mA (max.) Transmitter (Control): 7mA (Battery) Modulation: FSK Frequency: 433,5 Mhz Maximum Power: +10dBm

Dimensions (WxHxD)
Receiver Base: 1.40" x 0.57" x 1.73" Transmitter-Control: 1.44" x 0.45" x 3.01"

Weight
Receiver Base: 0.22lb Transmitter-Control: 0.22lb

EAN
7898556843287 (no cover) 7898556843331 (black) 7898556843348 (white) 7898556843393 (red)

Additional Information

Package Content: 01 - Control (transmitter) 01 - Taramps Customized Cord 01 - Base (receiver) 01 - Protective case (for color series)

Description

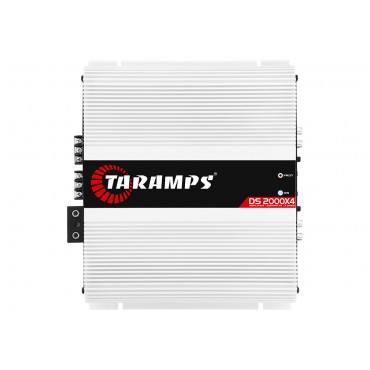

The DS 2000×4 is a Taramps multi-channel amplifier, carefully designed with the latest technology. It features 4 channels of 500 Watts RMS each, with maximum power of 2000 Watts RMS altogether, at 2 ohms and is suitable for any frequency, that is to say, it is FULL RANGE. Versatility, efficiency and quality in a single Taramps product.


Technical information




Operation class
D

Number of Channels
04

Maximum power
@ 14.4 VDC - 2 Ohms: 2000W RMS (4 x 500W RMS) @ 14.4 VDC - 4 Ohms: 1300W RMS (4 x 325W RMS) 2 Bridged Channels (2 x 1000WRMS) at 4 Ohms

Input Sensitivity
250mV

Signal to Noise Ratio
>86dB

Frequency Response
8Hz~20KHz (-3dB)

Crossover high pass (HPF)
90Hz (-12dB/8a) Fixed

Crossover low pass (LPF)
90Hz (-12dB/8a) Fixed

Input Impedance
18K Ohms

protection system
Output Overload

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
2.2A

Maximum music consumption
100A

Maximum consumption in sinusoidal signal
200A

Dimensions (WxHxD)
10,55" x 2,83" x 9,64" (268 x 72 x 245mm)

Weight
7,42lbs (3,37Kg)

EAN
7898556847902









Description

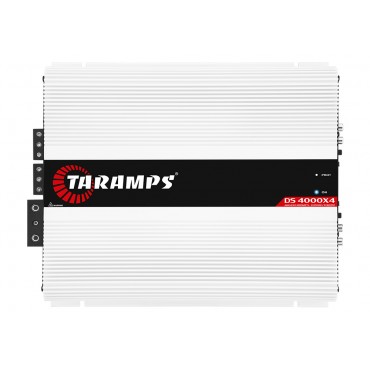

Designed with high technology, the DS 4000×4 is a versatile 4000 Watt amplifier spread out in 4 channels of 1000 Watts RMS that can be bridged. This incredible product is able to amplify naturally and with high quality the most varied types of sound systems, suiting to all musical styles. Another great new feature is the High level input with 4 individual channels and automatic activation, which makes it compatible with most head units on the market, including ORIGINAL HEAD UNITS AND MULTIMEDIA, without the need for adapters. In addition, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full). All this and more, so that your musical experience is even better.



Technical information



Operation class
D

Number of Channels
04

Maximum power
@ 14,4 VDC - 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 2 Ohms: 2400W RMS (4 x 600W RMS) 2 Bridged Channels 2 OHMS: (2 x 2000WRMS)

Input Sensitivity
(Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE)

Signal to Noise Ratio
>86dB

Frequency Response
8Hz~20KHz (-3dB)

Crossover high pass (HPF)
90Hz (-12dB/8ª) Fixed

Crossover low pass (LPF)
90Hz (-12dB/8ª) Fixed

protection system
Output Short Circuit

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
2.5A

Maximum music consumption
185A

Maximum consumption in sinusoidal signal
370A

Dimensions (WxHxD)
10.55" x 2.83" x 13.11" (268 x 72 x 333mm)

Weight
11.15lb (5,06Kg)

EAN
7898556849258





TECHNICAL INFORMATION



OPERATION CLASS
D

NUMBER OF CHANNELS
3

MAXIMUM POWER
@ 12.6 VDC: 800W RMS CH1/CH2 (2 x 200W RMS) 2 OHMS, CH3 (1 x 400W RMS) 4 OHMS

INPUT SENSITIVITY
250mV

SIGNAL TO NOISE RATIO
>88dB

FREQUENCY RESPONSE
CH1/CH2 100Hz ~ 25KHz10Hz ~ 100Hz (LPF = 100Hz)CH3 10Hz ~ 700Hz (LPF = 700Hz)10Hz ~ 25KHz (LPF = OFF)

CROSSOVER HIGH PASS (HPF)
(CH1 / CH2) 100Hz (-12dB/8ª) Fixed

CROSSOVER LOW PASS (LPF)
(CH3) 100Hz, 700Hz, OFF (-12dB/8ª) Selectable

INPUT IMPEDANCE
10K Ohms (RCA) and 1K Ohms (Wire)

OUTPUT IMPEDANCE
2 Ohms

PROTECTION SYSTEM
Output overload

MIN. SUPPLY VOLTAGE
9VDC

MAXIMUM POWER SUPPLY VOLTAGE
16VDC

CONSUMPTION AT REST
1.4A

MAXIMUM MUSIC CONSUMPTION
43A

MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
86A

DIMENSIONS (WXHXD)
6.81" x 2.05" x 8.94" (173 x 52 x 227mm)

WEIGHT
3.15lb (1,43kg)

EAN
7898556844956

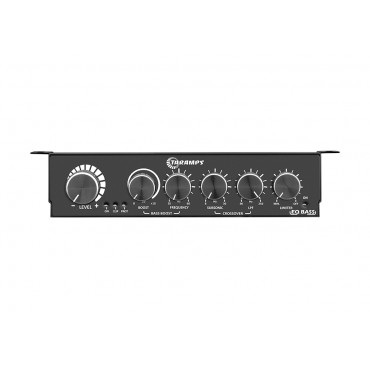

Have you ever thought about having all your amp settings at your fingertips? If so, Taramps has something hot for you now! The EQ Bass. Now you can control your bass volume AND all your amplifier settings in one single product, granting you with a full control of your sound system.
*This product comes with led monitoring cable.



requency response
10Hz to 250Hz

Signal to Noise Ratio
>100dB

Power Supply Voltage
9V to 16VDC

Dimensions (WxHxD)
7.67" x 1.65" x 3.14" (195 x 42 x 80mm)

Weight
0.79lb (0.360Kg)



Additional Information Rated Consumption (On): 151mA@12.6V Maximum Signal Input: 3Vac Limiter: 0dB to -27dB Boost: +10dBAdditional InformationRated Consumption (On): 151mA@12.6VMaximum Signal Input: 3VacLimiter: 0dB to -27dBBoost: +10dB

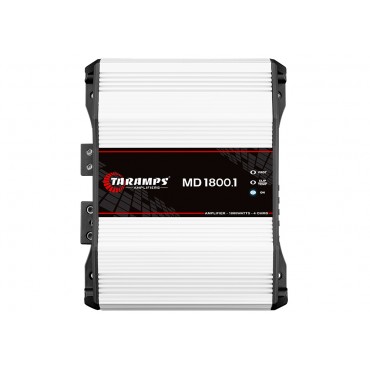

Technical information



Operation class
Classe D

Number of Channels
01

Maximum power
@ 12.6 VDC - 4 OHMS: 1800W RMS @ 12.6 VDC - 8 OHMS: 1050W RMS

Input Sensitivity
220 mV

Signal to Noise Ratio
>88dB

Frequency Response
10Hz ~ 20KHz (-3dB)

Crossover high pass (HPF)
10Hz ~ 80Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
80Hz ~Full (-12dB/8ª) Variable

bass boost
0 ~ 10.5dB (50Hz)

Thermal Management
Smart Cooler (fan controlled by temperature or audio, with 3 speeds)

Efficiency
84%

Input Impedance
10K ohms

Output Impedance
4 ohms

protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
1.5 A

Maximum music consumption
85 A

Maximum consumption in sinusoidal signal
170 A

Dimensions (WxHxD)
8.98" x 2.76" x 7.40" (228 x 70 x 188mm)

Weight
4.80lb (2,18Kg)

EAN
7898556844383

Description

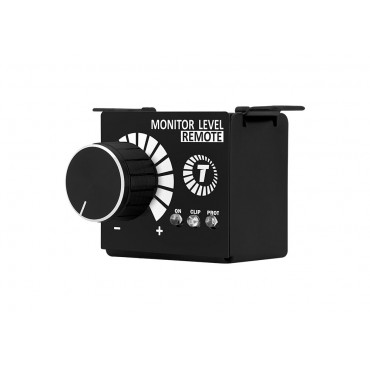

The Monitor Level Remote is an accessory developed exclusively for Taramps products compatible with this technology. Its main purpose is to provide practical, real-time control of the amplifier’s volume, and can be easily attached to the vehicle’s dashboard to keep it within reach. In addition, It monitors and indicates the operating conditions of the amplifier through the integrated LEDs: On, Clip and Protection. This is Taramps putting you in control.
*Compatible products are listed in “Additional Information”.



Technical information



Weight
- Monitor Level Remote only: 0.13lb (61 grams) - 5 meter cable only: 0.23lb (105 grams) - Monitor Level Remote + Cable: 0.36lb (166 grams)

EAN
7908706600278

Additional Information

-Comes with a 5 meter cable with RJ12 Plug; -Compatible only with Taramps products that have the indication “MONITOR LEVEL REMOTE” on the frontal and/or side sticker of the amplifier; * Compatible Taramps products: Smart 8, Smart 8 Bass, T12.000 Chipeo, The Big Boss 3 Bass, The Big Boss 5 Bass, The Big Boss 8 Bass and HD 3000. -Not compatible with products from other manufacturers; -Not compatible with Taramps products with the description “Monitor” – If used with these products, only the Monitor function will work (ON, CLIP and PROT), disabling the Level function.





Description

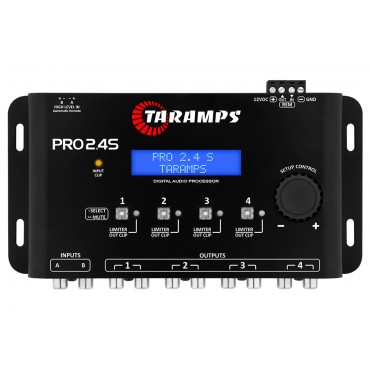

The Pro 2.4S is a 4-channel digital audio processor. Designed with the highest technology, it offers vital features and adjustments for car audio, such as: crossover with multiple filters, 15-band graphic equalization, 12 pre-defined equalizations, parametric equalization, alignment, routing, phase inversion, limiter, input and output clip indicator, remote signal output to activate amplifiers, audio generator, among many others. In addition, it features an audio input via RCA and also a high level input, allowing use with conventional and original head units (eg multimedia without RCA output). Another advantage of this product is the anti-puff system, which prevents those infamous pops when turning the sound on and off. All this and much more to keep your sound system always tuned, aligned and with the quality you deserve.



Technical information



Input impedance
10K Ohms (RCA) 50 Ohms (HIGH LEVEL)

Output impedance
47 Ohms

Maximum input level
5,9Vpp 2,1V RMS (RCA) 28Vpp 10V RMS (HIGH LEVEL)

Maximum output level
5.9Vpp 2.1V RMS

Frequency response
10Hz to 22KHz

Total Harmonic Distortion
0.01%

Signal to Noise Ratio
>90dB

Crosstalk (separation between channels)
>80dB

Input Channels
2

output channels
4

Routing
A,B,A+B

General gain
-80 to 0dB

Output gain
-45 a +15dB

crossover
HPF (Variable): Variable Filters LPF (Variable): Variable Filters

Linkwitz Rilley Filters
-12,-18,-24,-36,-48dB/Octave

Butterworth filters
-6,-12,-18,-24,-36,-48dB/Octave

Alignment
8,0 mS (272cm)

Phase
0 / 180º

Languages
Portuguese, English and Spanish

Memory Positions
Factory default + 3 assignable positions

POWER SUPPLY VOLTAGE (POWER)
10 to 16VDC

Weight
0.99lb (0,450 Kg)

EAN
7898556847919

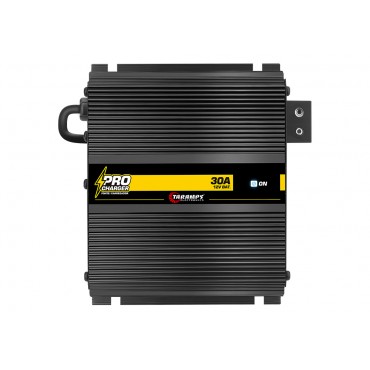

Thinking of strength and safety in a single product, the brand of sources and battery chargers of the Taramps Group developed the PRO CHARGER 30A. With a power of up to 30 amps, it is the most modern and efficient for high power energy converters for recharging batteries and powering the automotive sound system. With protection against short circuit at the output and current control, it is automatic bivolt and has a fixed output voltage of 14.4VDC. So it is the best cost-benefit of the automotive sound industry.



AC input voltage
Bivolt Automatic (127 / 220VAC)

AC Input Voltage 127V
100~140V AC

AC Input Voltage 220V
190~240V AC

Maximum Output Current
30A

Maximum Output Power Rating
430W

Efficiency
90%

Maximum Input Current 127V
5.6A

Maximum Input Current 220V
4.0A

Maximum Float
30A @14.2V: <8%

Internal Fuse
10A

Output Voltage
14.4V ± 2%

Dimensions (WxHxD)
6.54" x 2" x 5.71" (166 x 51 x 145 mm)

Weight
2.35 lbs (1,07 Kg)

EAN
7898556844864

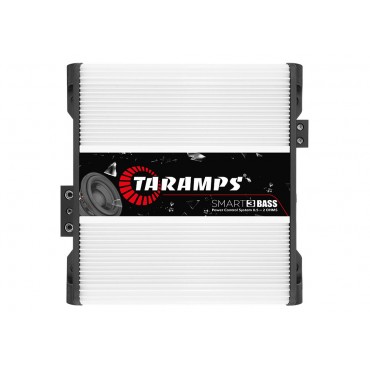

The Smart 3 BASS is yet another innovation for automotive sound systems from Taramps. The exclusive Power Control System technology now specific for subwoofers, ensuring even more quality at low frequencies with more security by monitoring the entire operation of the amplifier. It’s an single channel multi-impedance amplifier, that is, it delivers the 3000 WRMS of power in any impedance between 0.5 and 2 ohms. It has an indicative logo that you already know, robust power input, supporting cables from 21mm to 50mm and output for CLIP monitor. Immerse yourself in this new experience with the Taramps Group!



Operation class
Class D

Number of Channels
01

Maximum power
@ 14.4 VDC - 0.5 Ohm: 3000 Watts RMS @ 14.4 VDC - 1 Ohm: 3000 Watts RMS @ 14.4 VDC - 2 Ohms: 3000 Watts RMS @ 14.4 VDC - 4 Ohms: 1700 Watts RMS

Input Sensitivity
4V ~ 0.2V

Signal to Noise Ratio
>90dB

Frequency Response
8Hz ~ 200Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable

bass boost
Freq.: 35Hz ~ 60Hz Boost: 0 ~ +10dB

Efficiency
75%

Input Impedance
10K ohms

Output Impedance
0.5 ~2 ohms

protection system
Output short-circuit low/high supply voltage thermal protection

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
17 VDC

Consumption at rest
1.10A

Maximum music consumption
190A

Maximum consumption in sinusoidal signal
278A

Dimensions (WxHxD)
9.37" x 2.80" x 9.45" (238 x 71 x 240mm)

Weight
6.60lb (3Kg)

EAN
7898556847414
