16,5 cm (6.5") Kickbass Speakers
100 Watts RMS, 200 Watts max.
Frequency Response 59 - 5000 Hz
Impedance 3 Ohms
Polypropylene Cones
Protection Grilles
Installation Depth 60 mm
Installation Opening 144 mm

Any chain is only as strong as its weakest link. This also applies to audio components in vehicles. Therefore, if you want to upgrade your system with amplifiers, you are well advised to ensure a good signal connection to the original radio.

The DLC signal converters developed in Germany are specialized in two things: problem-free and error-free integration into the factory systems of modern vehicles and an absolutely high signal fidelity. The heart of this is the specially developed, continuously regulated, symmetrical HD power supply. After all, every audio circuit is only as good as its power supply unit, since the audio signal always consists of 100% of the operating voltage. Together with the use of high-quality operational amplifiers, the ESX developers have succeeded in achieving excellent sound quality. The result is not only evident in the gigantic signal-to-noise ratio of an incredible 122dB and an ultra-low distortion factor of 0.002%, but also in the linear frequency response of 5-57,000 Hz at -1db.

Another special feature of the converter is that it can be connected directly to OEM amplifiers. Even outputs of over 400 watts RMS (> 40V RMS) are no problem. The improved, switchable diagnosis system EPS PRO allows a selection between 10, 150 or 600Ω at the entrance, in order to adapt even problematic vehicles such as BMW or VW. In addition, both models have a clipping display, start-stop capability, auto turn-on and remote out.

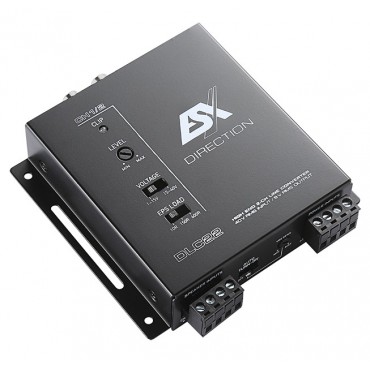

DLC22

2-Kanal "High/Low Level" Konverter mit EPS PRO


Infinitely regulated symmetrical HD power supply
High input up to 400 watts (40V RMS) per channel
Input voltage switchable 1-15V / 15-40V
2-channel Cinch low output up to 9V RMS
Frequency response 5 Hz - 57 kHz (+0 dB, -1dB)
EPS PRO (switchable) 10Ω - 150Ω - 600Ω
Auto Turn On (DC Offset / Signal) Vox adjustable
generates 12V remote output, Clipping LED
Floating ground jumper
Dimensions: 100 x 28 x 110 mm

Any chain is only as strong as its weakest link. This also applies to audio components in vehicles. Therefore, if you want to upgrade your system with amplifiers, you are well advised to ensure a good signal connection to the original radio.

The DLC signal converters developed in Germany are specialized in two things: problem-free and error-free integration into the factory systems of modern vehicles and an absolutely high signal fidelity. The heart of this is the specially developed, continuously regulated, symmetrical HD power supply. After all, every audio circuit is only as good as its power supply unit, since the audio signal always consists of 100% of the operating voltage. Together with the use of high-quality operational amplifiers, the ESX developers have succeeded in achieving excellent sound quality. The result is not only evident in the gigantic signal-to-noise ratio of an incredible 122dB and an ultra-low distortion factor of 0.002%, but also in the linear frequency response of 5-57,000 Hz at -1db.

Another special feature of the converter is that it can be connected directly to OEM amplifiers. Even outputs of over 400 watts RMS (> 40V RMS) are no problem. The improved, switchable diagnosis system EPS PRO allows a selection between 10, 150 or 600Ω at the entrance, in order to adapt even problematic vehicles such as BMW or VW. In addition, both models have a clipping display, start-stop capability, auto turn-on and remote out.

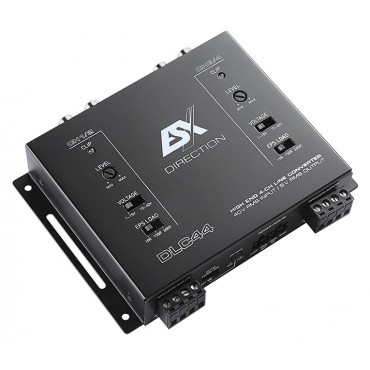

DLC44

4-Channel High/Level Converter with EPS PRO


Infinitely regulated symmetrical HD power supply
High input up to 400 watts (40V RMS) per channel
Input voltage switchable 1-15V / 15-40V
4-channel RCA low output up to 9V RMS
Frequency response 5 Hz - 57 kHz (+0 dB, -1dB)
EPS PRO (switchable) 10Ω - 150Ω - 600Ω
Auto Turn On (DC Offset / Signal) Vox adjustable
generates 12V remote output, 2 x Clipping LED
Floating ground jumper
Dimensions: 100 x 28 x 140 mm

Massive Aluminum Heat sink with Acrylic Inlays and flush-mount Diamond Cut-Logo
Bottom panel with sturdy Mounting Brackets
3-way Protection Circuit
MOSFET PWM-Power Supply
Compact Bass Remote

5-Channel Class A/B Analog Amplifier
1500 Watts Max. Output Power

4 x 120/200 Watts max. @ 4/2 Ohms
+ 1 x 400/700 Watts max. @ 4/2 Ohms
4 x 60/100 Watts RMS @ 4/2 Ohms+ 1 x 200/350 Watts RMS @ 4/2 Ohms
HPF 32-2000 Hz, LPF 32-300 Hz
Subsonic 10 Hz - 60 Hz
Bass Boost 0 - 12 dB @ 40 Hz - 60 Hz
RCA Inputs
Compact Bass Remote
Dimensions: 220 x 51 x 412 mm
Efficiency up to 61%

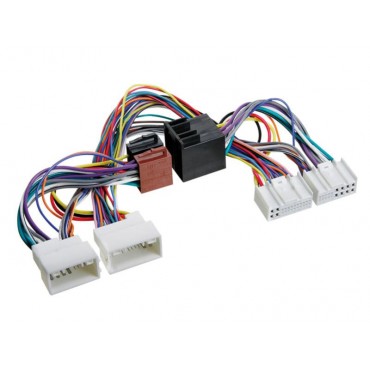

ESX plug&play Connector Cable PPK 8 FOW ESX XE AMPLIFIERS



For Hyundai and Kia, e.g.:




• Hyundai:• IX35 (10 and up) • I40 (11 and up)


• Sonata (04-10) • Tucson(05-10)




• Kia:• Rio (05-11) • Sorento (07-09) • Sportage (04-10)


• Carnival(03-11)

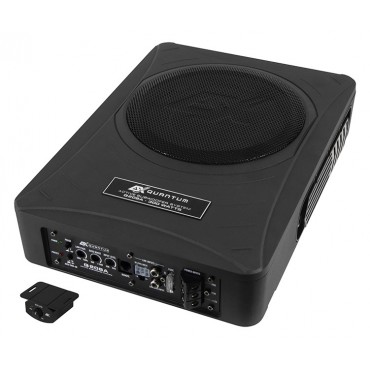

2 lateral Passive Woofers
Aluminum Enclosure
Integrated Class A/B amplifier
1 x 150 Watts RMS, 1 x 300 Watts MAX
LPF 50-150 Hz, Bass Boost 0-18dB @ 45 Hz
Phase Switch 0/180°, Subsonic Filter 20 Hz fixed
RCA Inputs, Auto Turn-On Function, High Level Inputs
Bass Remote Controller
Dimensions: 249 x 78 x 346 mm


• Advanced Class D technology with very high efficiency
• Selected and audiophile tuned components
• Massive aluminum heat sink
• Heavy lateral die-cast parts
• High Level Inputs with Error Protection System
• Auto Turn-On, Start/Stop Ready
• MOSFET PWM-Power Supply, 3-way Protection Circuit
• Compact Bass Remote
4-Channel Class D Digital Amplifier
1200 Watts RMS Output Power

4 x 200/300 Watts RMS @ 4/2 Ohms
2 x 600 Watts RMS @ 4 Ohm bridged
HP 50-5000 Hz (CH1/2), HP 10-500 Hz (CH3/4)
LP 50-5000 Hz (CH3/4), Copy-Mode CH3/4 > CH1/2
Bass-Boost 0-12 dB, Bandpass Mode, Input Mode
High Level Inputs, Auto Turn-On Function
Compact Bass Remote
Dimensions: 280 x 46 x 165 mm
Efficiency up to 84%

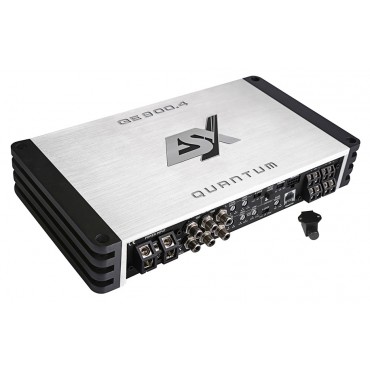

QE900.4

4-Channel Class D Digital Amplifier
900 Watts RMS Output Power


4 x 150/225 Watts RMS @ 4/2 Ohms
2 x 450 Watts RMS @ 4 Ohm bridged
HP 50-5000 Hz (CH1/2), HP 10-500 Hz (CH3/4)
LP 50-5000 Hz (CH3/4), Copy-Mode CH3/4 > CH1/2
Bass-Boost 0-12 dB, Bandpass Mode, Input Mode
High Level Inputs, Auto Turn-On Function
Compact Bass Remote
Dimensions: 280 x 46 x 165 mm
Efficiency up to 84%
• Advanced Class D technology with very high efficiency
• Selected and audiophile tuned components
• Massive aluminum heat sink
• Heavy lateral die-cast parts
• High Level Inputs with Error Protection System
• Auto Turn-On, Start/Stop Ready
• MOSFET PWM-Power Supply, 3-way Protection Circuit
• Compact Bass Remote

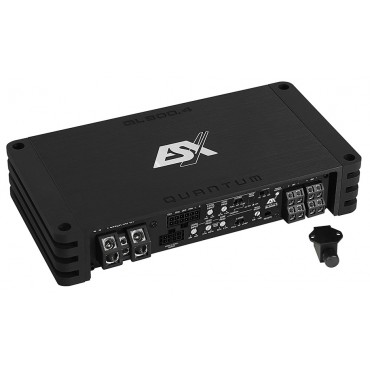

QL800.4

4-Channel Class D Digital Amplifier
800 Watt RMS Output Power


4 x 125/200 Watts RMS @ 4/2 Ω
2 x 400 Watts RMS @ 4 Ω bridged
HP 50-5000 Hz (CH1/2), HP 10-500 Hz (CH3/4)
LP 50-5000 Hz (CH3/4), Copy-Mode CH3/4 > CH1/2
Bass-Boost 0-12 dB, Bandpass Modus, Input Mode
High Level Inputs, Auto Turn-On Function
Compact Bass Remote
Dimensions: 226 x 43 x 120 mm
Efficiency up to 86%
• Advanced Class D technology with very high efficiency
• Selected and audiophile tuned components
• Massive aluminum heat sink
• Heavy lateral die-cast parts
• High Level Inputs with Error Protection System
• Auto Turn-On, Start/Stop Ready
• MOSFET PWM-Power Supply, 3-way Protection Circuit
• Compact Bass Remote

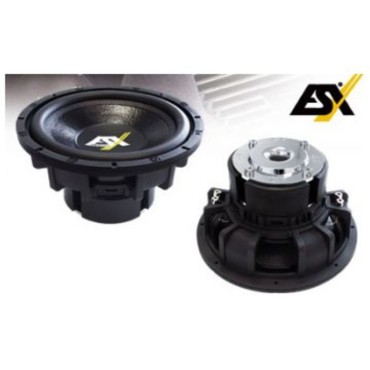

QM-12
12 "(30 cm) Subwoofer
800 Watt RMS, 2 + 2 Ohm Impedance
76 mm (3 ") coi
lmounting depth 163 mm
baffle opening 291 mm
ø / mm 322
Xmax / mm 36
SD / qcm 500
Mms / g 176
Re / Ohm 2 + 2
Fs / Hz 22
Qms 3.92
Qes 0.36
Qts 0.33
VAS / L 104
SPL / db 88
Le / mH 2.5
VC / mm 76
Watt / RMS 800

16,5 cm (6.5") Kickbass Speakers (Pair)

Power Rating 125/250 Watts RMS/max.Impedance 4 Ohms
Frequency Range 55 - 5000 Hz
30 mm Voive Coils
16,6 oz. (0,47 kg) Magnet Drivers
Protection Grilles
Installation Depth: 63 mm
Installation Opening: 144 mm

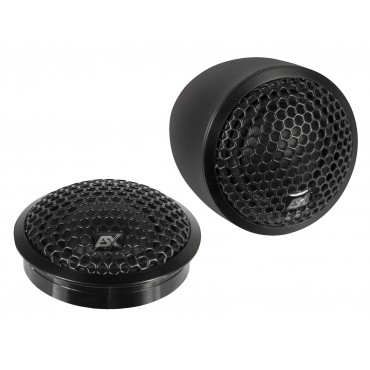

The QUANTUM QXE6.2TV2 silk dome neodymium tweeter as a V2 version is also a completely new development. A look at the measurement protocol reveals the potential of this extremely good 25 mm neodymium tweeter: This shows a frequency response that looks as if it had been drawn with a ruler! Incredibly linear up to well over 22,000 Hz, this tweeter plays with absolute confidence and playful ease. The grille can be unscrewed together with the housing using a metric thread and significantly reduces the space required (e.g. for the mirror triangle). A housing made of ABS is included in the scope of delivery for surface use. Including 6 dB cable crossover.
Specifications
25 mm (1") Silk Dome Neodymium Tweeters
Power Rating 125 Watt/RMS, 250 Watt/Max.
Frequency Range 3500 - 24000 Hz
Impedance 4 Ω
Screwable Tweeter Brackets for flexible Installation
Built-in and Surface Mount Housings
6 dB Cable Crossovers
Installation depth 9 mm
Installation diameter 44 mm



SXE250.2 2-Channel Class A/B Analog Amplifier
The new SIGNUM SXE series is visually inspired by the successful HORIZON HXE series, but already shows with the massive connection terminals and the noble aluminum end panels that it plays a class higher. The new amplifiers are also the first choice in terms of sound: The high-quality NE5532 operation amplifiers in the input section ensure the finest resolutions over the entire frequency range and guarantee lowest distortion values. The amps were also upgraded with the high-level inputs with Auto Turn-On Function; they are equipped with the “Error Protection System” (EPS), so when connected to OEM factory radios no functions are impaired or error messages are written to the vehicle memory.
Features


Aluminum Heatsink with Acrylic Inlay
Flush-mount Diamond Cut-Logo
Aluminum Frames on the Endpanels
Massive Connection Terminals
Bottom Panel with sturdy Mounting Brackets





High Level Inputs with Error Protection System (EPS)
Auto Turn-On Function via High Level Inputs
MOSFET PWM Power Supply, 3-Way Protection Circuit
Compact Bass Remote Controller







Specifications
2-Channel Class A/B Analog Amplifier
2 x 150/250 Watts RMS @ 4/2 Ω
1 x 500 Watts RMS bridged @ 4 Ω
HPF 10-250 Hz
LPF 50-250 Hz
Bass Boost 0-12 dB
Bandpass Mode
Dimensions 220 x 53 x 360 mm
Efficiency up to 62%


Downloads
Owner's Manual

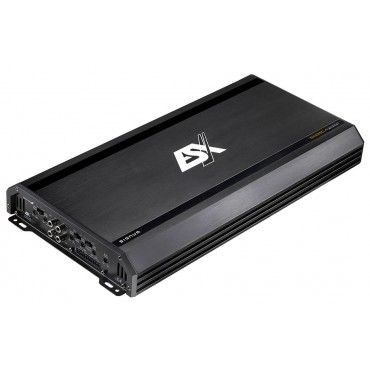

4-Channel Class A/B Analog Amplifier

Aluminum Heat sink with Acrylic Inlays and flush-mount Diamond Cut-Logo
Aluminum Frames on the end panels
Massive Terminals
Bottom panel with sturdy Mounting Brackets
High Level Inputs with Error Protection System
Auto Turn-On via High Level Inputs
MOSFET PWM-Power Supply, 3-way Protection Circuit


2000 Watts Max. Output Power

4 x 300/500 Watts max. @ 4/2 Ohms
2 x 1000 Watts max. bridged @ 4 Ohms
4 x 150/250 Watts RMS @ 4/2 Ohms
2 x 500 Watts RMS bridged @ 4 Ohms
2 x HPF 10-250 Hz, LPF 50-250 Hz
Bass-Boost 0-12 dB, Bandpass Mode
High Level Inputs, Auto Turn-On
Dimensions: 220 x 53 x 460 mm
Efficiency up to 62%

Aluminum Heat sink with Acrylic Inlays and flush-mount Diamond Cut-Logo
Aluminum Frames on the end panels
Massive Terminals
Bottom panel with sturdy Mounting Brackets
High Level Inputs with Error Protection System
Auto Turn-On via High Level Inputs
MOSFET PWM-Power Supply, 3-way Protection Circuit

The new SIGNUM SXE series is visually inspired by the successful HORIZON HXE series, but already shows with the massive connection terminals and the noble aluminum end panels that it plays a class higher. The new amplifiers are also the first choice in terms of sound: The high-quality NE5532 operation amplifiers in the input section ensure the finest resolutions over the entire frequency range and guarantee lowest distortion values. The amps were also upgraded with the high-level inputs with auto turn-on; they are equipped with the “Error Protection System” (EPS), so when connected to OEM factory radios no functions are impaired or error messages are written to the vehicle memory. All models are equipped with bandpass filters and the 1 ohm stable, high-performance Class D mono blocks offer additionally a phase controller and the master/ slave option for linking two identical amps including a very small, easy-to-install cable remote control for the bass level. Further models of the series are in planning.
Mono Class D Digital Amplifier
1200 Watts Max. Output Power

1 x 300/450/600 Watts RMS @ 4/2/1 Ohms
LPF 40-150 Hz, Subsonic 10-35 Hz
Bass-Boost 0-12 dB, Phase Shift 0-180°
High Level Inputs, Auto Turn-On
Master/Slave Mode, Bass-Remote Controller
Dimensions: 220 x 53 x 268 mm
Efficiency up to 88%



Aluminum Heat sink with Acrylic Inlays and flush-mount Diamond Cut-Logo
Aluminum Frames on the end panels
Massive Terminals
Bottom panel with sturdy Mounting Brackets
High Level Inputs with Error Protection System
Auto Turn-On via High Level Inputs
MOSFET PWM-Power Supply, 3-way Protection Circuit
Master/Slave Link Mode
Compact Bass Remote
