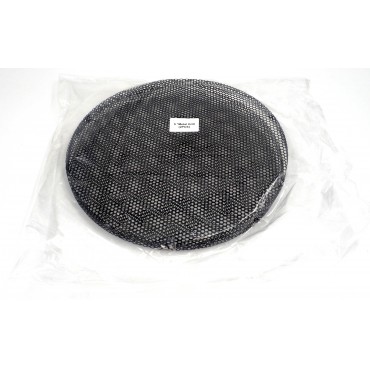

Σκληρή Μεταλική σίτα για 8" μεγάφωνο με μεγάλα ανοίγματα
Χωρίς πλαστικό πλαίσιο

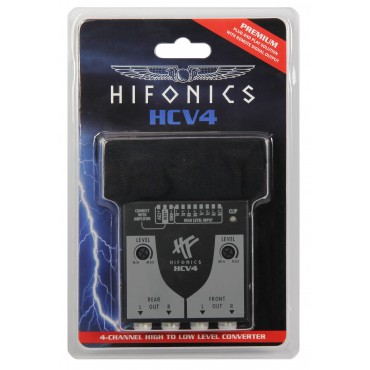

Suitable for all car radios - ideal for upgrading original factory sound systems: 4-Channel High-Low signal converter (front & rear), easy plug & play installation, built up with the latest SMT technology for maximum reliability, generates a turn-on-signal (remote) for amplifiers, Level controller for front & rear with clipping LED, Protection circuit against voltage returns, no interferences and switching noises are audible thanks to the full balanced input circuit with optimized signal paths, very low quiescent current, incl. velvet bag as installation protection.
4-Channel "High To Low Level" Signal Converter
Operating voltage 10 - 16V
Signal to Noise Ratio > 95 dB
Slew Rate 9V/µS
Channel Separation 80dB
Transmission frequency 5 Hz - 60 KHz (+/-1 dB)
Idle current < 10 mA @ 14,4 V
4 x RCA Output (unbalanced) 2,36 V/RMS
4 x High Level Input
Auto Turn-On
Dimensions 62 x 70 x 21mm

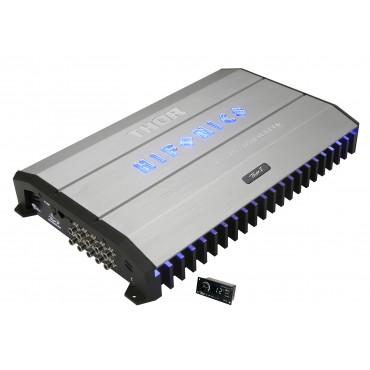

Class A/B & D Hybrid 5-Channel Amplifier with 8-Channel DSP Processor
Features


8-Channel DSP Processor 32bit / 192 kHz
Remote Controller with LCD Display for Master Volume, Subwoofer Level, Input Mode, Preset Selection
Screw-Type RCA Jacks
Illuminated Logo Badge (blue or white)
Laterally Blue Illuminated Heatsink Fins
Blue Terminal Illumination
Heavy Die-Cast Frames
Low-Noise Input OP-Amps (9V/µS Slew-Rate)
Double-Sided PC-Board





M-CONTROL 2 DSP Software for Windows™
10 storable Presets
6 x 31-Band EQ 20~20.000 Hz
2 x 11-Band EQ 20~200 Hz
6~48 db/Oct. Crossovers HPF/BPF/LPF
Time Delay 0~15 ms/0~510 cm
Phase Shift 0/180°







Specifications
Class A/B & D 5-Channel Amplifier with 8-Channel DSP Processor
Class A/B: 4 x 75/125 W/RMS @ 4/2 Ω
Class D: 1 x 250/450/650 W/RMS @ 4/2/1 Ω
6 x RCA Input
2 x RCA AUX Input
2 x RCA Output
1 x USB Port
Optical Input (stereo PCM 2.0)
Dimensions: 255 x 62 x 415/455 mm


Downloads
Owner's Manual
DSP SoftwareDSP Software Presentation
Test Review







600 watts x 2 chan. @ 4 Ohms 1100 watts x 2 chan. @ 2 Ohms 1600 watts x 2 chan. @ 1 Ohm 2000 watts x 1 chan. @ 4 Ohms 3200 watts x 1 chan. @ 2 Ohms

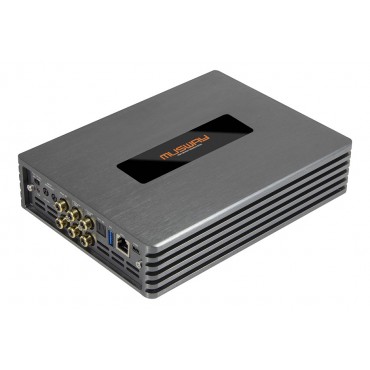

The new M4+v3 DSP amplifier can be considered as the little brother of the M6 model. The only difference: The M4+ is coming with four amplified speakers, but still offering more power per channel than the larger M6. Both models also share the very compact dimensions, which could be achieved thanks to its cleverly designed 4-way cladded circuit-board. The newly engineered Class D technology is particularly immune to EMC interference, which is virtually indispensable in today‘s electronic-packed vehicles.


A key-premise to enjoy interference-free music while driving. With four bridged power outputs, each one providing 135 watts RMS per channel (2  Ω), the M4+v3 offers remarkable output power with a total of 540 watts RMS. With the included wiring harness, ISO plug and optional Plug + Play harnesses, the M4 + is perfect for tuning original 4-channel sound systems. Four additional DSP-tunable preamp outputs allow the integration of further amplifiers. Finally, the new M4+ amp also provides a high-level input with error protection system for trouble-free connection to OEM factory radios.

• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Separately controllable input sensitivity (Channel 1-6, AUX), Clipping LEDs
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles (BTS & BTA2) for Audio Streaming & App Control (optional)
• Digital remote control (DRC1) with OLED display for controlling various DSP functions (optional)
• QUICK CONNECT Terminal to connect all  MUSWAY 2 + 2 Ohms Subwoofer-Systems
M4+v3
4-CHANNEL CLASS D AMPLIFIER
WITH 8-CHANNEL DSP · 540 WATTS RMS

4 x 100/135 Watts RMS @ 4/2  Ω or
2 x 270 Watts RMS @ 4  Ω bridged
6 x High Level Input
6 x RCA Low Level Input*
2 x AUX/RCA Input, 1 x Optical Input/Stereo
4 x Loudspeaker Output amplified
4 x Pre-Amplifier Output/RCA (configurable via DSP)
Dimensions: 220 x 44 x 150 mm
* only with optional MPK-RCA6/MPK-RCA6-PP cable set


Downloads:






Owner's Manual


Test Review


DSP Software V3.3












Specifications

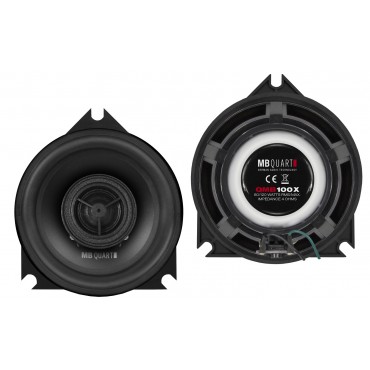

10 cm (4”) 2-Way Coaxial Speakers 2 x 60 Watts RMS2 x 120 Watts MAXImpedance 4 OhmsFrequency Response 75 - 22000 Hz100 mm Poly Cone Midwoofer20 mm Silk Dome Neodymium Tweeters (swiveling)Mounting Depth 43 mmMounting Diameter 92 mm Car-specific Connectors, Adapter Rings
https://mbquart.audiodesign.de/english/files/QMB100C_QMB100X_QMB200C-comp-list.pdf
Fits into various BMW E / F / G and MINI R Models.

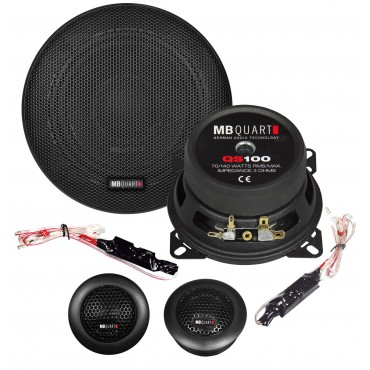

10 cm (4") 2-Way Component System
Specifications
2 x 100 mm Midrange Loudspeaker incl. Grille2 x 25 mm Silkdome Tweeters2 x 12dB Inline CrossoverPower Rating 70 Watts RMSPower Rating 140 Watts MAXImpedance 3 OhmsFrequency Range 73 Hz - 22000 HzInstallation Depth 47 mmInstallation Diameter 92 mm

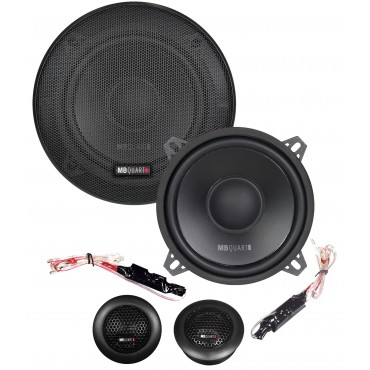

13 cm (5.25") 2-Way Component System
Specifications
2 x 130 mm Midbass Loudspeaker incl. Grille2 x 25 mm Silkdome Tweeters2 x 12dB Inline CrossoverPower Rating 80 Watts RMSPower Rating 160 Watts MAXImpedance 3 OhmsFrequency Range 64 Hz - 22000 HzInstallation Depth 50 mmInstallation Diameter 115 mm

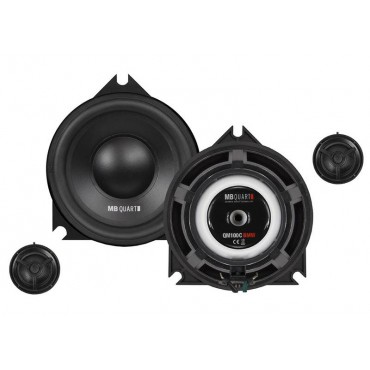

MBQuart QM-100C BMW V210cm 2-way component system for BMWDescription:- 10cm 2-way component system- Power handling 2 x 60/120 watts RMS/MAX.- Impedance 4 ohms- 2 x 25mm soft dome tweeters- 2 x 102mm polycone midrange drivers- Midrange driver: installation depth 43 mm Installation opening 92 mm- Suitable for: All BMW E and F modelsIncl. wiring, cable adapter and adapter ringsThe perfectly coordinated QUART MOBIL loudspeaker components for all current BMW vehicles of the E and F series offer, in addition to the very high-quality mid-range and woofers, very fine fabric tweeters with neodymium drive, which know how to convince with optimal radiation characteristics.

QXE8.2W

20 cm (8") Midbass Speakers (Pair)


Power Rating 125/250 Watts RMS/max.
Impedance 3 Ohms
Frequency Range 35 - 5000 Hz
Fiberglass Cones
30 mm voice coils with additional ventilation
Powerful N45 neodymium magnet drivers with high efficiency
Pole core with copper cap for impedance linearization
Low weight (542 g / pc.)
Installation Depth 57 mm
Installation Opening 182 mm
The QXE8.2W models complete the QUANTUM QXE loudspeaker series with flat basses, which, with a highly efficient magnet drivers and very stiff fiberglass cones, ensure rich bass tones. Suitable to enhance 2-Way Systems.



16,5 cm (6.5") Kickbass Speakers
100 W/RMS, 200 W/MAX, 4 Ω
Frequency Range 56 - 3000 Hz
Ø 143 mm, ‡ 58 mm

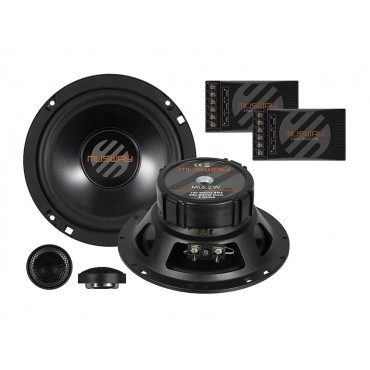

ML6.2C
16,5 CM (6.5”) 2-WAY COMPONENT-SYSTEM

ML6.2W (Pair)
16,5 cm (6.5“) Midbass Woofer
Power Rating RMS 100 Watts
Power Rating max. 200 Watts
Impedance 4 Ohms
Frequency Range 50 - 5000 Hz
Aluminum Cone
Mounting Depth 65 mm
Mounting Diameter Ø 143 mm
Outer Diameter Ø 166 mm

ML6.2T (Pair)
25 mm (1“) Tweeter
Power Rating RMS 100 Watts
Power Rating max. 200 Watts
Impedance 4 Ohms
Frequency Range 3200 - 30000 Hz
Silk Diaphragm Dome
Mounting Depth 13 mm
Mounting Opening Ø 49 mm
Outer Diameter Ø 58 mm

ML2X (Pair)
2-Way Crossover
Power Rating RMS 100 Watts
Power Rating max. 200 Watts
Crossover Frequency 3200 Hz
3-fold Tweeter Level Adjustment
Width 64 mm
Height 36 mm
Length 120 mm


Downloads:




Owner's Manual






With the brand new ML series, Musway presents the inexpensive “offshoots” of the MG loudspeakers. These are no less interesting, especially since many of the optimizing technologies from the expensive series were adopted in the design. First and foremost, the loudspeakers differ in the use of inexpensive steel baskets and optically less elaborate magnets. If you really good sound performance without the expensive optical finesse, which are invisible when installed, you will get your money's worth with the ML systems.

This system offers a 16.5 cm midbass with a robust steel basket in the low-midrange. The 25 mm long-stroke voice coil is perfectly cooled by the rear ventilation and the pole core drilling and is also well suited for high levels. The powerful 13 ounce magnetic driver, which is protected by a rubber boot, also contributes to this. The 16.5 cm midrange driver with the ultra-light and black anodized aluminum membrane is optimally equipped in terms of sound. Thanks to this high-quality and particularly light material, the cone is practically deformation-free and achieves a very high level of efficiency.

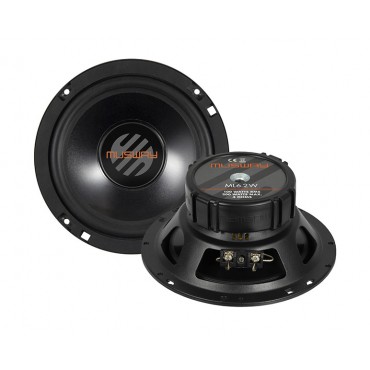

ML6.2W
16,5 CM (6.5”) KICKBASS-SPEAKERS (PAIR)

16,5 cm (6.5“) Midbass Woofer
Power Rating RMS 100 Watts
Power Rating max. 200 Watts
Impedance 4 Ohms
Frequency Range 50 - 5000 Hz
Aluminum Cone
Mounting Depth 65 mm
Mounting Diameter Ø 143 mm
Outer Diameter Ø 166 mm


Downloads:




Owner's Manual







5.0 Inch TFT-LCD Car Rear view Mirror DisplayAV dignal auto detect power on /off - Auto switch when reversing - AV input*2 - System: PAL / NTSC system(auto switch)  - Display Format: 16:9  - Power: =3W  - Power Supply: DC 12V / 24V  - Video: 2 AV input auto switching  - Contrast: 350 : 1  - Pixels: 480 x 272  - Environment Humidity: 10% ~ 90%  - Operating Temperature: -20 ~ +60?  - Storage Temperature: -40 ~ +85?  - Special anti-glaring glasses for eye sight protection, in position of the original rear view mirror  - Suitable Car: Universal  - Product Size: 285mm x 82mm x 20mm  - Net Weight: 285g  - Length of cable: Max. 15 inch  - Installation: Install on the dashboard, easy for installation and uninstallation.

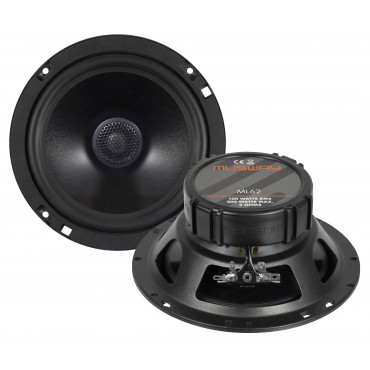

The new 16.5 cm 2-way coax speakers ML62 can be used to wonderfully complete any car audio system. These have full-fledged 20 mm fabric tweeters that are known for the best sound. The high-quality, black anodized aluminum membranes are also used in the ML62 coax models.
Specifications:
Power Rating RMS 100 Watts
Power Rating max. 200 Watts
Impedance 4 Ohms
Frequency Range 50 - 25000 Hz
20 mm (0.75“) Silk Dome Neodymium Tweeters
Aluminum Cones
Mounting Depth 65 mm
Mounting Diameter Ø 143 mm
Outer Diameter Ø 166 mm
