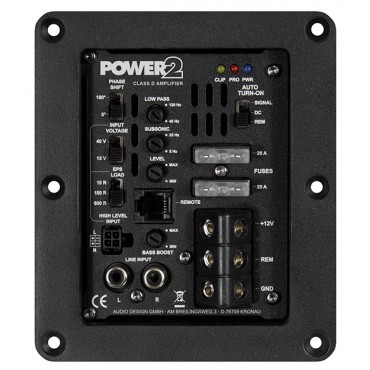

POWER2

Class D Active Module 2 Ohm for Subwoofer Enclosures


Efficient Class D Mono Amplifier
1 x 245 / 475 Watts RMS @ 4/2 Ω
Efficiency up to 84%
Lowpass 40-120 Hz @ 12 dB
Phase Switch 0°/180°
Bass Boost 0-6dB @ 45Hz
RCA Low Level Input
High Level Input
Auto Turn-On Function (DC or signal)
Start-stop capable, 5 sec./ up to 7 Volts
EPS PRO with 10R / 150R / 600R (switchable)
Input Sensitivity 15 or 40 Volts (switchable)
Triple Limiter Function, Clipping LED
Bass Level Remote Controller
Suitable for housings with Quick Connect terminals
Dimensions: 113 x 130 x 125mm
Mounting hole: 85 x 109 mm


Downloads:





Owner's Manual




Test Review






* Manufacturer's suggested retail price, changes and mistakes reserved




POWER4

Class D Active Module 4 Ohm for Subwoofer Enclosures


Efficient Class D Mono Amplifier
1 x 460 Watts RMS @ 4 Ω
Efficiency up to 84%
Lowpass 40-120 Hz @ 12 dB
Phase Switch 0°/180°
Bass Boost 0-6dB @ 45Hz
RCA Low Level Input
High Level Input
Auto Turn-On Function (DC or signal)
Start-stop capable, 5 sec./ up to 7 Volts
EPS PRO with 10R / 150R / 600R (switchable)
Input Sensitivity 15 or 40 Volts (switchable)
Triple Limiter Function, Clipping LED
Bass Level Remote Controller
Suitable for housings with Quick Connect terminals
Dimensions: 113 x 130 x 125mm
Mounting hole: 85 x 109 mm


Downloads:




Owner's Manual




Test Review





* Manufacturer's suggested retail price, changes and mistakes reserved

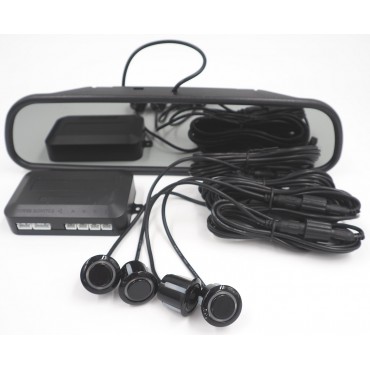

Monitor Mirror Display with 4 Parking Sensor

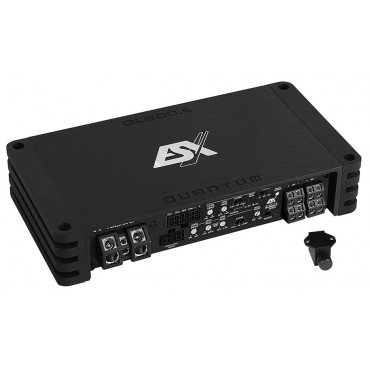

The brand new QUANTUM QL amplifiers in the ESX Portfolio are technically the small siblings of the QE models. Ideally, they can be used where the installation space is very tight. They are also emission-free and, like the large QE models, have the finest Class-D technology on board, which leaves nothing to be desired in terms of performance, sound quality and setting options. The optical appearance and dimensions the QL models share with the XE-DSP amps and the X-DSP processor, so that the combination of these devices enable high-quality DSP systems with a lot of power. The QUANTUM QL models are also coming with the space-saving remote control. The 24V versions can be operated in trucks and coaches with a 24 volt electrical system.

• Advanced Class D technology with very high efficiency
• Selected and audiophile tuned components
• Massive aluminum heat sink
• Heavy lateral die-cast parts
• High Level Inputs with Error Protection System
• Auto Turn-On, Start/Stop Ready
• MOSFET PWM-Power Supply, 3-way Protection Circuit
• Compact Bass Remote
4-Channel Class D Digital Amplifier
680 Watt RMS Output Power

4 x 100/170 Watts RMS @ 4/2 Ω
2 x 340 Watts RMS @ 4 Ω bridged
HP 50-5000 Hz (CH1/2), HP 10-500 Hz (CH3/4)
LP 50-5000 Hz (CH3/4), Copy-Mode CH3/4 > CH1/2
Bass-Boost 0-12 dB, Bandpass Modus, Input Mode
High Level Inputs, Auto Turn-On Function
Compact Bass Remote
Dimensions: 226 x 43 x 120 mm
Efficiency up to 86%

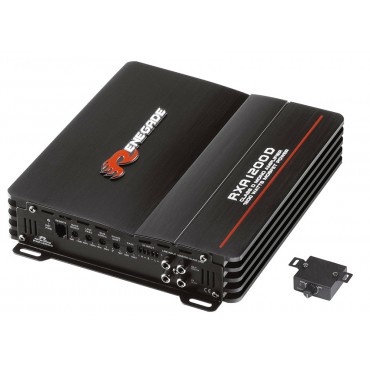

RXA1200D
Class D Digital Mono Amplifier

1 x 300 Watts RMS into 4 Ohms
1 x 450 Watts RMS into 2 Ohms
1 x 600 Watts RMS into 1 Ohm
1 x 600 Watts Max. into 4 Ohms
1 x 900 Watts Max. into 2 Ohms
1 x 1200 Watts Max. an 1 Ohm
MOSFET Power Supply
RCA In- and Outputs
Highlevel Inputs
1 Ohm Stability
Lowpass Filter 22 - 160 Hz
Subsonic Filter 10 - 35 Hz
Bass Boost 0 - 12 dB
Master/Slave function
Bass Remote Controller
Dimensions: 220 x 48 x 240/270 mm

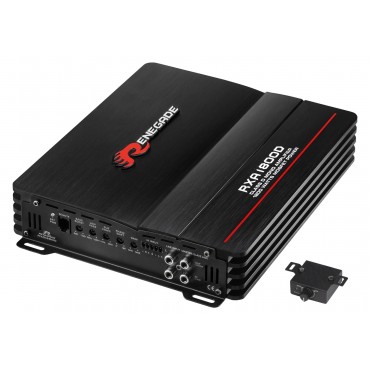

Specifications
1 x 400 Watts RMS @ 4 Ohms1 x 600 Watts RMS @ 2 Ohms1 x 900 Watts RMS @ 1 Ohms1 x 800 Watts Max. @ 4 Ohms1 x 1200 Watts Max. @ 2 Ohms1 x 1800 Watts Max. @ 1 Ohm 220 x 48 x 260/290 mm
Features
MOSFET Power SupplyRCA In- and OutputsHigh Level Inputs1 Ohm Stability Low Pass Filter 40 - 150 HzSubsonic Filter 10 - 35 HzBass Boost 0 - 12 dBPhase Shift 0 - 180°Master/Slave Function Bass Level Remote Controller


RXA800D

Class D Mono Amplifier

Technische Daten
1 x 200 Watts RMS @ 4 Ohms1 x 300 Watts RMS @ 2 Ohms1 x 400 Watts RMS @ 1 Ohms1 x 400 Watts Max. @ 4 Ohms1 x 600 Watts Max. @ 2 Ohms1 x 800 Watts Max. @ 1 Ohm 220 x 48 x 180/210 mm
Features
MOSFET Power SupplyRCA In- and OutputsHigh Level Inputs1 Ohm Stability Low Pass Filter 40 - 150 HzSubsonic Filter 10 - 35 HzBass Boost 0 - 12 dBPhase Shift 0-180° Bass Level Remote Controller

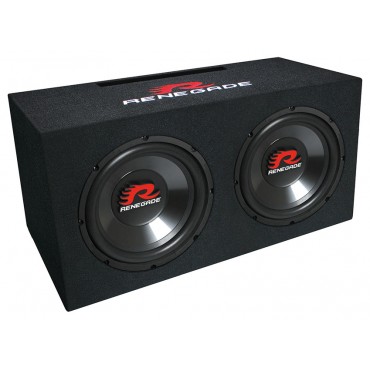

2 x 25cm (10") Dual Bassreflex System

Features:2 x 25 cm Subwoofer
50 mm Voice Coil
Load Capacity 500 Watts RMS, 1000 Watts Max.
Impedance 4 Ohms
92 dB SPL / 1 Watts / 1 m
Precious carpet covering with logo embroidery
Dimensions: 645 x 330 x 320/250 mm

Specifications
25 cm Subwoofer50 mm Voice Coil Power Rating 250 Watts RMSPower Rating 500 Watts Max.Impedance 8 Ohms Xmax +/- 13 mm Fs 35 Hz • Qts 0,65 VAS 35 L • 86 dB Installation Depth 10,7 cmInstallation Diameter 22,8 cm
Features
Robust Steel Basket24 oz. Magnet DriverPolypropylene Cone

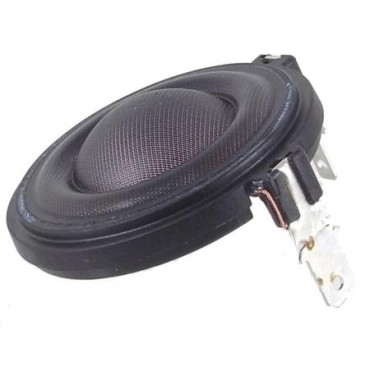

REPLACEMENT KIT D2004-VC-290065

REPLACEMENT KIT D2008/851200-290024

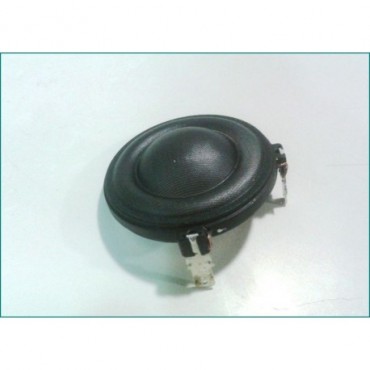

REPLACEMENT KIT D3004/6020XX-290066

Silver Series

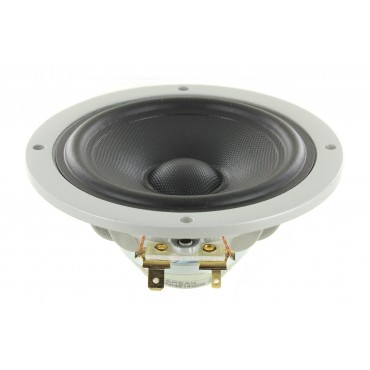

10 cm Midrange4 ohm, Neo Magnet, Coated Fiberglass Cone- Very wide Frequency Range- Coated NRSC Fibre Glass Cone (patent)- Compact Size, Neo magnet, Alu. Chassis- High Sensitivity 90dB / 2,83V- SBR Rubber Surround- Copper Cap on Pole Piece

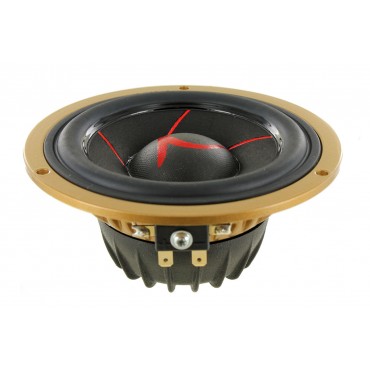

11 cm Midrange4 ohm, Neo Magnet, Sliced Cone- Sliced Paper Cone- Low-Loss Linear Suspension- High Grade Neo Magnet- Compact Neodymium Magnet System- Robust Alu Chassis- Protective Magnet Cup w. Grill over Pole Vent

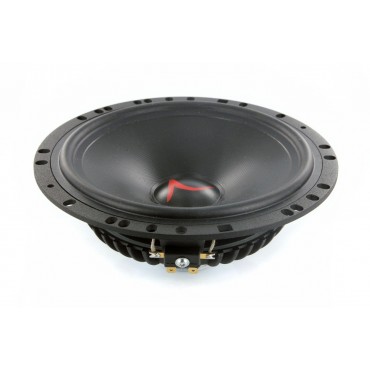

16 cm Midwoofer4 ohm, Coated Fiberglass Cone, Neo Magnet- Optimized for Car Use- Aluminium Die cast Basket- Black Coated NRSC Fibre Glass Cone- EURO-DIN mounting flange- Shallow mounting dimention- Low Loss Suspension, with Rubber Surround
