HIGHLIGHTS

	2-way coaxial loudspeakers + center speaker
	paper coated cone
	16.5 cm woofer
	25 mm silk high tone dome with neodymium drive
	incl. center speaker with 20/40 Watts RMS/MAX
	soft dust cap with embossed ETON logo
	developed and produced in Germany

PRODUCT DESCRIPTION

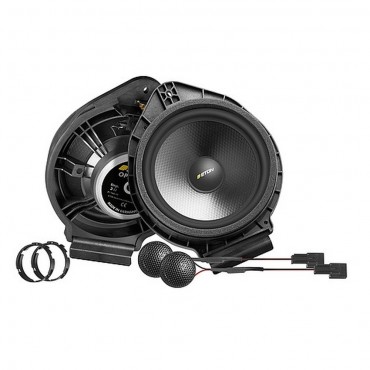

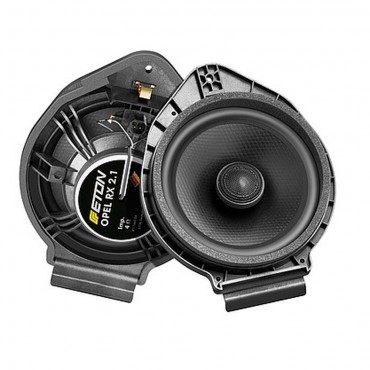

Plug and Play ήχεία Opel - Το σετ περιλαμβάνει διαιρούμενα ηχεία για τις πόρτες και κεντρικό κανάλι (ηχείο) για το ταμπλό τα οποία είναι ειδικά σχεδιασμένα για διάφορα οχήματα Opel.

Σχεδιάση και παραγωγή Γερμανίας!

TECHNICAL DATA

Loudspeakers
Color:	black
Cone material:	coated paper
Nominal power:	50 Watts
Max. power:	80 Watts
Impedance:	3 Ohms
Sensitivity:	89 dB (2,83V/1mtr.)

HIGHLIGHTS

PRODUCT DESCRIPTION

Plug and Play ήχεία Opel - Το σετ περιλαμβάνει διαιρούμενα ηχεία για τις πόρτες και κεντρικό κανάλι (ηχείο) για το ταμπλό τα οποία είναι ειδικά σχεδιασμένα για διάφορα οχήματα Opel.

Σχεδιάση και παραγωγή Γερμανίας!

TECHNICAL DATA

Loudspeakers
Color:	black
Nominal power:	80 Watts
Max. power:	90 Watts
Impedance:	4 Ohms
Sensitivity:	90 dB

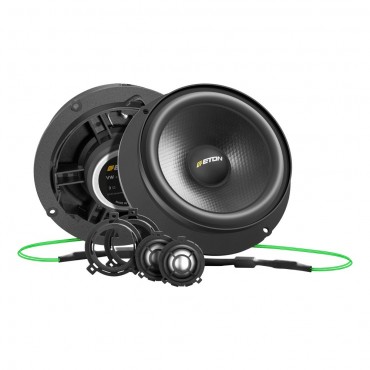

2 way 6,5″ (145cm) Διαιρούμενο Set UG VW POLO V F2.1 Μπροστά Διαιρούμενα εργοστασιακά ηχεία για VW 2 - way system with glass-paper membrane 25 mm aluminum tweeter Glass fiber reinforced polyamide basket Customized x-overs

Impedance	2 Ohm
Music power	80 W
Resonance frequency 1W	69 Hz
SPL	86,5 dB

ETON Ενεργό Subwoofer 6"

Specifications

Maximum output power  160W (80W x 2)
Rated power  100W (50W x2)
Output impedance  2Ω + 2Ω
Crossover frequency  50~100 Hz
S/N (A)  91dB
Maximum Current Consumption  10A
Sensitivity (Distortion level 1%)  RCA input 82mV-0.2V Speaker input 0.8V
Source Voltage  14.4V (10-16V)
Size (LxWxH)  290 mm x 202 mm x 77 mm
Weight (including accessories)  4.4 kg

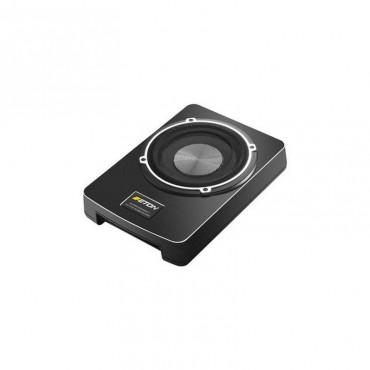

ETON Ενεργό Subwoofer 10"

Specifications

Maximum output power  350W (175W x 2)
Rated power  175W (85.5W x2)
Output impedance  2 Ω + 2Ω
Crossover frequency  50~100 Hz
S/N (A)  >60dB
Maximum Current Consumption  12A
Sensitivity (Distortion level 1%)  RCA input 50mV-0.2V Speaker input 0.8V
Source Voltage  14.4V (10-16V)
Size  36,9 x 27.5 x 8,2 cm
Weight (including accessories)  6,5 kg

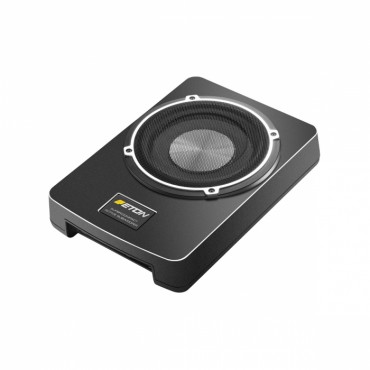

200 mm (8") long excursion active subwoofer in noble Aluminiun pressurized enclosure, closed construction. Reinforced Aluminiun cone with strong double voice coil driver with ferrite magnets impedance 2 x 2 Ohm integrated 160 W amplifier Hi- & Lo-Level Inputs, Low-pass filter 50 - 100 Hz, Phaseshift 0°/180°, Start-Stop function suitable, Auto Turn On function (SIG/DC), Bass level remote control. Dimensions 345 x 240 x 74 mm, 5 kg weight.

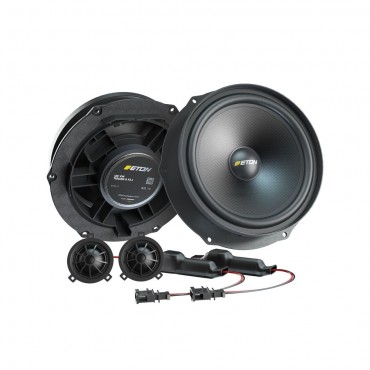

2 way 6,5″ (165mm) Διαιρούμενο Set UG TIGUAN II F2.1 Μπροστά OEM VW TIGUAN 2way Διαιρούμενο set

Bass / midrange	180 mm (7")
Tweeter	28 mm (1")
Impedance	2 Ohm
Music power	80 W
Sound pressure level	88 dB

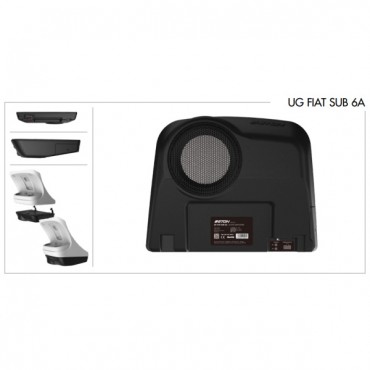

Eton UG Fiat SUB 6A Active subwoofer for Fiat Ducato Bass upgrade for motorhomes, campers and commercial vehicles: The Plug & Play active subwoofer UG FIAT SUB6A is compatible with the Fiat Ducato III (series 7 + 8), Peugeot Boxer II, Citroen Jumper II, Dodge Ram ProMaster and Iveco Daily (VI + VII). The active bass box is easy to install and fits perfectly under the center console in vehicles with a cup holder (without inductive charging cradle). The active subwoofer has a newly developed, patented die-cast aluminum housing. Special massive brackets made of aluminum enable easy assembly and disassembly of the bass box. The 15 cm/6" woofer inside the bass box is effectively powered by the integrated amplifier module with 160 watts: enough power for rich, crisp bass - even in larger vehicles. The bass driver works according to the down-firing principle, i.e. with the loudspeaker downwards pointing, to enable optimal radiation and even distribution of the bass waves.The active bass box is equipped with an integrated 50 - 100 Hz low-pass filter and a cinch input (low level input).For connection to factory radios without a REM output, the UG FIAT SUB6A via a high-level input (high level input) with auto turn on function (SIG detection). UG FIAT SUB 6A: amplifier module with 160 watt music load capacity, 15 cm / 6" woofer, impedance 2 x 2 ohms, housing dimensions (L x W x H): 370 x 294 x 78 mm, weight 5.7 kg. A bass level remote and mounting/mounting hardware are included. Key Features  Patented die-cast aluminum housing 15 cm/6" woofer installed using the downfire principle 160W amplifier module 2 x 2 ohm impedance Integrated low-pass filter 50 - 100 Hz High & Low level inputs Auto Turn On function (SIG detection) Wired level remote control and mounting material with mounting brackets included Specifications Music power handling - 160W Impedance - 2x 2Ohm Dimension (LxWxH) - 370 x 294 x 78 (mm) Weight - 5.7kg

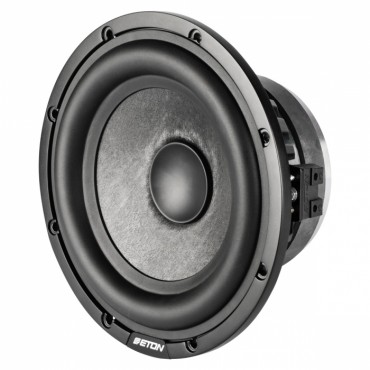

ETON GRAPHIT 8-2 - High end 20 cm (8") double voice coil subwoofer, bass driver for the car, bass speaker with carbon fleece sandwich membrane, 2 x 400 W, 2 x 2 ohms The very special subwoofer series for ETON's 40th anniversary: GRAPHIT - quality, first-class materials and know-how ®Made in Germany¯.   The innovative 20 cm (8") high-end double voice coil subwoofer GRAPHIT 8-2, impedance 2 x 2 ohms, is built for demanding music lovers who want precise bass performance and audiophile sound in their vehicle: impressive due to its extremely faithful and powerful sound Sound image as well as dry, contoured bass lines with incredible dynamic fireworks - a subwoofer for sound gourmets! The GRAPHIT 8-2 offers ETON-typical finesse and innovative detailed solutions: This includes the specially developed aluminum die-cast basket, which guarantees efficient cooling of the oscillation unit thanks to special ventilation openings. The extremely strong ferrite magnet and the large, resilient double voice coil provide the powerful drive. CNC-machined pole plates with a large core hole and additional ventilation openings enable the necessary vibration depth and support cooling. The newly developed, extremely torsion-resistant carbon fleece sandwich membrane, in combination with the heavy-duty long-stroke surround, ensures pulse-accurate music reproduction, razor-sharp precision and a dynamic that has and is so rare. The highly stable, coated aluminum dust protection dome dissipates heat thanks to its special coupling and thus increases the thermal resilience. Newly designed connection terminals with screw connections guarantee a secure connection. KEY FEATURES Graphite 8-2 - Specially developed die-cast aluminum basket with special ventilation - Extremely strong ferrite magnet, CNC-machined pole plates with large core hole and additional ventilation openings, large double voice coil - Carbon fleece sandwich membrane, heavy-duty long-stroke surround, highly stable, coated aluminum dust protection dome - Newly developed connection terminals with screw connection - Low installation depth - Development and production: Made in Germany   Technical data graphite 8-2 - Max. load capacity: 2 x 400 W - Nominal impedance: 2 x 2 ohms - Sensitivity sound pressure: 84 dB - Outside ø: 216 mm - Cutout ø: 186 mm - Installation depth: 98.6 mm

ETON GRAPHIT 10-4 - High end 25 cm (10") double voice coil subwoofer, bass driver for the car, bass speaker with carbon fleece sandwich membrane, 2 x 500 W, 2 x 4 ohms The very special subwoofer series for ETON's 40th anniversary: GRAPHIT - quality, first-class materials and know-how ®Made in Germany¯. The innovative 25 cm (10") high-end double voice coil subwoofer GRAPHIT 10-4, impedance 2 x 4 ohms, is built for demanding music lovers who want precise bass performance and audiophile sound in their vehicle: impressive due to its extremely faithful and powerful sound Sound image as well as dry, contoured bass lines with incredible dynamic fireworks - a subwoofer for sound gourmets! The GRAPHIT 10-4 offers ETON-typical finesse and innovative detailed solutions: This includes the specially developed die-cast aluminum basket, which guarantees efficient cooling of the oscillation unit thanks to special ventilation openings. The extremely strong ferrite magnet and the large, resilient double voice coil provide the powerful drive. CNC-machined pole plates with a large core hole and additional ventilation openings enable the necessary vibration depth and support cooling. The newly developed, extremely torsion-resistant carbon fleece sandwich membrane, in combination with the heavy-duty long-stroke surround, ensures pulse-accurate music reproduction, razor-sharp precision and a dynamic that has and is so rare. The highly stable, coated aluminum dust protection dome dissipates heat thanks to its special coupling and thus increases the thermal resilience. Newly designed connection terminals with screw connections guarantee a secure connection. KEY FEATURES Graphite 10-4 - Specially developed die-cast aluminum basket with special ventilation - Extremely strong ferrite magnet, CNC-machined pole plates with large core hole and additional ventilation openings, large double voice coil - Carbon fleece sandwich membrane, heavy-duty long-stroke surround, highly stable, coated aluminum dust protection dome - Newly developed connection terminals with screw connection - Low installation depth - Development and production: Made in Germany Technical data graphite 10-4 - Max. load capacity: 2 x 500 W - Nominal impedance: 2 x 4 ohms - Sensitivity sound pressure: 85 dB - Outside ø: 265 mm - Cutout ø: 235 mm

ETON GRAPHIT 8-4 - High end 20 cm (8") double voice coil subwoofer, bass driver for the car, bass speaker with carbon fleece sandwich membrane, 2 x 400 W, 2 x 4 ohms The very special subwoofer series for ETON's 40th anniversary: GRAPHIT - quality, first-class materials and know-how ®Made in Germany¯. The innovative 20 cm (8") high-end double voice coil subwoofer GRAPHIT 8-4, impedance 2 x 4 ohms, is built for demanding music lovers who want precise bass performance and audiophile sound in their vehicle: impressive due to its extremely faithful and powerful sound Sound image as well as dry, contoured bass lines with incredible dynamic fireworks - a subwoofer for sound gourmets! The GRAPHIT 8-4 offers ETON-typical finesse and innovative detailed solutions: This includes the specially developed aluminum die-cast basket, which guarantees efficient cooling of the oscillation unit thanks to special ventilation openings. The extremely strong ferrite magnet and the large, resilient double voice coil provide the powerful drive. CNC-machined pole plates with a large core hole and additional ventilation openings enable the necessary vibration depth and support cooling. The newly developed, extremely torsion-resistant carbon fleece sandwich membrane, in combination with the heavy-duty long-stroke surround, ensures pulse-accurate music reproduction, razor-sharp precision and a dynamic that has and is so rare. The highly stable, coated aluminum dust protection dome dissipates heat thanks to its special coupling and thus increases the thermal resilience. Newly designed connection terminals with screw connections guarantee a secure connection. KEY FEATURES Graphite 8-4 - Specially developed die-cast aluminum basket with special ventilation - Extremely strong ferrite magnet, CNC-machined pole plates with large core hole and additional ventilation openings, large double voice coil - Carbon fleece sandwich membrane, heavy-duty long-stroke surround, highly stable, coated aluminum dust protection dome - Newly developed connection terminals with screw connection - Low installation depth - Development and production: Made in Germany Technical data graphite 8-4 - Max. load capacity: 2 x 400 W - Nominal impedance: 2 x 4 ohms - Sensitivity sound pressure: 84 dB - Outside ø: 216 mm - Cutout ø: 186 mm - Installation depth: 98.6 mm

M10 FLAT Subwoofer 250 mm (10") Impedance  2x2 Ω Nominal power RMS  300 W Music power  600 W Sound pressure level  86 dB Outer diameter  265 mm Installation depth  91 mm

165 mm (6.5 inch) 2-way component system with fiberglass-paper sandwich diaphragm. 25 mm aluminum tweeter with cable crossovers without level cut. Powder coated metal basket with strong ferrite magnet & gloss turned bottom plate, 3 ohm impedance, 70 W RMS, 100 W music power handling, 94 dB characteristic sound pressure, includes tweeter insert & setup accessories. Made in Germany Tweeter  25 mm (1") Bass / midrange 165 mm (6.5") Impedance 3 Ω Nominal power (RMS 70 W Music power 100 W Sound pressure level 94 dB Outer diameter 165 mm Installation depth 65 mm

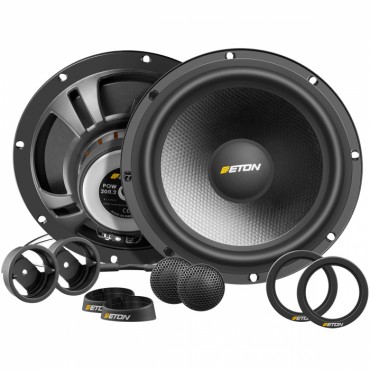

The POW 200.2 is a system that, as usual from ETON, has no problems whatsoever with demanding music material. The woofer's membrane is made of a glass/paper mix - guaranteeing a warm and harmonious sound. There is also an incredibly deep bass - a feature of the POW series that has always been there. The 3 ohm impedance of the woofer elicits a portion of extra power from the power amplifier or radio; A 25 mm tweeter with a fabric dome delivers crystal-clear highs and is extremely easy to install. An optimal addition to the POW 200.2 to the 3-way compo system is the 80 mm ETON midrange driver PRW 80   Product features POW 200.2 - Development and production in Germany - Strong magnet with ETON rubber magnet protection - Basket coated in Satin Black - Pole plate in RSE design - 80W RMS / 120W max. - Frequency range 39 - 22000 Hz - Nominal impedance 3 ohms - Sensitivity 94 dB - 200 mm midrange driver with fiberglass/paper membrane - Woofer with only 68 mm installation depth - 25 mm tweeter with coated aluminum dome - Installation-friendly 6 dB/Oct. Cable switch - Expandable to a 3-way system with PRW 80 midrange driver and MRX-3W crossover set

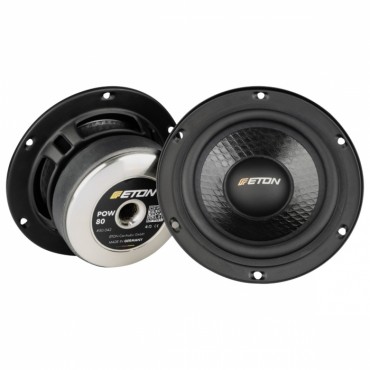

ETON POW80 - 80 mm (3") midrange, midrange car speaker to complement the POW and POW+ 2-way sound systems   Midrange speaker specifically designed to complement the POW and POW+ 2-way systems from ETON to 3-way systems: the 80 mm (3") midrange speaker POW80, a system extension for sound enthusiasts. The POW80 is a midrange speaker in a class of its own - not least thanks to its multi-layer membrane made of one specially coated paper-glass fiber fabric, which ensures a warm, full sound. Equipped with a stiffened powder-coated metal basket and a powerful ferrite magnet, which, with its CNC-machined base plate with a large core hole, enables efficient ventilation without flow noise, the POW80 is ready for a dynamic firework: Sensationally dynamic drums with razor-sharp precision, fine-sounding guitar strings or powerful vocal passages - the POW80 delivers and captivates its listeners. KEY FEATURES - Multi-layer paper-glass fiber fabric membrane with special coating - Soft cover dome for tonal neutrality - Stiffened, powder-coated metal basket with ventilation openings - CNC machined base plate with large pole core hole for the best possible ventilation without flow noise - High quality 2.8/4.8 mm connection plug terminals - Includes speaker ring, cover grille and mounting accessories - Development and production: Made in Germany - The ETON MRX-3W crossover is required for passive connection   TECHNICAL DATA Music load capacity: 30W Rated power rating: 20W RMS Impedance: 4 ohms Outer diameter: 95 mm Cutout diameter: 74 mm Installation depth: 38.9 mm
