High-end midrange speakers 80 mm (3") high-end midrange driver with newly developed carbon fleece sandwich membrane and strong neodymium magnet with core drilling for the best possible cooling. The high-quality, torsion-resistant die-cast aluminum basket enables impulse-fidelity and low-distortion sound reproduction. The high-end membrane technology in conjunction with The anodized aluminum dust cap conjures up a voluminous sounding, spatial and balanced mid/vocal reproduction. Dynamic, finely defined and natural, for unique sound enjoyment in combination with GRAPHIT 16 - the perfect extension! Rated load capacity 25 W Music load capacity 40 W Impedance 4 ohms Sensitivity sound pressure 86 dB Installation diameter 77 mm Installation depth 39.3 mm Κατασκευή και ανάπτυξη Made in Germany.

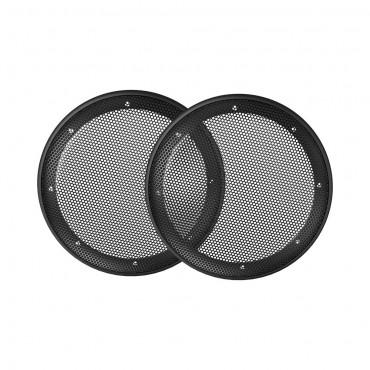

High quality metal grill  for 16.5 cm

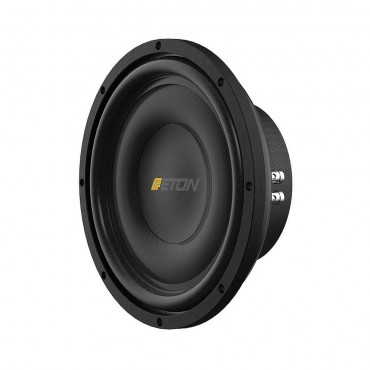

Eton M10 FLAT Subwoofer 10"

size	10 "/ 25 cm
Mounting diameter	230 mm
outer diameter	265 mm
Installation depth	91 mm
Nominal load capacity	300 W RMS
Music resilience	600 W
Impedance	2 x 2 ohms
Number of voice coils	2
Magnetic drive	Ferrite magnet

Nominal impedance Zn (Ω) 2 x 2 Ohm DC resistance Re 2 x 2,1 Resonance frequency fr 1W / TSP (Hz) 37 / 39 Suspension compliance CMS (mm/N) 0,10 Mechanical Q QMS 11,78 Electrical Q QES 0,75 Total Q QTS 0,70 Mechanical resistance RMS (kg/s) 3,5 Total moving mass MMD (g) 168 g Effective piston area SD (cm2) 346 Voice coil inductance Le (mH) 3,1 Force factor BL x l (Tm) 14,1 Equivalent air volume of suspension VAS (dm3) 17 SPL (dB) *bei 2,83 V / 1m 86 Rated power / music power (W) 300/600

4″ (10cm) Ομοαξονικό Eton MB100CNX OEM MERCEDES Ομοαξονικό MERCEDES C / GLC / E / S Class C Class W205 Sedan - S205 Station Wagon - C205 Coupe - A205 Cabrio GLC Class X253 SUV - C253 SUV Coupe E Class W213 Sedan - S213 Station Wagon - C238 Coupe - A238 Cabrio S Class W222 Sedan Κεντρικό Τεμάχιο Specification

Impedance	4 Ohm
Music power	50 W
SPL	89 dB

4″ (10cm) Διαιρούμενα Eton MB100F
OEM MERCEDES Διαιρούμενα MERCEDES C / GLC / E / S Class
C Class W205 Sedan - S205 Station Wagon - C205 Coupe - A205 Cabrio
GLC Class X253 SUV - C253 SUV Coupe
E Class W213 Sedan - S213 Station Wagon - C238 Coupe - A238 Cabrio
S Class W222 Sedan
Μπροστά / Πίσω Πόρτες


Specification

• 100 mm ( 4“) Midrange with ribbed, impregnated paper cone
• 25 mm ( 1“) hand coated silk dome tweeter with ventilated link volume
• Music power 50W
• Sound pressure level 88dB
• Frequency range 150Hz - 20000Hz
• Impedance 4 Ohm

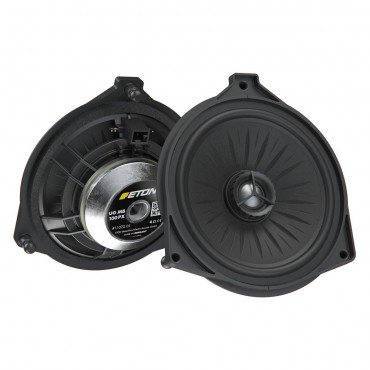

4″ (10cm) Ομοαξονικό Eton MB100PX OEM MERCEDES Ομοαξονικό MERCEDES C / GLC / E / S Class C Class W205 Sedan - S205 Station Wagon - C205 Coupe - A205 Cabrio GLC Class X253 SUV - C253 SUV Coupe E Class W213 Sedan - S213 Station Wagon - C238 Coupe - A238 Cabrio S Class W222 Sedan Πίσω Εταζέρα Specification

Impedance	4 Ohm
Music power	50 W
SPL	88 dB

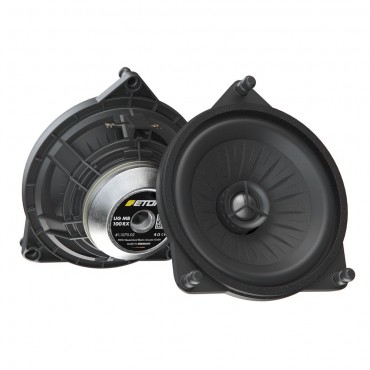

4″ (10cm) Ομοαξονικό Eton MB100RX OEM MERCEDES Ομοαξονικό MERCEDES C / GLC / E Class C Class W205 Sedan - S205 Station Wagon - C205 Coupe* - A205 Cabrio* GLC Class X253 SUV - C253 SUV Coupe E Class W213 Sedan - S213 Station Wagon - C238 Coupe - A238 Cabrio Πίσω Πόρτες *Εμπρός Πόρτες Specification • 100 mm ( 4“) Midrange with ribbed, impregnated paper cone • Integrated 15 mm ( 0.6“) Aluminium Tweeter • Music power 50W • Sound pressure level 88dB • Frequency range 150Hz - 20000Hz • Impedance 4 Ohm

Impedance	4 Ohm
Music power	50 W
SPL	88 dB

8″ (19,5cm) Subwoofer Eton MB100CNX OEM MERCEDES Subwoofer MERCEDES C / GLC / E Class C Class W205 Sedan - S205 Station Wagon - C205 Coupe - A205 Cabrio GLC Class X253 SUV - C253 SUV Coupe E Class W213 Sedan - S213 Station Wagon - C238 Coupe - A238 Cabrio Κεντρική Κονσόλα Οδηγού Συνοδηγού (Πόδια) Specification • 195 mm (8“) air dryed, hand coated paper cone • 50 mm ( 2“) voice coil • Neodym magnet system • Sound pressure level 87dB • Impedance 2 Ohms • Nominal power 150/200 W

Impedance	2 Ohm
Music power	200 W
SPL	87 dB

Eton Micro 120.2 2-Channel

channels	2
Amplifier power at 4 ohms	2 x 85 W.
Amplifier power at 2 ohms	2 x 120 W
Amplifier power bridged at 4 ohms	1 x 270 W
High level inputs	Yes
Low pass filter	20-250 Hz
High pass filter	20-250 Hz
Auto sense on function	Yes
Dimensions (LxWxH)	110 x 80 x 42 mm

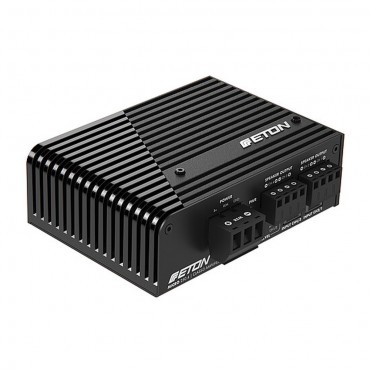

Eton Micro250.4 4-Channel MICRO DIMENSIONS – MAXIMUM POWER

channels	4
Amplifier power at 4 ohms	2 x 45 W + 2 x 80 W
High level inputs	Yes
Low pass filter	50-5000 Hz
High pass filter	50-5000 Hz
Auto sense on function	Yes
Dimensions (LxWxH)	127 x 94 x 42 mm

  Προηγμένη τεχνολογία ενισχυτή 4 καναλιών Class-D με ασύμμετρη κατανομή ισχύος. Ισχύς ενισχυτή στα 4 ohms RMS (2 x 45 W + 2 x 80 W). Είσοδος Hi-Low, ενσωματωμένο low-pass & high-pass φίλτρο 50 Hz - 5000 Hz, ξεχωριστή ένταση σε κάθε CH1/2 και CH3/4 , ανίχνευση σήματος (DC & SIG). Συμπ. αρθρωτά ρυθμιζόμενα πόδια στήριξης και διάφορους προσαρμογείς καλωδίων σύνδεσης. Engineered in Germany

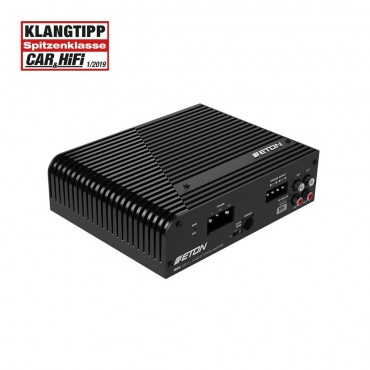

Eton MINI 300.2 2 Channel Class D Amplifier

Specifications

2 x 185 W at 4 Ohm
2 x 310 W at 2 Ohm and 1 x 620 W @ 4 Ohm bridged
Auto Sense On Function
Hi-Lo Level Inputs
Level Remote Control
Low Pass Filter 30 - 300 Hz
High Pass Filter 15 - 300 Hz
Auto sense on
Adjustable Input Sensitivity 0.45 V - 6 V
Smart Dimensions 183 x 146 x 50 mm (LxWxH)

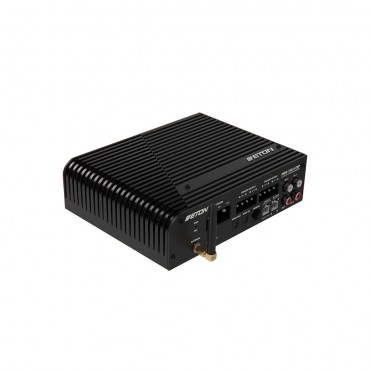

Eton MINI 150.4DSP

channels	4
Amplifier power at 4 ohms	4 x 100 W
Amplifier power at 2 ohms	4 x 155 W
Amplifier power at 4 ohms used	2 x 310 W
HiRes WiFi streaming	Yes
Digital sound processor (DSP)	Yes
Auto-Sense On	Yes
Hi-Lo inputs, SPDIF input	Yes
Dimensions (LxWxH)	183 x 146 x 50 mm

Amplifier power at 4 Ohm 4 x 100 W Amplifier power at 2 Ohm 2 x 180 W Amplifier power at 4 Ohm bridged 2 x 310 W HiRes WiFi Streaming yes Ultra Low THD+N THD+N 0.003% @ 5 W RMS SPDIF input yes Each input EQ 21 full parametric EQ band Each output EQ 10 full parametric EQ band DSP controlled output for further amplifer Yes/ 1 Delay Yes Suitable for vehicles with start/stop operation (8,5 V – 15,8 V) Yes Auto sense on Yes/ DC and AC/sig Remote level control Yes/ wired Dimensions 183 x 146 x 50 mm

Move M12-400AR Subwooferbox 30cm Ενεργό υπογούφερ 30 cm (12") Ισχυρή αναπαραγωγή μπάσων με γρήγορη και εύκολη εγκατάσταση χαρακτηρίζουν τη νέα σειρά MOVE AR !  αναπτυγμένο ξύλινο περίβλημα μπάσων από MDF με ισχυρό ενισχυτή (200 W) και ηχητική πίεση 87,4 dB μιλούν από μόνα τους. Είσοδοι Hi-Level και ενσύρματο remote control. Ισχύς ενισχυτή 200 W Ευαισθησία ηχητική πίεση 87,4 dB Αντίσταση 2 x 2 ohms Διαστάσεις (Μ x Π x Β) 500 x 350 x 385 mm

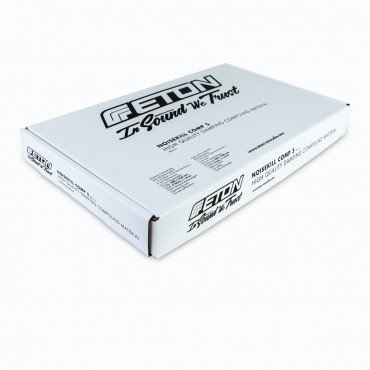

COMP 5 damping mats improve vehicle interior acoustics, reduce vehicle resonance, engine, rolling or vibration noise and enable clear and detailed music reproduction - with increased efficiency. High-end damping mat with anti-drumming noise protection, sound insulation and soundproofing. Optimal for door insulation, approx. 5.0 mm total thickness, 3-layer structure: 1.5 mm butyl + 0.5 mm aluminum + 3 mm insulating foam. Low own weight, flame retardant and self-adhesive, high long-term adhesive strength and temperature resistant. Scope of delivery: set of 4 mats à 500 x 700 mm approx. 5 mm can be used in the vehicle interior and exterior.

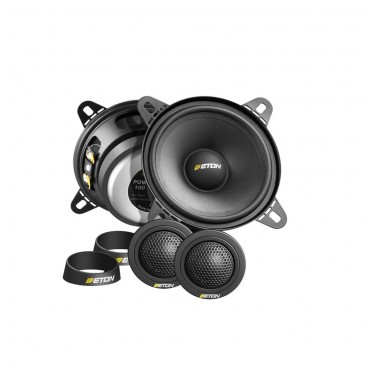

Eton POW 100.2 4" Διαιρούμενo (10 cm)

Din size	100 mm
Mounting diameter	92 mm
Installation depth	51 mm
Nominal load capacity (all voice coils)	40 W
Impedance	3 ohms
Number of voice coils	1

Nominal Power  60W Max. Power   90W Cone Material  glassfiber/paper compound Nominal Impedance  3 Frequency Range  80 - 22000 Hz Crossover Frequency  3800 Hz Sensivity 2,83V/1m    92 dB Tweeter Dimensions  40 mm ø 21 mm (depth) Mid/Woofer Dimensions  100 mm ø 51 mm (depth)
