The giant in the Alpha series is the GAS ALPHA 15D2! The dual 2 ohms voice coils allows you to change the impedance (1 or 4 ohms) when connecting the subwoofer to an amplifier, ensuring a very loud result!
A heavy duty magnet design, dual voice coils and a high power handling guarantees a high performing subwoofer that will satisfy all your bass needs.
VAS: 93.65L
Qts: 0.78
Fs: 35.89Hz
Re: 4.2 Ohms
SPL: 87.76 dB

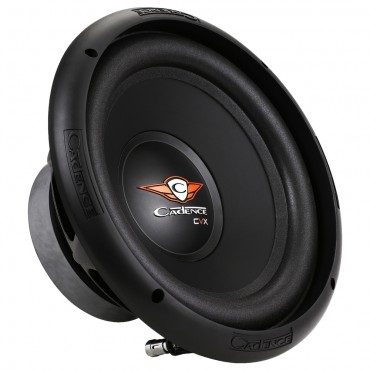

| GENERAL | CVX10D4 |
|---|---|
| Size | 10″ |
| Impedance (ohm) | 2 ohm |
| Cone material | Black Matte Finish Pressed Paper |
| Surround material | Foam |
| Voice coil | 2” High Temperature ASV |
| Ideal sealed box volume (cu ft / liter) | 0.8/12.66 |
| Ideal ported box volume (cu ft / liter) | 1.32/37.38 |
| Port Sq (inch / mm) | 1.5 x 10.5/38.1 x 266.7 |
| Port length (inch / mm) | 13/330.2 |
| Dual voice coil | Yes |
| Sensitivity (1W / 1mm) | 87 dB |
| Frequency response | 34 Hz – 1.8 kHz |
| RMS (watts) | 300 |
| Peak power handling (watts) | 600 |
| GENERAL | CVX10D4 |
|---|---|
| Size | 10″ |
| Impedance (ohm) | Dual 4 ohm |
| Cone material | Black Matte Finish Pressed Paper |
| Surround material | Foam |
| Voice coil | 2” High Temperature ASV |
| Ideal sealed box volume (cu ft / liter) | 0.8/12.66 |
| Ideal ported box volume (cu ft / liter) | 1.32/37.38 |
| Port Sq (inch / mm) | 1.5 x 10.5/38.1 x 266.7 |
| Port length (inch / mm) | 13/330.2 |
| Dual voice coil | Yes |
| Sensitivity (1W / 1mm) | 87 dB |
| Frequency response | 34 Hz – 1.8 kHz |
| RMS (watts) | 300 |
| Peak power handling (watts) | 600 |
Το LE 112 S4 είναι υπογούφερ αυτοκινήτου σε κουτί σχεδιασμένο για να βελτιώνει την απόδοση του ηχοσυστήματος στις χαμηλές συχνότητες, βελτιστοποιώντας τους χώρους και εξασφαλίζοντας μια γρήγορη και χωρίς με πολλές επεμβάσεις εγκατάσταση. Η μονάδα υπογούφερ, η οποία είναι το υποσύστημα DS, παρέχει ένα δυναμικό, δυναμικό περιβάλλον μπάσο. Το πολύ πυκνό περίβλημα MDF, χάρη στην άκαμπτη και σταθερή δομή του, δεν επηρεάζει την ακουστική. Το πίσω κεκλιμένο πλαίσιο πληροί δύο σημαντικές λειτουργίες: μειώνει τις αντανακλάσεις του πίσω κύματος και διευκολύνει την εγκατάσταση.

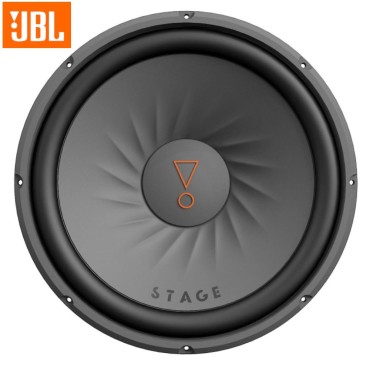

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, our subwoofers and loudspeakers are individually voiced by some of the world's best transducer engineers to ensure we achieve the signature sound that is unmistakably JBL.
| GENERAL | CMW124S |
|---|---|
| Size | 12″ |
| Impedance (ohm) | Single 4 ohm |
| Cone material | Black matte finish pressed paper |
| Surround material | Butyl rubber |
| Voice coil | Φ 49,5mm, ASV |

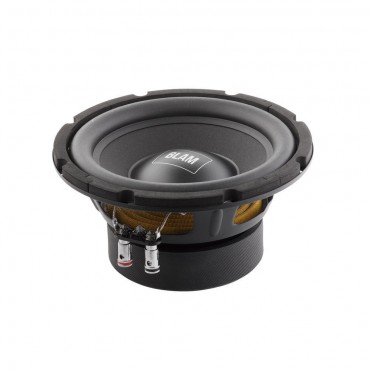

2 OHM 210 MM (8 ‘’) SUBWOOFER POWER MAX. 300 W
Great bass in a tight space!
To completely enjoy quality music in the automotive environment, a subwoofer becomes a necessary component; enhancing warmth and adding punch to the conventional speaker system. This subwoofer is designed to be fitted into a very compact enclosure, easily integrated into the vehicle. Combined this with our RA 301D amplifier, this subwoofer creates a powerful, dynamic and enjoyable listening experience.
BLAM wishes you long hours of enjoyment!
TECHNICAL CHARACTERISTICS
Size: 12nch
Cone: Competition Grade paper
Surround material: Foam
Voice coil dimension : 2.5inch
Voice coil layer: 4layer
Nominal impedance:dual 2ohm
Voice coil wire: COOPER
Spider dimension : 2.5''ID / 8''OD
Spider layers :1pcs x 3layers
RMS Power: 500wrms
MAX Watt: 1000wmax
Magnet dimension:Φ160*20mm X 2PCS
GAS GPP165D1 is the smallest of the GPP series at a minimal 6.5 inches, or 165mm as the name implies! It's said that size doesn't matter, if that's true or not we can't tell, but in this case it's true. This little beast will leave the audience with their jaws down at their knees with its powerful sound!
TYPE: Subwoofer
SIZE: 6,5″'
POWER (RMS): 360W
POWER (MAX): 720W
IMPEDANCE: 2×1 ohm
UNIT: Single

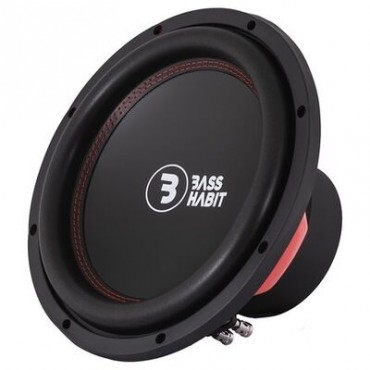

Bass Habit Play 2 P2300D1 is the next step in the cocky Play series. The P2300D1 is a tough bass that performs incredibly well for the money. Bass Habit has chosen to give the bass a solid red tin basket to give it extra durability, a detail that also raises the coolness factor considerably. This is a bass that thrives in both ported and closed box!
