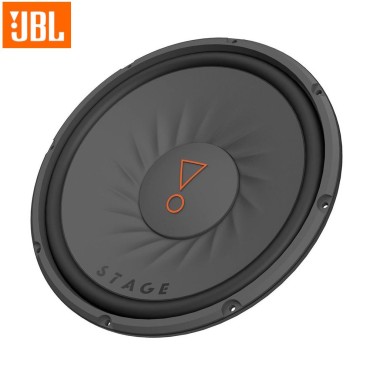

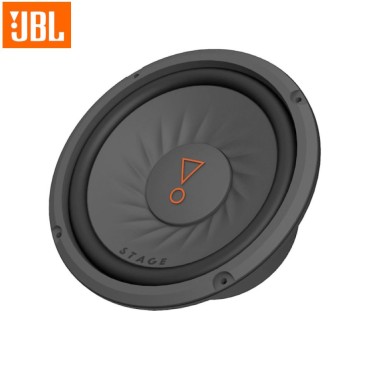

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, our subwoofers and loudspeakers are individually voiced by some of the world's best transducer engineers to ensure we achieve the signature sound that is unmistakably JBL.
SIZE:1Oinhc
CONE:Competition Grade Paper
SURROUND MATERIAL:Foam
VOICE COIL:2inch
RMS POWER:350Watt
SENSITIVITY:87.5db
MAX WATT:700wmaxx
RESORANCE FREQUENCY(fo):38.3Hz
MECHANICAL Q FACTOR(Qms):5.23
ELECTRICAL Q FACTOR(Ques):0.53
TOTAL Q FACTOR(Qts):0.48
X MAX:6mm
FORCE FACTOR:13.4 N/A
MAGNET WEIGHT:50 OZ
The first step in the Alpha series is GAS ALPHA 8D2! The dual 2 ohms voice coils allows you to change the impedance (1 or 4 ohms) when connecting the subwoofer to an amplifier, ensuring a very loud result!
A heavy duty magnet design, dual voice coils and a high power handling guarantees a high performing subwoofer that will satisfy all your bass needs.
VAS: 8.5L
Qts: 0.42
Fs: 38.2Hz
Re: 4 Ohm
SPL: 81.9 dB
SIZE: 12inch
CONE:competition grade paper
SURROUND MATERIAL:foam
VOICE COIL:2 inch
RMS POWER:350 WATT
SENSITIVITY:89.2db
MAX WATT:700wmaxx
RESORANCE FREQUENCY(fo):36.2Hz
MECHANICAL Q FACTOR(Qms):5.6
ELECTRICAL Q FACTOR(Qes):0.62
TOTAL Q FACTOR(Qts):0.56
X MAX:6 mm
FORCE FACTOR:13.6 N/A
MAGNET WEIGHT:50 oz
CONE:competition grade paper
SURROUND MATERIAL:foam
VOICE COIL:2 inch
RMS POWER:350 WATT
SENSITIVITY:89.2db
MAX WATT:700wmaxx
RESORANCE FREQUENCY(fo):36.2Hz
MECHANICAL Q FACTOR(Qms):5.6
ELECTRICAL Q FACTOR(Qes):0.62
TOTAL Q FACTOR(Qts):0.56
X MAX:6 mm
FORCE FACTOR:13.6 N/A
MAGNET WEIGHT:50 oz
The Bass Habit P380 is a great value 15" woofer from the best-selling Play series! It's a bass that, at a great price, performs above its price range in a proper box and a suitable power amp. The bass is a classic all-round bass that works in most drawer types Customize the drawer according to what you want to get out, and you have an obvious choice in the price range!
Subwoofer GAS AUDIO MAD S2-08D2 8''
| SERIES | MAD |
|---|---|
| COMPONENT | Subwoofer |
| SIZE | 8 inch |
| NOMINAL IMPEDANCE | 2+2 Ohm |
| POWER RMS | 250W |
| POWER MAX | 500W |
| FREQ. RESPONSE | 25-250Hz |
| VOICE COIL | 2 Inch (51mm) PCW |
| CONE | IMPP |
| DUSTCAP | 3D IMPP |
| BASKET | M Steel |
| MAGNET | HQ Ferrite |
| SUSPENSION | USG™ Rubber |
Τα υπογούφερ αυτοκινήτου DS 25.3 προσφέρουν υψηλή απόδοση και εξαιρετικό χειρισμό ισχύος. Εξοπλισμένα με μεμβράνη πολυπροπυλενίου και περίβλημα από καουτσούκ βουτυλίου, παρέχουν υψηλή εκδρομή με ελάχιστη παραμόρφωση. Ένα αποτελεσματικό σύστημα ψύξης εξασφαλίζει τη βέλτιστη απαγωγή θερμότητας, αυξάνοντας την αξιοπιστία τους.
Τα υπογούφερ Dieci έχουν σχεδιαστεί για χρήση σε συμπαγή σφραγισμένα ή αντανακλαστικά περιβλήματα. χάρη σε έναν αποκλειστικό, προσεκτικά μελετημένο σχεδιασμό, μπορούν να χρησιμοποιηθούν.
| Size mm (in.) | 250 (10) |
| Power Handling - Continuous W | 150 |
| Power Handling - Peak W | 600 |
| Impedance Ohm | 4 |
| No Filter Component | Subwoofer |
| Voice Coil Ø | 38 (1.5) |
| Frequency Response Hz | 32 ÷ 400 |
| Magnet size D x d x h mm (in.) | 100 x 50 x 25 (4 x 2 x 1) |
| Weight of one component kg (lb.) | 3 (6.6) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene with Mica injection |
| Xmech mm (in.) | 16 (0.63) |
| D mm | 215 |
| Xmax mm | 9 |
| Re Ohm | 3,3 |
| Fs Hz | 36 |
| Le mH | 2,15 |
| Vas I | 34 |
| Mms g | 106 |
| Cms mm/N | 0,18 |
| BL T*m | 8,5 |
| Qts | 0,92 |
| Qes | 1,13 |
| Qms | 5 |
| Spl dB | 89 |
| A | 257 mm | 10.2 in. |
| B | 234 mm | 9.2 in. |
| C | 116 mm | 4.6 in. |
| D | 104 mm | 4.1 in. |
