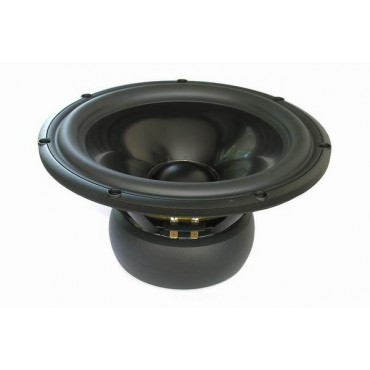

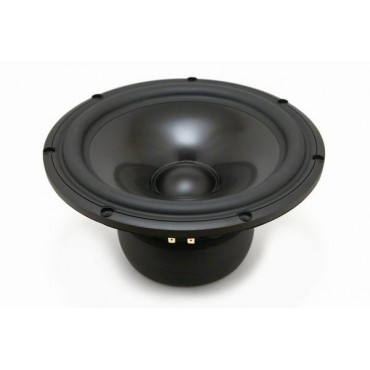

10″ Woofer
Low loss linear suspension
Aluminium cone
More details in PDF




Μέγεθος: 10"
Αντίσταση (Ohm): 4
Ευαισθησία: 89 db
Power (RMS): 170 W
Power (Music): -
Διάμετρος Τρύπας: 228.1 mm
Βάθος Μεγαφώνου: 124.7 mm

26cm Woofer
Alu. Cone & Fibre Glass dust cap High sensitivity
Long Linear excursion
Diecast Aluminium basket
Vents below spider
Low damping rubber surround
More details in PDF




Μέγεθος: 26 cm
Αντίσταση (Ohm): 8
Ευαισθησία: 89 db
Power (RMS): 80 W
Power (Music): 150 W
Διάμετρος Τρύπας: 231 mm
Βάθος Μεγαφώνου: 106 mm

Low loss linear suspension
SD-1 motor system
Hard paper cone
More details in PDF




Μέγεθος: 10"
Αντίσταση (Ohm): 8
Ευαισθησία: 88.5 db
Power (RMS): 170 W
Power (Music): -
Διάμετρος Τρύπας: 228.1
Βάθος Μεγαφώνου: 124.7 mm

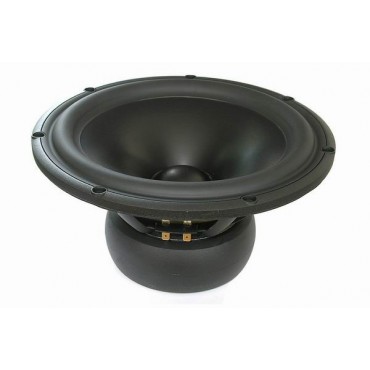

10″ Woofer
Low loss linear suspension
Aluminium cone
More details in PDF




Μέγεθος: 10"
Αντίσταση (Ohm): 8
Ευαισθησία: 87 db
Power (RMS): 170 W
Power (Music): -
Διάμετρος Τρύπας: 228.1 mm
Βάθος Μεγαφώνου: 124.7 mm

130 mm flow resistor
Scan-Speak Flow Resistor Aperiodic Vent - EACH
Cutout size is 4.3 inches.
Product picture demonstrate the front and back side of these vents. They are sold each, so order two if you require a pair.
Aperiodic vents lower the Q of your driver in a sealed box. They essentially makes your sealed box woofer act as if its in a box that is roughly 20% larger. We recommend using one vent for boxes up to 1.5 cubic feet and two vents for larger speakers. If your box is really undersized or if you are using a large woofer in a small box, you could use two or more, to help reduce pressure in the box.
Also known as the "Scanspeak 130mm Flow Resistor #290001".

30cm PASSIVE RADIATOR XXLS
Aluminium Chassis
Aluminium Cone
Adjustable weight
Rigid design
More details in PDF




Μέγεθος: 30 cm
Αντίσταση (Ohm): No
Ευαισθησία: No
Power (RMS): No
Power (Music): No
Διάμετρος Τρύπας: 280 mm
Βάθος Μεγαφώνου: 80 mm

32 cm Subwoofer4 ohm, Paper Sandwich Cone, Ferrite Magnet- Paper sandwich cone w. patented foam filling- Patented Symmetrical Drive motor- Large dustcap w. logo- Extreme long linear excursion (+/-14mm)- 3" coil, Titanium former, paper reinforced- Stiff robust die cast alu chassis

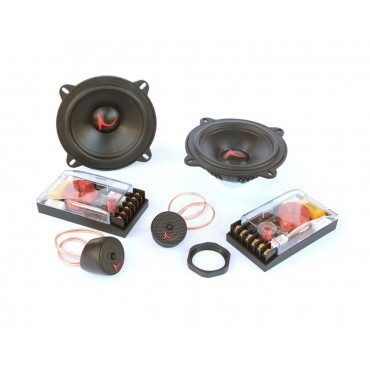

HiEnd Speaker Set with 12dB / Octave Crossover
Alu Die cast Chassis
Patented NRSC Fibre Glass Cone
More details in PDF




Δρόμοι: 2
Tweeter Diameter: 19mm
Midrange Diameter: No
Woofer Diameter: 5,25" (130mm)
Αντίσταση (Ohm): 4
Ευαισθησία: 88dB
Power (RMS): 100Watt
Power (Music): No
Διάμετρος Τρύπας: 125mm
Βάθος Μεγαφώνου: 71mm

HiEnd Speaker Set with 6dB / Octave Crossover
Alu Die cast Chassis
Patented NRSC Fibre Glass Cone
Very power full Neo magnet motor system
More details in PDF




Δρόμοι: 2
Tweeter Diameter: 19mm
Midrange Diameter: No
Woofer Diameter: 6.5" (165mm)
Αντίσταση (Ohm): 4
Ευαισθησία: 88dB
Power (RMS): 100Watt
Power (Music): No
Διάμετρος Τρύπας: 141mm
Βάθος Μεγαφώνου: 63mm

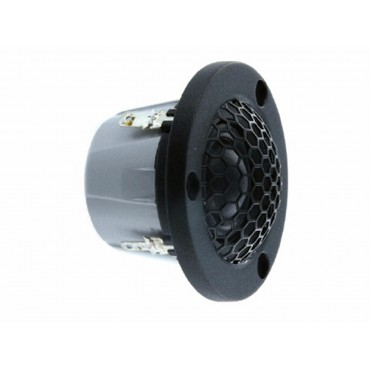

0.75" soft dome
Compact size
Ring neodymium magnet
Aluminium faceplate and house
Protective grill
More details in PDF




Μέγεθος: 0.75"
Αντίσταση (Ohm): 4
Ευαισθησία: 88.4 db
Power (RMS): 50 W
Power (Music): 100 W
Διάμετρος Τρύπας: 42.1 mm
Βάθος Μεγαφώνου: 29.3 mm

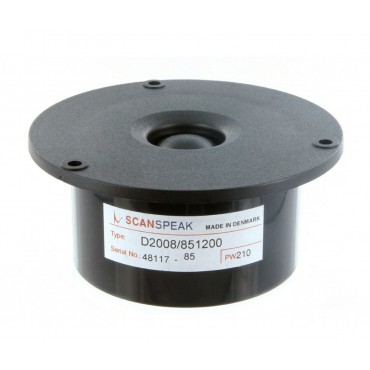

Dome Tweeter
Soft dome
Dual chamber
Ferro fluid
More details in PDF




Μέγεθος: 3/4"
Αντίσταση (Ohm): 8
Ευαισθησία: 90 db
Power (RMS): 90 W
Power (Music): 150 W
Διάμετρος Τρύπας: 69 mm
Βάθος Μεγαφώνου: 37.5 mm

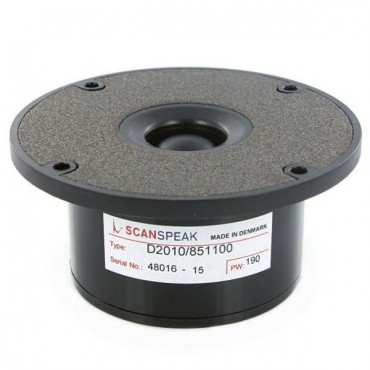

Soft dome
Dual chamber
Ferro fluid
More details in PDF




Μέγεθος: 3/4"
Αντίσταση (Ohm): 8
Ευαισθησία: 90 db
Power (RMS): 90 W
Power (Music): 150 W
Διάμετρος Τρύπας: 69 mm
Βάθος Μεγαφώνου: 37.5 mm

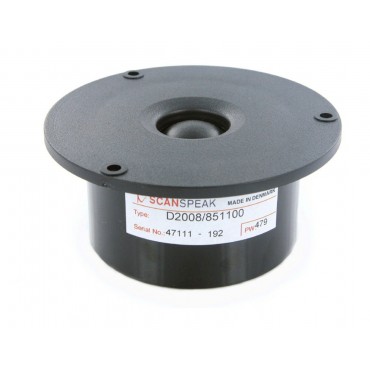

Soft dome
Dual chamber
Ferro fluid
More details in PDF




Μέγεθος: 3/4"
Αντίσταση (Ohm): 8
Ευαισθησία: 90 db
Power (RMS): 90 W
Power (Music): 150 W
Διάμετρος Τρύπας: 69 mm
Βάθος Μεγαφώνου: 41 mm

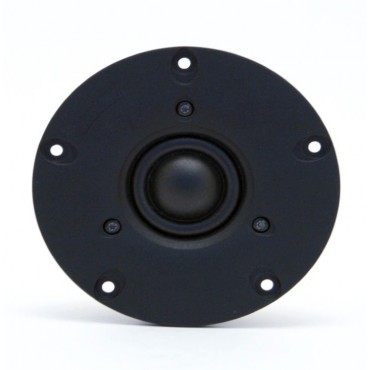

dome tweeter
0.5 Kg
Extended Frenquency to Above 30 KHz
Low Resonance Frenquency 630 Hz
Low Distortion
Silk Fabric Diaphragm
Large Surround
More details in PDF




Μέγεθος: 1"
Αντίσταση (Ohm): 4
Ευαισθησία: 92.08 db
Power (RMS): 100 w
Power (Music): No
Διάμετρος Τρύπας: 72 mm
Βάθος Μεγαφώνου: 25.4 mm

dome tweeter
0.8 Kg
Extended Frenquency to Above 40 KHz
Low Resonance Frenquence 475 Hz
Silk Fabric Diaphragm
Large Surround
Rear Chamber
More details in PDF




Μέγεθος: 1"
Αντίσταση (Ohm): 4
Ευαισθησία: 94.06 db
Power (RMS): 100 W
Power (Music): No
Διάμετρος Τρύπας: 72 mm
Βάθος Μεγαφώνου: 54.6 mm
