– 35000.1 EVOX

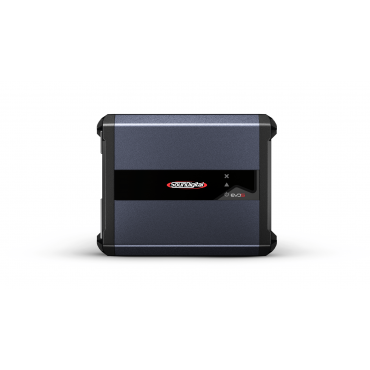

1200.1 EVO 5 – 1 OHM Power @ 4Ω: 1 X 522 WRMS Power @ 2Ω: 1 X 796 WRMS Power @ 1Ω: 1 X 1200 WRMS 1200.1 EVO 5 – 2 OHMS Power @ 4Ω: 1 X 796 WRMS Power @ 2Ω: 1 X 1200 WRMS Power @ 1Ω: 1 X N/A Frequency Response (-3dB): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz Operating Voltage: 9V ~ 16V Signal-Noise Ratio: 95dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 54A 2Ω: 52A Current Draw (Max): 1Ω: 108A 2Ω: 105A Total Efficiency: 1Ω: 88% 2Ω: 91% Damping Factor: >2000 Power Cable: 16mm² (5 AWG) Audio Output Cable: 1Ω: 2 x 4 mm² (6 AWG) 2Ω: 2 x 2,5 mm² (13 AWG) Recommended Fuse (Music): 60A Recommended Battery: 60Ah Width: 13.6 cm / 5.4 in Length: 18 cm / 7.1 in Height: 5.48 cm / 2.1 in Weight: 1.12 Kg

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

1,14 Kg

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

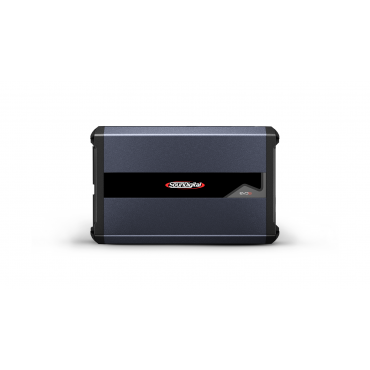

  2000.2 EVO 5 – 2 OHMS

  RMS Power @ 1Ω: 2 X 1000 WRMS RMS Power @ 2Ω: 2 X 660 WRMS RMS Power in Bridge @ 2Ω: 1 X 2000 WRMS RMS Power in Bridge @ 4Ω: 1 X 1320 WRMS





• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  2000.2 EVO 5 – 4 OHMS

  RMS Power @ 1Ω: N/A RMS Power @ 2Ω: 2 X 1000 WRMS RMS Power in Bridge @ 2Ω: N/A

  RMS Power in Bridge @ 4Ω: 1 X 2000 WRMS

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Frequency Response (-3dB):

  10Hz ~ 20kHz

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Low Pass Filter (LP -12dB/8):

  80Hz

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  High Pass Filter (HP -12dB/8):

  80Hz

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Supply Voltage:

  8V ~ 16V

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  SNR:

  90dB

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Input Sensitivity:

  0.2~2V

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Consumption with music signal:

  2Ω: 89A 4Ω: 88A

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Consumption with resistive load (1kHz @ 12.6V):

  2Ω: 178A 4Ω: 176A

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Total Efficiency:

  2Ω: 89% 4Ω: 90%

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Damping Factor (@100Hz Nominal Impedance):

  200

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Minimum Impedance Per Stereo Channel:

  2Ω: 1 ohm
  4Ω: 2 ohms

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Minimum Impedance Per Bridge:

  2Ω: 2 ohms 4Ω: 4 ohms

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Fuse (Musical):

  100A

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Battery (Minimum for Music Use):

  100Ah

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Width:

  13.6 cm

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Length:

  22.8 cm

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Height:

  5.5 cm

• https://soundigital.com/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Weight:

  1.58 kg

  ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

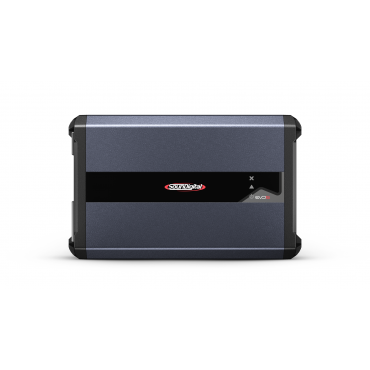

3000.1 EVO 5 – 2 OHMS Power @ 1Ω: N/A Power @ 2Ω: 1 X 3000W RMS Power @ 4Ω: 1 X 1980W RMS Frequency Response (-3db): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz Supply Voltage: 9V – 16V Signal-to-noise ratio: 92dB Input Sensitivity: 0.2V ~ 2V Music Consumption: 1Ω: 149A 2Ω: 139A 4Ω: 140A Consumption with Resistive Load: 1Ω: 298A 2Ω: 277A 4Ω: 280A Total Efficiency: 1Ω: 80% 2Ω: 86% 4Ω: 85% Damping Factor: >2000 Power Cord: 35mm² (2AWG) Audio Output Cable: 1Ω: 2 x 4.0 mm² (11 AWG) 2Ω: 2 x 2.5 mm² (13 AWG) 4Ω: 2 x 1.5 mm² (15 AWG) Fuse (Musical Use): 150A Recommended Battery: 150Ah Width: 13.6 cm Length: 22.9 cm Height: 5.48 cm Weight: 1.65 kg

1,65 Kg

https://www.soundigital.com/en/wp-content/uploads/2024/01/400.4-EVO6-ENG.pdf

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  400.4 EVO6 – 4 OHMS

  Power @ 4Ω: 2 x 66W RMS
  Power @ 2Ω: 4 x 100W RMS

  Bridge Power @ 4Ω: 2 x 200W
  Bridge Power @ 2Ω: N/A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Frequency Response (-3dB):

  8Hz ~ 20kHzhttps://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

• Low Pass filter (12dB/octave):80Hz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  High Pass filter (12dB/octave):80Hz

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Operating Voltage:9v-16v

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  SNR:94db

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Input Sensitivity (RCA):0.2v-2v

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Current Draw (music):20A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Current Draw (max.):40.5A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Total Efficiency:78%

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Damping Factor (@100Hz nominal impedance):200

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Power Cable:

  6mm² (9 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Speaker Cable:

  2 x 1.5mm² (15 AWG)

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Fuse (music):25A

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Recommended Battery (minimum):40Ah

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Width:

  3.4" / 8.6 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Length:

  4.2" / 10.7 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Height:

  1.8" / 4.6 cm

• https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

  Weight:

  0,437 kg / 0.963 l

  ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

2.75kg

800.1 EVO 5 – 2 OHMS RMS Power @ 2Ω: 800W RMS Power @ 4Ω: 535W RMS Power @ 8Ω: 348W 800.1 EVO 5 – 4 OHMS RMS Power @ 2Ω: N/A RMS Power @ 4Ω: 800W RMS Power @ 8Ω: 528W Frequency Response (-3dB): 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz Supply Voltage: 8V ~ 16V SNR: 2Ω: 96dB 4Ω: 97dB Input Sensitivity (RCA): 0.2V ~ 2V High Input Sensitivity: 1.5V ~ 15V Consumption with music signal: 2Ω: 40.8A 4Ω: 38.7A Consumption with resistive load (1kHz @ 12.6V): 2Ω: 81.6A 4Ω: 77.4A Total Efficiency: 2Ω: 79.4% 4Ω: 78.9% Damping Factor (@100Hz Nominal Impedance): 200 Power Cord: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG) Recommended Fuse (Musical): 40A Recommended Battery (Minimum for Music Use): 60Ah Width: 11.3 cm Length: 14.8 cm Height: 5.1 cm Weight: 0.7 kg

800.1 EVO 5 – 4 OHMS RMS Power @ 2Ω: N/A RMS Power @ 4Ω: 800W RMS Power @ 8Ω: 528W Frequency Response (-3dB): 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz Supply Voltage: 8V ~ 16V SNR: 2Ω: 96dB 4Ω: 97dB Input Sensitivity (RCA): 0.2V ~ 2V High Input Sensitivity: 1.5V ~ 15V Consumption with music signal: 2Ω: 40.8A 4Ω: 38.7A Consumption with resistive load (1kHz @ 12.6V): 2Ω: 81.6A 4Ω: 77.4A Total Efficiency: 2Ω: 79.4% 4Ω: 78.9% Damping Factor (@100Hz Nominal Impedance): 200 Power Cord: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG) Recommended Fuse (Musical): 40A Recommended Battery (Minimum for Music Use): 60Ah Width: 11.3 cm Length: 14.8 cm Height: 5.1 cm Weight: 0.7 kg

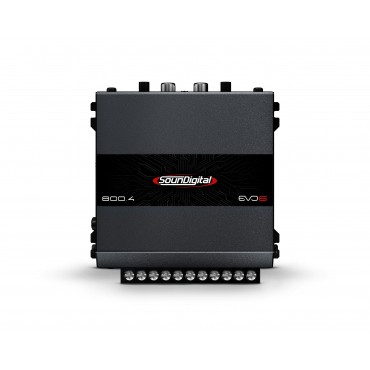

The 800.4 EVO6 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. General Specifications + 800.4 EVO6 – 4 OHMS Power @ 4Ω: 4 x 132W RMS Power @ 2Ω: 4 x 200W RMS Bridge Power @ 2Ω: 2 X 400W RMS Bridge Power @ 4Ω: N/A Frequency Response (-3dB): 5Hz ~ 20kHz Low Pass Filter (12dB/octave): 80Hz High Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V SNR: 93dB Input Sensitivity (RCA): 0.2V ~ 2V Current Draw (music): 39A Current Draw (max.): 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker Cable: 2 x 2.5mm² (13 AWG) Recommended Fuse (music): 40A Recommended Battery (minimum): 60Ah Width: 4.4" / 11.2 cm Lenght: 4.2" / 10.7 cm Height: 2.0" / 5.2 cm Weight: 0,609 kg / 1.342 lb

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

2 in / 5,1 cm

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

0.66 Kg
