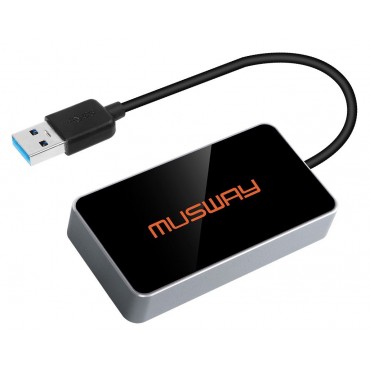

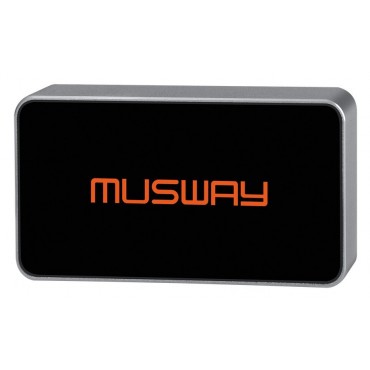

The BTA dongle features an audio streaming function that lets you wirelessly transfer music from your mobile device to the DSP amplifier. Simply connect the dongle to the DSP amplifier via USB and select the Bluetooth® input via software or the optional DRC1 remote control. Besides the audio streaming function, the BTA dongle offers the possibility of configuring and controlling the DSP amplifier via smartphone/tablet. The app can be downloaded for iOS in the App Store and for Android® under Google Play for free.
BLUETOOTH® DONGLE FOR AUDIO STREAMING & APP-CONTROL


The BTS dongle features an audio streaming function that lets you wirelessly transfer music from your mobile device to the DSP amplifier. Simply connect the dongle to the DSP amplifier via USB and select the Bluetooth® input via software or the optional DRC1 remote control.
BLUETOOTH® DONGLE
FOR AUDIO STREAMING

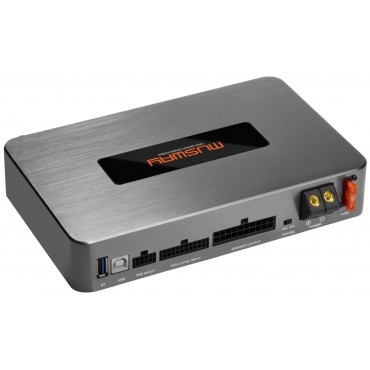

With the D8 model MUSWAY delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels, including a freely configurable 10-Channel DSP. Each channel is bridgeable and generates a 2 ohms power of 75 Watts RMS, thus a total of 600 watts RMS. In principle, the D8 Amp offers the same features as the M6, but with two amplified outputs and two additional DSP channels. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.

As a bonus on top in this configuration a bridged output with 150 watts RMS to 4 Ohmss for a mid-size subwoofer would be available. Like the M6, the high-quality audio components and a DSP from Texas Instruments™ are also part of the design of the multi-layer PCB. Also on board is a flexible multi-level input with Error Protection System, a soft-clipping speaker protection for 2 Ohm operation and an automatic turn-on function, so that the connection to OEM radios does not cause any problems.

• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Dual 32bit, 330 MIPS DSP technology controllable via PC software or APP
• External Bluetooth® USB-Dongles (BTS & BTA) for Audio Streaming/APP (optional)
• Digital remote control (DRC1) with LCD for controlling various DSP functions (optional)
• QUICKCONNECT Terminal to connect all  MUSWAY 2+2 Ω Subwoofer-Systems
8-CHANNEL CLASS D AMPLIFIER
WITH 10-CHANNEL DSP · 600 WATTS RMS

8 x 50/75 Watts RMS @ 4/2 Ohms or
4 x 150 Watts RMS @ 4 Ohmss bridged
8 x High Level Inputs, 2 x AUX/RCA Inputs
1 x Optical Input/Stereo
8 x Loudspeaker Outputs amplified
2 x Pre-Amplifier Outputs/RCA (configurable via DSP)
Dimensions in mm: 205 (L) x 127 (W) x 37 (H)

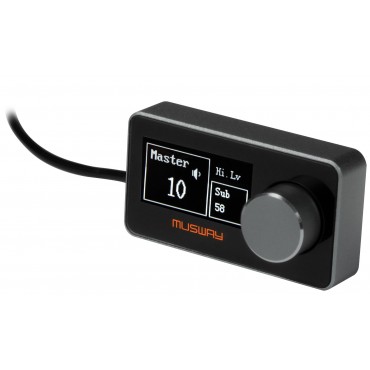

DIGITAL REMOTE CONTROL WITH LCD
FOR SEVERAL DSP FUNCTIONS
With the DRC1 remote control, it is possible to control the overall volume and the subwoofer level on the amplifier. You can also select the input signal, the subwoofer level channel pair and the DSP preset. A short press on the rotary knob also mutes the entire sound system. Thanks to the LCD display, the DRC1 is clearly arranged and only needs to be connected to the amplifier with the enclosed connection cable (5.00 m).

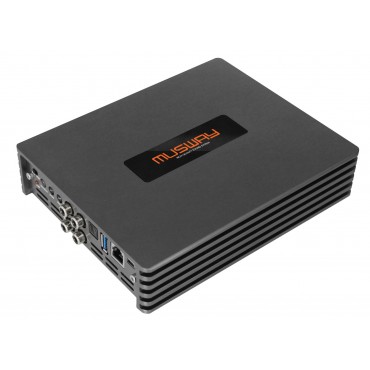

The M6v3 model can surely be seen as a new milestone in amplifier construction. It is barely imaginable that a fully grown class D amplifier works in this small housing, featuring  six pairwise bridgeable outputs, each with 105 watts RMS per channel (at 2 Ω). A total of 630 Watts RMS are available. The compact dimensions are made possible by an elaborate 4-fold laminated board, which also effectively suppresses EMC interference due to the favorable topology - a must, especially for full-range Class D amplifiers.

The centerpiece is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which was fine-tuned by the Musway engineers and leaves no audiophile wishes unfulfilled. The amplifier finds its connection via a space-saving cable harness with ISO plugs, individual Plug+Play cable sets are also available. Useful additional features include soft-clipping to protect the electronics and speakers in 2 Ω operation and the newly developed high-level input with Error Protection System. When connected to an OEM factory radio the Error Protection System ensures that no functions are impaired or error messages are written into the vehicle memory.

• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles (BTS & BTA2) for Audio Streaming & App Control (optional)
• Digital remote control (DRC1) with OLED display for controlling various DSP functions (optional)
• QUICK CONNECT Terminal to connect all  MUSWAY 2 + 2 Ohms Subwoofer-Systems
M6v3
6-CHANNEL CLASS D AMPLIFIER
WITH 8-CHANNELL DSP · 630 WATTS RMS

6 x 70/105 Watts RMS @ 4/2 Ohms or
3 x 210 Watts RMS @ 4 Ohms bridged
6 x High Level Input 4,8 – 20 V RMS
6 x RCA Low Level Input* (RCA) 2 – 6 V RMS
1 x AUX Input/Stereo (RCA) 2 – 6 V RMS
1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
6 x Loudspeaker Output amplified
2 x Pre-Amplifier Output (RCA) 4 V RMS (configurable via DSP)
Dimensions: 150 x 44 x 220 mm
* only with optional MPK-RCA6/MPK-RCA6-PP cable set


Downloads:



Owner's Manual




Test Review




DSP Software V3.3






The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

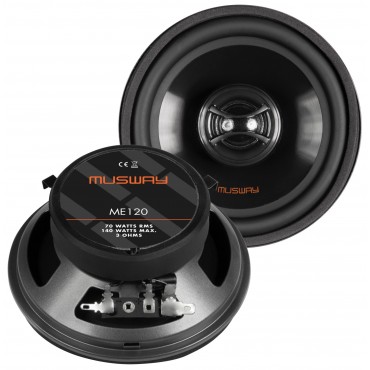

12 CM 2-WAY COAXIAL-SPEAKERS

70 Watts/RMS, 140 Watts/MAX
Frequency Range 70 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Installation Depth 44 mm
Installation Opening 110 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

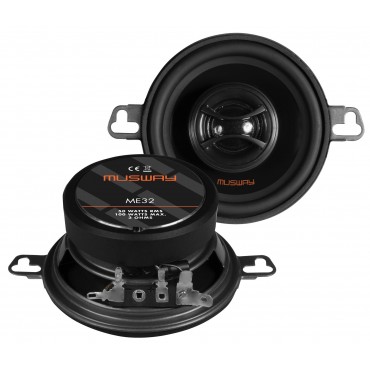

8,7 CM (3.5”) 2-WAY COAXIAL-SPEAKERS

50 Watts/RMS, 100 Watts/MAX
Frequency Range 85 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Installation Depth 39 mm
Installation Opening 78 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

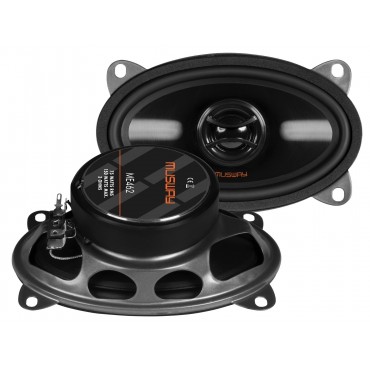

10 x 15“ CM (4 x 6”) 2-WAY COAXIAL-SPEAKERS

75 Watts/RMS, 150 Watts/MAX
Frequency Range 68 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Installation Depth 48 mm
Installation Opening 89 x 141 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

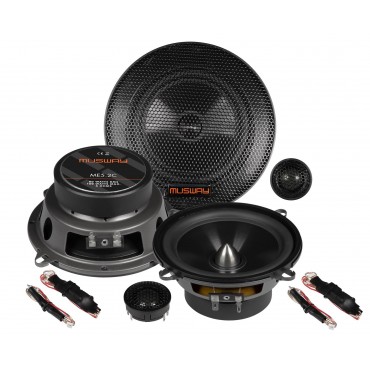

13 CM (5.25”) 2-WAY COMPONENT-SYSTEM

80 Watts/RMS, 160 Watts/MAX
Frequency Range 65 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
Phase Plug
Separate Crossovers for Treble and Bass
25 mm Silk-Dome-Tweeters
Protection Grilles
Installation Depth 54 mm
Installation Opening 115 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

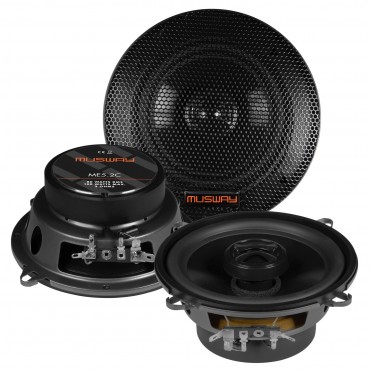

13 CM (5.25”) 2-WAY COAXIAL-SPEAKERS

75 Watts/RMS, 150 Watts/MAX
Frequency Range 65 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Protection Grilles
Installation Depth 52 mm
Installation Opening 115 mm



The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

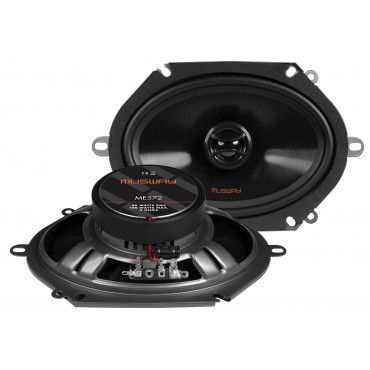

13 x 18“ CM (5 x 7”) 2-WAY COAXIAL-SPEAKERS

80 Watts/RMS, 160 Watts/MAX
Frequency Range 63 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Installation Depth 58 mm
Installation Opening 124 x 181 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

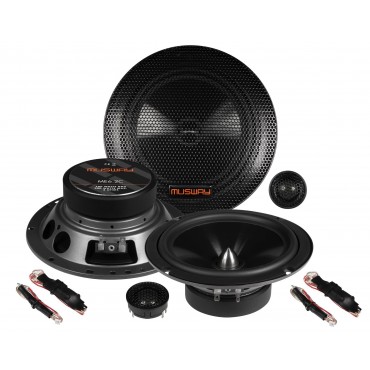

16,5 CM (6.5”) 2-WAY COMPONENT-SYSTEM

100 Watts/RMS, 200 Watts/MAX
Frequency Range 60 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
Phase Plug
Separate Crossovers for Treble and Bass
25 mm Silk-Dome-Tweeters
Protection Grilles
Installation Depth 59 mm
Installation Opening 142 mm
https://www.youtube.com/watch?v=nH5IOXowkiE


The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

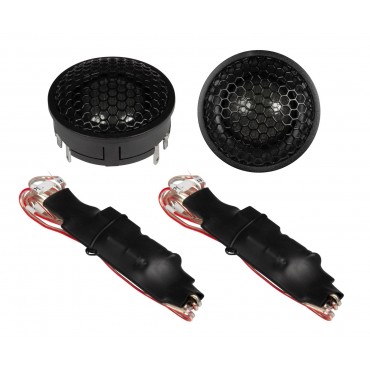

25 MM (1”) SILK DOME NEODYMIUM TWEETERS

100 Watts/RMS, 200 Watts/MAX
12 dB Inline-Crossovers with -3 dB attenuation
Frequency Range 3500 - 22000 Hz
Impedance 4 Ohms
Installation Depth 17 mm
Installation Opening 41 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

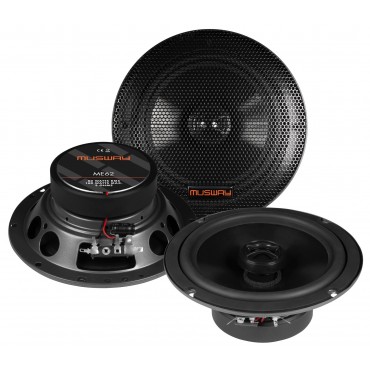

16,5 CM (6.5”) 2-WAY COAXIAL-SPEAKERS

80 Watts/RMS, 160 Watts/MAX
Frequency Range 60 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20 mm Silk-Dome-Tweeters
Protection Grilles
Installation Depth 59 mm
Installation Opening 142 mm

The ME speakers are the entry-level models from MUSWAY. Even these are already equipped with strong magnet drivers, which enable, among other things, a high load capacity with up to 200 watts of music power.

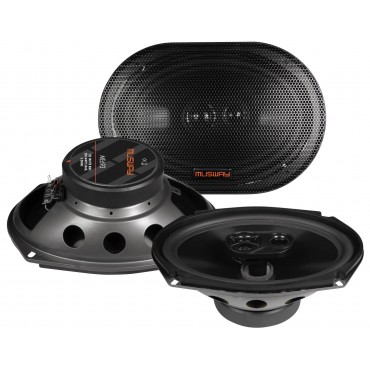

15 x 23“ CM (6 x 9”) 3-WAY TRIAXIAL-SPEAKERS

125 Watts/RMS, 250 Watts/MAX
Frequency Range 50 - 22000 Hz
Impedance 3 Ohms
Polypropylene-Cones
20/25 mm Neodymium-Tweeters
Protection Grilles
Installation Depth 74 mm
Installation Opening 151 x 220 mm
