Κάντε το κάθισμα του αυτοκινήτου σας το καλύτερο κάθισμα στο σπίτι.

Το αυτόνομο υπογούφερ Bass Pro SL2 μπαίνει τέλεια κάτω από το μπροστινό κάθισμα πολλών διαφορετικών οχημάτων και προσθέτει βαθιά, πλούσια μπάσα στο υπάρχον ηχοσύστημα του αυτοκινήτου σας. Το συμπαγές γούφερ 8″ που διαθέτει, συνδυάζεται με ένα προσαρμοσμένο περίβλημα και οδηγείται από έναν ισχυρό ψηφιακό ενισχυτή Class D που το καθιστά μια ισχυρή λύση για τον ήχο στο αυτοκίνητο. Ένα πλήρως μεταβλητό crossover και ένα Bass EQ είναι ενσωματωμένα για να συντονίσουν το Bass Pro SL2 στο δικό σας σύστημα.



Technical Specifications

• Woofer : 8" (200mm)


• Amplifier Power : 125W RMS


• Frequency Response : 35Hz – 120Hz


• Fuse : 15A


• Maximum Current Draw : 12A


• Quiescent Current Draw : <800mA


• Input Sensitivity : 0.05V – 2V Line-Level Input - 0.5V – 20V High-Level Input


• Crossover Frequency : 50Hz – 120Hz


• Crossover Slope : 12dB/octave


• Bass Boost : 0dB to +9dB @ 70Hz


• Dimensions (L x W x H) : 13-9/16" x 9-7/8" x 2-13/16" - (344mm x 250mm x 71mm)

Ακούστε εύκολα και ποιοτικά την μουσική και διασκεδάστε οποιαδήποτε στιγμή στο αυτοκίνητο.
Το JBL Celebrity 100 Headunit είναι 1DIN, Mechless Car MP3 player με αποσπώμενο πρόσωπο, ιδανικό για να ταιριάζει στα προϊόντα ηχείων JBL ως συνδυασμένο ηχοσύστημα.
Οι πολλαπλές επιλογές αναπαραγωγής όπως Bluetooth, είσοδος USB, βοηθητική είσοδος, κάρτα SD και ραδιόφωνο FM σάς επιτρέπουν να επιλέξετε ελεύθερα την αγαπημένη σας πηγή ακρόασης.

Χαρακτηριστικά και Οφέλη

• 1 Din Mechless Car MP3 player με αποσπώμενη πρόσοψη
  Αφαιρούμενη πρόσοψη για αποτροπή κλοπής.


• Πολλαπλές πηγές αναπαραγωγής: Bluetooth, USB, AUX in, Κάρτα SD, Ραδιόφωνο FM
  Επιλέξτε όποιες πηγές θέλετε να απολαύσετε μουσική.


• Ασύρματη αναπαραγωγή Bluetooth
  Υποστήριξη αναπαραγωγής ήχου καθώς και κλήσεις hands-free.


• 18 Προκαθορισμένοι Σταθμοί FM
  Απολαύστε να ακούτε τους αγαπημένους σας ραδιοφωνικούς σταθμούς κατά την οδήγηση.


• Μέγιστη ισχύς εξόδου 4 x 50 Watt
  Μπορεί να συνδυαστεί με ηχεία εισόδου JBL ως ηχοσύστημα σε πακέτο.


• Σύνδεσμος ISO (περιλαμβάνεται η πλεξούδα καλωδίωσης)
  Εύκολο στην εγκατάσταση, σας επιτρέπει να αντικαθιστάτε το εργοστασιακό στερεοφωνικό βολικά.

Τεχνικά Χαρακτηριστικά

• Power supply 12 V DC on-board network


• Rated Output Power 4 x 50 W peak


• Fuse rating 10 A


• Frequency response 20 Hz - 20 kHz


• Bluetooth Operating range up to 10 m


• Bluetooth Supported profiles HFP, HSP, A2DP, AVRCP


• FM Radio Frequency coverage 87.5 - 108 MHz


• Installation dimensions (W x H x D) 178 x 50 x 87 mm

---

Offer convenient access to your music and entertainment any time in the car.
JBL Celebrity 100 Headunit is Single-Din, Mechless Car MP3 player with Detachable face, perfect to fit JBL speaker products as a bundled audio system. Multiple playback options like Bluetooth, USB input, Auxiliary input, SD Card, and FM Radio allows you choose freely for your favorite listening source.

Features and Benefits

• 1 Din Mechless Car MP3 player with Detachable face
  Removable faceplate for theft-deterrent purpose.


• Multiple Playback Sources: Bluetooth, USB, AUX in, SD Card, FM Radio
  Choose whatever sources you want to enjoy music.


• Wireless Bluetooth Streaming
  Support audio streaming as well as hands-free calling.


• 18 Preset FM Stations
  Enjoy listening to your faourite radio stations during driving.


• 4 x 50 Watts Maximum Power Output
  Can be matched with JBL entry level speakers as a bundled audio system.


• ISO Connector (wiring harness included)
  Easy to install, allows you to replace factory stereo conveniently.

General Specifications:

• Power supply 12 V DC on-board network


• Rated Output Power 4 x 50 W peak


• Fuse rating 10 A


• Frequency response 20 Hz - 20 kHz


• Bluetooth Operating range up to 10 m


• Bluetooth Supported profiles HFP, HSP, A2DP, AVRCP


• FM Radio Frequency coverage 87.5 - 108 MHz


• Installation dimensions (W x H x D) 178 x 50 x 87 mm

---

Τεχνικό Εγχειρίδιο

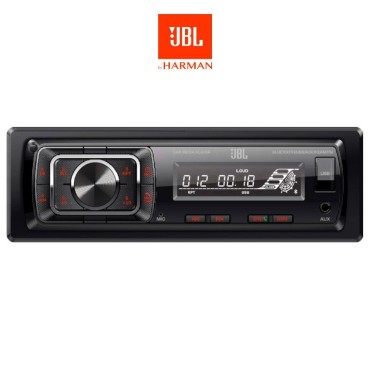

Το JBL Celebrity 150 Headunit είναι 1DIN, Mechless Car Media player με αποσπώμενη πρόσοψη, ιδανικό για να ταιριάζει σε προϊόντα ηχείων JBL ως συνδυασμένο ηχοσύστημα.
Πολλαπλές επιλογές αναπαραγωγής όπως Bluetooth, USB, AUX in, κάρτα SD, AM και ραδιόφωνο FM σάς επιτρέπουν να επιλέξετε ελεύθερα την αγαπημένη σας πηγή ακρόασης.

Χαρακτηριστικά και Οφέλη

• 1 Din Mechless Car Media player με αποσπώμενο πρόσωπο
  Αφαιρούμενη πρόσοψη για αποτροπή κλοπής


• Πολλαπλές πηγές αναπαραγωγής: Bluetooth, USB, AUX in, κάρτα SD, AM και ραδιόφωνο FM
  Επιλέξτε όποιες πηγές θέλετε να απολαύσετε μουσική


• Ασύρματη αναπαραγωγή Bluetooth
  Υποστήριξη ροής ήχου καθώς και κλήσεις hands-free


• 30 προκαθορισμένοι σταθμοί (18 FM / 12 π.μ.)
  Απολαύστε να ακούτε τους αγαπημένους σας ραδιοφωνικούς σταθμούς κατά την οδήγηση


• Έξοδος γραμμής RCA (2 ζεύγη, 4 βολτ)
  Η υψηλή τάση προενισχυτή σάς επιτρέπει να απολαμβάνετε καλύτερο ήχο


• Μέγιστη ισχύς εξόδου 4x50 Watt
  Μπορεί να συνδυαστεί με ηχεία & ενισχυτές JBL ως ηχοσύστημα σε πακέτο


• Σύνδεσμος ISO (περιλαμβάνεται η πλεξούδα καλωδίωσης)
  Εύκολη εγκατάσταση, σας επιτρέπει να αντικαθιστάτε βολικά το εργοστασιακό στερεοφωνικό

Τεχνικά Χαρακτηριστικά

• Power supply: 12 V DC on-board network


• Rated Output Power: 4 x 50 W peak


• Fuse rating: 10 A


• Frequency response: 20 Hz - 20 kHz


• Bluetooth Operating range: up to 10 m


• Bluetooth Supported profiles: HFP, HSP, A2DP, AVRCP


• FM Radio Frequency coverage: 87.5 - 108 MHz


• Installation dimensions (W x H x D): 178 x 50 x 87 mm

---

JBL Celebrity 150 Headunit is Single-Din, Mechless Car Media player with Detachable face, perfect to fit JBL speaker products as a bundled audio system.
Multiple playback options like Bluetooth, USB, AUX in, SD Card, AM and FM Radio allows you choose freely for your favorite listening source.

Features and Benefits

• 1 Din Mechless Car Media player with Detachable face
  Removable faceplate for theft-deterrent purpose


• Multiple Playback Sources: Bluetooth, USB, AUX in, SD Card, AM and FM Radio
  Choose whatever sources you want to enjoy music


• Wireless Bluetooth Streaming
  Support audio streaming as well as hands-free calling


• 30 Preset stations (18 FM / 12 AM)
  Enjoy listening to your faourite radio stations during driving


• RCA Line Output (2 pairs; 4-volt)
  High preamp voltage allow you to enjoy greater sound


• 4x50 Watts Maximum Power Output
  Can be matched with JBL speakers & amplifiers as a bundled audio system


• ISO Connector (wiring harness included)
  Easy to install, allows you to replace factory stereo conveniently

General Specifications:

• Power supply: 12 V DC on-board network


• Rated Output Power: 4 x 50 W peak


• Fuse rating: 10 A


• Frequency response: 20 Hz - 20 kHz


• Bluetooth Operating range: up to 10 m


• Bluetooth Supported profiles: HFP, HSP, A2DP, AVRCP


• FM Radio Frequency coverage: 87.5 - 108 MHz


• Installation dimensions (W x H x D): 178 x 50 x 87 mm

---

Τεχνικό Εγχειρίδιο

Επικό μπάσο. Απίστευτος ήχος.

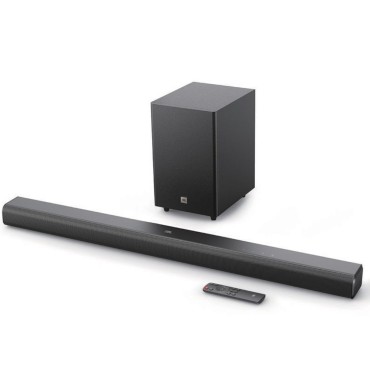

Απογείωσε τον ήχο σου με την ηχομπάρα JBL Cinema SB550 συστήματος 3.1 καναλιών. 250 watts δυνατού Dolby Audio σε compact design, συν έξτρα βαθύ, έξτρα τρανταχτό μπάσο από ένα ασύρματο subwoofer 5.25”  θα κάνει ό,τι βλέπεις όλο και πιο συναρπαστικό. Ένα ειδικό κεντρικό κανάλι ήχου σημαίνει ότι η τηλεόραση και ο διάλογος πάντα θα ακούγεται πεντακάθαρος. Το setup είναι πολύ απλό, με επιλογή σύνδεσης είτε ενός καλωδίου HDMI ARC ή συνδέσεων optical. Και όταν η τηλεόραση κλείνει, χάρις στη Bluetooth συνδεσιμότητά της, μπορείς να τη χρησιμοποιήσεις για streaming της αγαπημένης σου μουσικής ή podcast από οποιαδήποτε συσκευή.

---



---

Τεχνικό Εγχειρίδιο

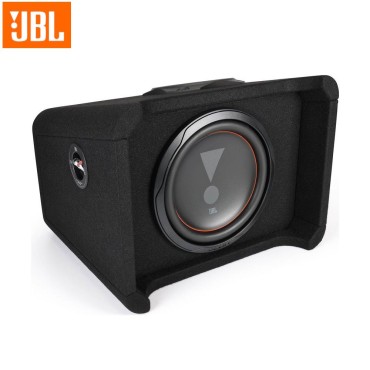

Club Series ported enclosure with one 10" 2-ohm Subwoofer



Join the bass club

JBL has long been known for great sound, whether it's professional sound reinforcement, home audio, or car audio. Now they've taken their years of expertise and created the Club Series subwoofer enclosures, engineered to give you maximum bass in less space.

Ride in the Slipstream

The Club Series enclosures are designed around JBL's patented Slipstream port design, which uses a double-flared design to reduce turbulence. You'll get the higher output of a ported enclosure with less distortion for louder, clearer bass. Rounded corners make the Club Series enclosures easier to fit into tight spots. The box is constructed of 11/16" medium-density fiberboard (MDF) to stand up to the stresses of road life, with black carpet covering that keeps its good looks for years to come.

Putting the "loud" in "loudspeaker"

The 1000P enclosure features a 10" 2-ohm subwoofer with a polypropylene cone and 2" voice coil that punches out up to 350 watts of RMS power (1050 watts peak) to give you plenty of low end. With lows down to 35 Hz, you'll hear detail you haven't heard before.

Specifications:

• Ported enclosure with one 10" 2-ohm subwoofer


• Polypropylene cone with rubber surround


• Enclosure made from 11/16" MDF covered with black carpet


• Patented Slipstream port design reduces port noise


• 2-ohm total impedance


• Power handling: 350 watts RMS (1050 watts peak)


• Frequency response: 35-400 Hz


• Sensitivity: 83 dB


• Dimensions: 44.5cm W x 37.5cm H x 34cm D1 x 26.4cm D2 (17.5"W x 14.75"H x 13.38"D1 x 10.38"D2)

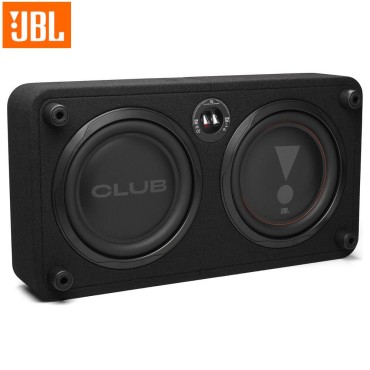

Club Series sealed enclosure with 10" 2-ohm subwoofer and 10" passive radiator

Join the bass club

JBL's decades of experience has given them the know-how to excel in all kinds of audio. Now they've taken their expertise and created the Club Series subwoofer enclosures, engineered to pump out thunderous bass with minimal distortion.

The JBL Club 1000SSL loaded enclosure puts a low-profile 10" subwoofer and a 10" passive driver in a downward-firing box designed specifically for the subwoofer. The second sub (called a "passive radiator") reacts to the air pressure produced by the active sub, reinforcing the low end for bigger thump than other compact subwoofer enclosures.

Built for big bass

The sub's polypropylene cone and nitrile rubber surround handles up to 350 watts of RMS power (1050 watts peak) and delivers lows down to 35 Hz for bass you can feel. The enclosure is wired to a single input with 2 ohms total impedance. The box is constructed of 3/4" medium-density fiberboard (MDF) to stand up to the stresses of road life, with a black carpet covering that keeps its good looks for years to come. Four plastic feet are included to raise the enclosure off the floor for better performance, and mounting brackets are included for security and safety. The removable logo badge can be placed wherever you like for a custom touch.

Specifications:

• Sealed downward-firing enclosure with one Club Series 10" subwoofer and 10" passive radiator


• 3/4" medium-density fiberboard construction covered with carpet


• 2-ohm total impedance


• Frequency response: 35-400 Hz


• Power handling: 350 watts RMS (1050 watts peak power)


• Sensitivity: 82.5 dB


• Dimensions: 63.2cm W x 14.6cm H x 33.7cm D (24.875"W x 5.75"H (with feet) x 13.25"D)

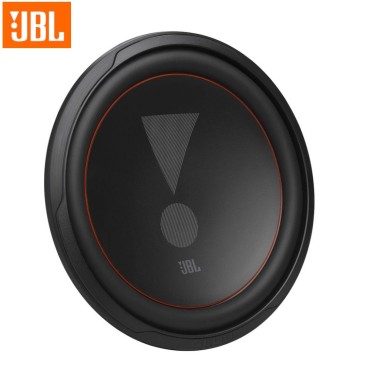

Club Series 10" component subwoofer with switchable 2- or 4-ohm impedance

JBL Club subwoofers deliver deep powerful bass that will take your system to the next level. Using our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver the goods. The JBL CLUB subwoofers are also happy in both sealed and bandpass box configurations, delivering powerful, punchy and accurate bass in all. They also feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance, 2 or 4 ohms for your chosen amplifier and overall system layout.

Quality and versatility

JBL began manufacturing audio equipment in 1946, and they've been responsible for major advancements in sound reproduction and reinforcement since then. Their latest Club Series car subwoofers put the spotlight on versatility, giving you the ability to vary the sub's impedance with the flip of a switch.

Selectable impedance

JBL's Club Series 122 sports a 2” diameter voice coil for exceptional power handling, while airflow from the cone's movement cools the voice coil for increased reliability. The sub's Selectable Smart Impedance (SSI™) switch allows you to change impedance from 2 ohms to 4 ohms, so you can optimize the sub for your amplifier. This feature makes it easy to reconfigure your system when you add another Club Series subwoofer or upgrade your amplifier.

Ready to rock

This sub features a stiff polypropylene cone and a responsive nitrile rubber surround for smooth, distortion-free sound. The stamped steel basket adds rigidity and its vented construction helps keep things cool. The Club 102 handles up to 350 watts RMS, and works equally well in sealed or ported enclosures, another example of its versatility.

Specifications:

• 10" component subwoofer


• Switchable 2- or 4-ohm impedance


• Polypropylene cone


• Nitrile rubber surround


• Power handling: 350 watts RMS (1050 watts peak)


• Frequency response: 35-500 Hz


• Sensitivity (2.83V at 1 meter): 83 dB


• Top-mount depth: 5"


• Cutout diameter: 11.125


• Grille not included

Club Series ported enclosure with one 12" 2-ohm Subwoofer

Join the bass club

JBL has long been known for great sound, whether it's professional sound reinforcement, home audio, or car audio. Now they've taken their years of expertise and created the Club Series subwoofer enclosures, engineered to pump out thunderous bass with minimal distortion.

Putting the "loud" in "loudspeaker"

The Club Series 1200P enclosure features a 12" 2-ohm subwoofer with a polypropylene cone and 2" voice coil that can handle up up to 400 watts of RMS power (1200 watts peak). With lows down to 30 Hz, you'll feel the bass in your bones. The enclosure is wired to a single input with 2 ohms total impedance.

Ride in the Slipstream

Club Series enclosures owe their great sound to JBL's patented Slipstream port design. Its double-flared design reduces turbulence and port noise, so you'll enjoy the higher output of a ported enclosure with less distortion. The box is constructed of 13/16" medium-density fiberboard (MDF) to stand up to the stresses of road life, with black carpet covering that keeps its good looks for years to come. Rounded corners make the Club Series enclosures easier to fit into tight spots.

Specifications:

• Ported enclosure with one 12" 2-ohm subwoofer


• Polypropylene cone with rubber surround


• Enclosure made from 11/16" MDF covered with black carpet


• Patented Slipstream port design reduces port noise


• 2-ohm total impedance


• Power handling: 400 watts RMS (1200 watts peak)


• Frequency response: 30-400 Hz


• Sensitivity: 86 dB


• Dimensions: 55.6cm W x 37.8cm H x 43.5cm D1 x 35.4cm D2 (21.88"W x 14.88"H x 17.13""D1 x 13.94"D2)

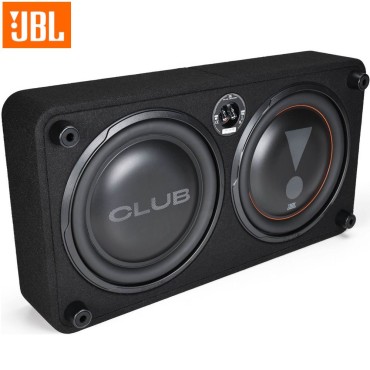

Club Series sealed enclosure with 12" 2-ohm subwoofer and 12" passive radiator

Join the bass club

JBL's decades of experience has given them the know-how to excel in all kinds of audio. Now they've taken their expertise and created the Club Series subwoofer enclosures, engineered to pump out thunderous bass with minimal distortion.

The JBL Club 1200SSL loaded enclosure puts a low-profile 12" subwoofer and a 12" passive driver in a downward-firing box designed specifically for the subwoofer. The second sub (called a "passive radiator") reacts to the air pressure produced by the active sub, reinforcing the low end for bigger thump than other compact subwoofer enclosures.

Built for big bass

The sub's polypropylene cone and nitrile rubber surround handles up to 400 watts of RMS power (1200 watts peak) and delivers lows down to 30 Hz for bass you can feel. The enclosure is wired to a single input with 2 ohms total impedance. The box is constructed of 3/4" medium-density fiberboard (MDF) to stand up to the stresses of road life, with a black carpet covering that keeps its good looks for years to come. Four plastic feet are included to raise the enclosure off the floor for better performance, and mounting brackets are included for security and safety. The removable logo badge can be placed wherever you like for a custom touch.

Specifications:

• Sealed downward-firing enclosure with one Club Series 12" subwoofer and 12" passive radiator


• 3/4" medium-density fiberboard construction covered with carpet


• 2-ohm total impedance


• Frequency response: 30-400 Hz


• Power handling: 400 watts RMS (1200 watts peak power)


• Sensitivity: 85 dB


• Dimensions: 70.2cm W x 16cm H x 37.2cm D (27.63"W x 6.31"H (with feet) x 14.63"D)

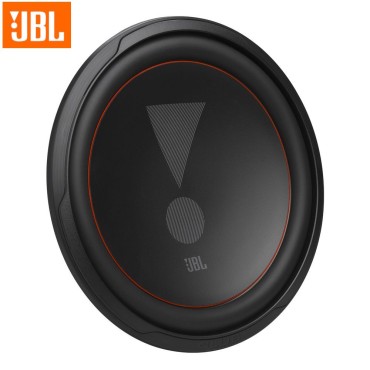

Club Series 12" component subwoofer with switchable 2- or 4-ohm impedance

JBL Club subwoofers deliver deep powerful bass that will take your system to the next level. Using our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver the goods. The JBL CLUB subwoofers are also happy in both sealed and bandpass box configurations, delivering powerful, punchy and accurate bass in all. They also feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance, 2 or 4 ohms for your chosen amplifier and overall system layout.

Quality and versatility

JBL began manufacturing audio equipment in 1946, and they've been responsible for major advancements in sound reproduction and reinforcement since then. Their latest Club Series car subwoofers put the spotlight on versatility, giving you the ability to vary the sub's impedance with the flip of a switch.

Selectable impedance

JBL's Club Series 122 sports a 2” diameter voice coil for exceptional power handling, while airflow from the cone's movement cools the voice coil for increased reliability. The sub's Selectable Smart Impedance (SSI™) switch allows you to change impedance from 2 ohms to 4 ohms, so you can optimize the sub for your amplifier. This feature makes it easy to reconfigure your system when you add another Club Series subwoofer or upgrade your amplifier.

Ready to rock

This sub features a stiff polypropylene cone and a responsive nitrile rubber surround for smooth, distortion-free sound. The stamped steel basket adds rigidity and its vented construction helps keep things cool. The Club 122 handles up to 400 watts RMS, and works equally well in sealed or ported enclosures, another example of its versatility.

Specifications:

• 12" component subwoofer


• Switchable 2- or 4-ohm impedance


• Polypropylene cone


• Nitrile rubber surround


• Power handling: 400 watts RMS (1200 watts peak)


• Frequency response: 30-500 Hz


• Sensitivity (2.83V at 1 meter): 86 dB


• Top-mount depth: 5"


• Cutout diameter: 11.125


• Grille not included

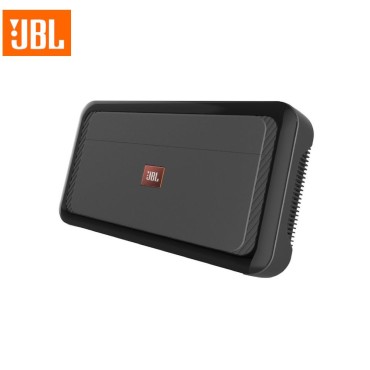

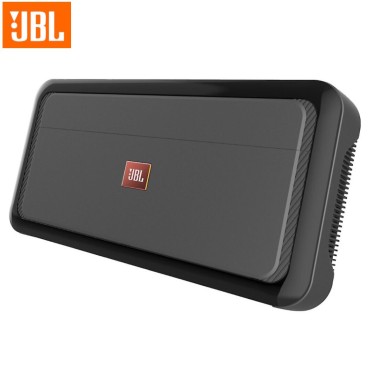

Value engineered car amplifier with JBL power and performance

General Specifications

•

  5 channel car amplifier




•

  50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms




•

  65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms




•

  140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms




•

  variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels




•

  low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel




•

  bass boost on subwoofer channel (0-12dB at 45Hz)




•

  phase switch on subwoofer channel (0, 180 degrees)




•

  preamp and speaker-level inputs




•

  fuse rating30A x 3




•

  4-gauge power and ground leads recommended — wiring and hardware not included with amplifier




•

  WxHxD=360mm x 51.3mm x 180mm WxHxD=14-3/16” x 2-1/16" x7-1/8”

General Specifications

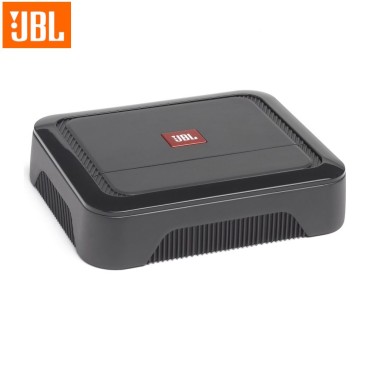

• 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)


• Class D amp technology


• variable low-pass filter (32-320 Hz, 12 dB/octave)


• variable bass boost (0-12 dB at 45Hz)


• phase switch (0, 180 degrees)


• preamp and speaker-level inputs


• fuse rating : 30A x 2


• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier


• W x H x D = 220mm x 51.3mm x 180mm - W x H x D =8-11/16” x 2-1/16" x7-1/8”

Value engineered car amplifier with JBL power and performance

General Specifications

• 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms) : Yes


• Class D amp technology : Yes


• variable low-pass filter (32-320 Hz, 12 dB/octave) : Yes


• variable bass boost (0-12 dB at 45Hz) : Yes


• phase switch (0, 180 degrees) : Yes


• preamp and speaker-level inputs : Yes


• fuse rating : 30A x 2


• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier : Yes


• W x H x D=220mm x 51.3mm x 180mm - W x H x D =8-11/16” x 2-1/16" x7-1/8”

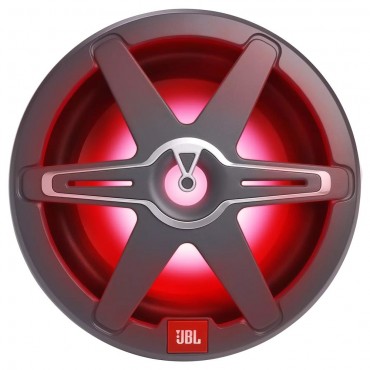

High performance marine audio multi-element speakers and subwoofer systems engineered to meet the demands of extreme environments.

Functions:

• RGB Lighting


• IPx5 rating


• Performance in outdoor environment


• Maritime design


• Balanced Dome Tweeters


• Designed for all weather conditions


• Individually tuned


• Harman Standard Reliability Testing


• JBL Quality and Performance

Audio Specifications

• 1x Subwoofer


• 1x Speaker Grille, Gloss White


• 1x Speaker Grille, Satin Grey


• Stainless steel mounting hardware


• Drill bit for easy installation


• Foam gasket


• 1x Speaker Pigtail Harness


• 1x RGB Pigtail Harness


• 2x JBL sticker


• Quick Start Guide

---

Τεχνικό Εγχειρίδιο

High performance marine audio multi-element speakers and subwoofer systems engineered to meet the demands of extreme environments.

Functions:

• RGB Lighting


• IPx5 rating


• Performance in outdoor environment


• Maritime design


• Balanced Dome Tweeters


• Designed for all weather conditions


• Individually tuned


• Harman Standard Reliability Testing


• JBL Quality and Performance

Audio Specifications

• 2x Full-Range Speakers


• 2x Speaker Grilles, Gloss White


• 2x Speaker Grilles, Satin Grey


• Stainless steel mounting hardware


• Drill bit for easy installation


• Foam gasket


• 2x Speaker Pigtail Harness


• 2x RGB Pigtail Harness


• 2x JBL sticker


• Quick Start Guide

---

Τεχνικό Εγχειρίδιο
