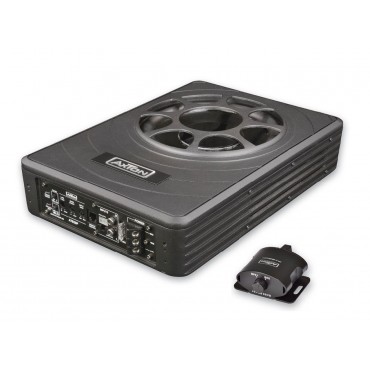

More Information all about the ATB25P active under-seat bass subwoofer It could hardly be more compact - this is the motto of AXTON's new ATB25P active subwoofer with passive membranes. About the size of an A4 page and a minimum height of 81 mm, the small Under Seat subwoofer can be installed almost anywhere in the car - as the name suggests, even under the driver's or passenger seat. Highlights 10"/25 cm active subwoofer with 2 passive cones for deep, powerful bass Die-cast aluminum housing Controls and connections are located at the front - especially practical if the subwoofer is installed under a vehicle seat Integrated 180 W RMS Class A/B amplifier RCA cinch input High-level input with Auto-Turn-On Phase switch 0/180° Low pass filter 50 - 150 Hz, subsonic filter at 20 Hz Bass boost 0 - 18 dB @ 45 Hz Bass level remote control

  Specifications 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 2 x coaxial speakers Vehicle compatibility list BMW front doors: F06, F12, F13, F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F36, F39, F40, F44, F45, F46, F48, F49, F80, F82, F83, F87, G01, G02, G05, G06, G11, G12, G20, G21, G22, G23, G28, G30, G31, G32, G80, L15 (i8) BMW back doors: F06, F25, F26, F30, F31, F34, F36, F39, F40, F44, F48, F49, F80, G01, G02, G05, G06, G11, G12, G20, G21, G28, G30, G31, G32, G80 BMW rear shelf: F23, F32, F33, F45, F46, F82, F83, G22, G23 MINI front doors: F54, F55, F56, F57, F60 MINI backdoors: F54, F55, F56, F57, F60

AXTON SPECIFIC 2-way Compo for BMW 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 2 x midrange, 2 x tweeter, 2 x crossover, 2 x tweeter adapter Specifications Impedance  4 Ohm Rated power  60 W RMS Frequency response  85 Hz - 22 kHz/div> Sensitivity 1W/1m  85 dB Vehicle compatibility list BMW front doors: E63, E64, E81, E82, E84, E87, E88, E90, E91, E92, E93, F10, F11 BMW back doors: E91, F10, F11 BMW side panel rear: E63, E64, E88, E92, E93, F12, F13

ATS-B101X AXTON SPECIFIC 2-way Compo for BMW 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 2 x coaxial speakers Vehicle compatibility list BMW front doors: E63, E64, E81, E82, E84, E87, E88, E90, E91, E92, E93, F10, F11, F12, F13 BMW back doors: E91, F10, F11 BMW rear shelf: E63, E64, E88, E92, E93, F12, F13

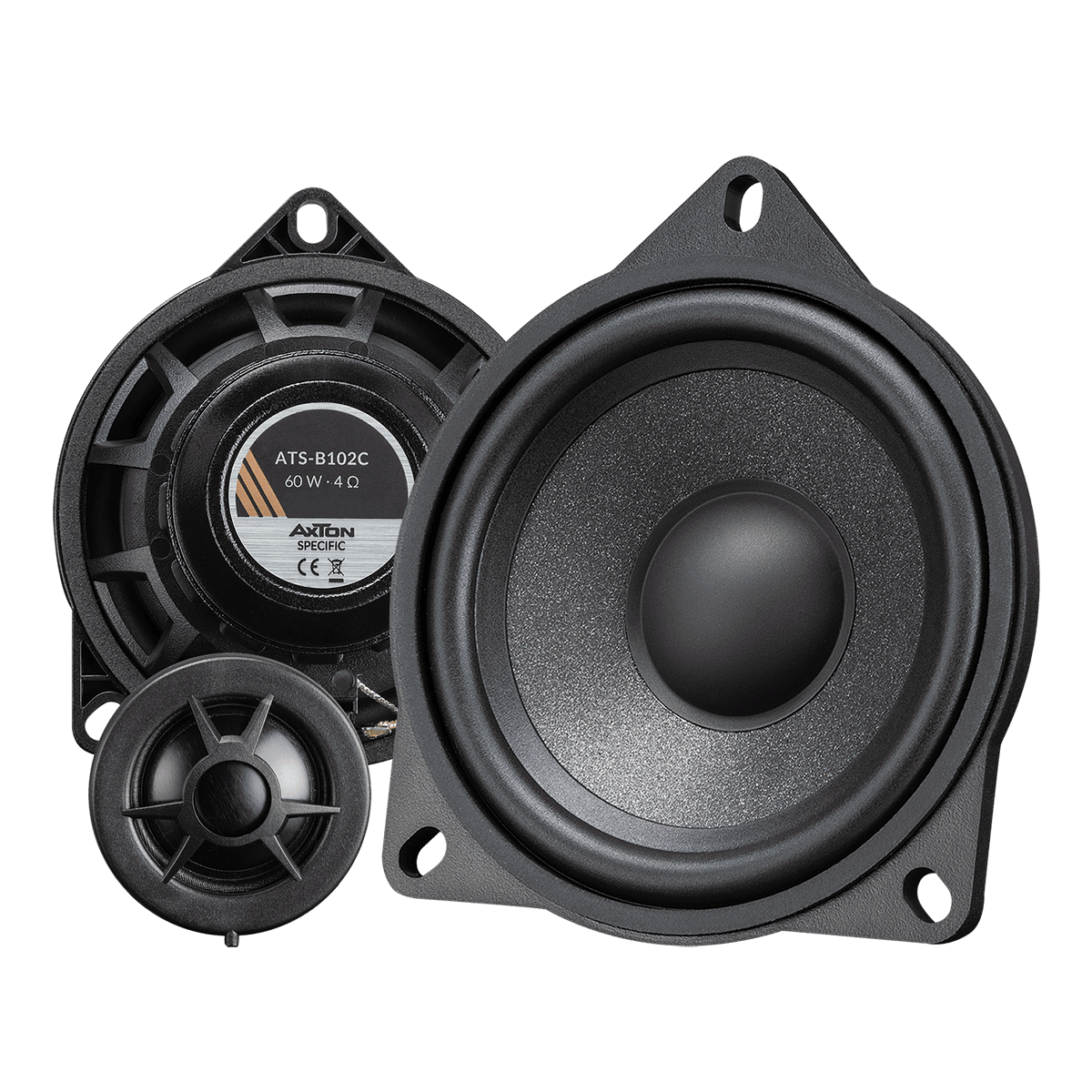

ATS-B102C AXTON SPECIFIC 2-way Compo for BMW 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 2 x midrange, 2 x tweeter, 2 x crossover, 2 x tweeter adapter MIDRANGE 10 cm Component Speaker System OE-Fitting Composite Basket OE-Fitting Connectors Neodymium Magnet Motor AXTON CRYSTAX Cone Rubber Surround NOMEX Spider 25 mm Voice-Coil bobbin TWEETER 25 mm Black Aluminum Dome Tweeter Cloth Surround Ferrofluid-cooled Voice-Coil 12 dB / Oct. In-Line Crossover network OE-Fitting Connectors Horn Mounting Adapters included Vehicle compatibility list BMW front doors: E60, E61, E65, E66, E70, E71, E83, E89, F01, F02 BMW back doors: E60, E61, E65, E66, E70, E71, E83, E89, F01, F02 BMW rear shelf:: E60, E81, E82, E84, E87, E88, F01, F02, F06, F10, F13, F22, F87, G11, G12, G30 Only from Harman Kardon system: F32, F33, F34, F36, F82, F80, G20, G22, G28, G80

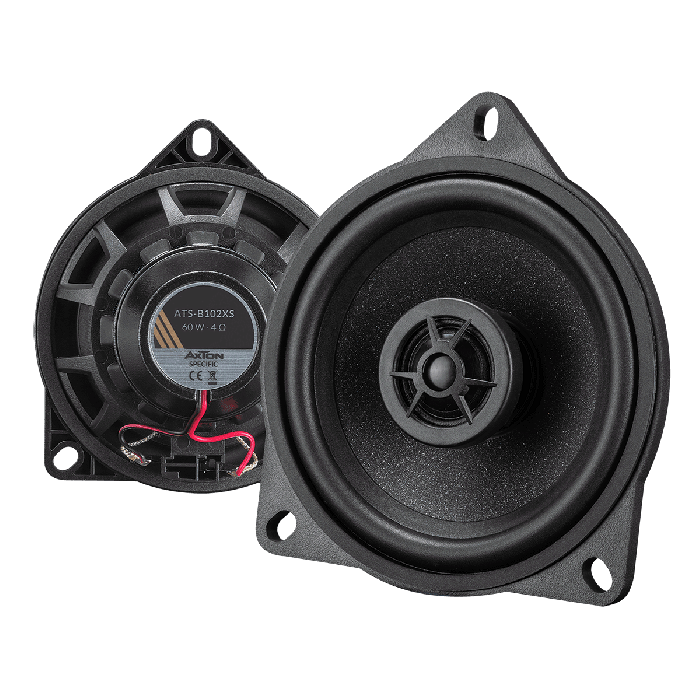

ATS-B102XS AXTON SPECIFIC 2-way coax center speaker for bmw 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 1 x coaxial speaker Vehicle compatibility list BMW Center in dashboard: E63, E64, E84,E90, E91, E92, E93, L15 - also in any model of the series F and G BMW front doors: E60, E61, E65, E66, E70, E71, E83, E89, F01, F02 BMW back doors: E60, E61, E65, E66, E70, E71, E83, E89, F01, F02 BMW rear storage: E60, E81, E82, E84, E87, E88, F01, F02, F06, F10, F13, F22, F87, G11, G12, G30 BMW Only from Harman Kardon system: F32, F33, F34, F36, F82, F80, G20, G22, G28, G80 Roof liner: E61, F07, F11, F15, F16, F25, F85, G05, G06, G31 MINI Center in dashboard: F54, F55, F56, F57, F60 MINI front doors: R60, R61 MINI back doors: R60, R61

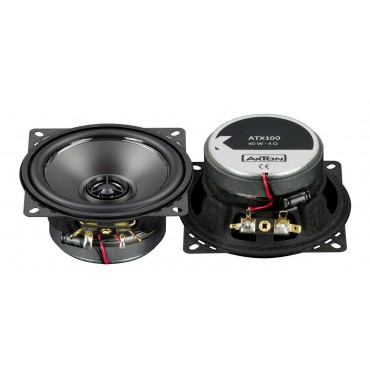

Highlights 10 cm EURO-DIN 2-way coaxial system 2-way coaxial system designed as a point source for realistic music reproduction 13 mm tweeter with Mylar dome and neodymium magnet Strontium ferrite magnet for the mid-bass driver Low resonance polypropylene membrane NBR Nitrile rubber surround Ventilated NOMEX centering spider Polyimide voice coil former hard gold-plated, corrosion-resistant plug contacts LS grille included in delivery Specifications Frequency Response 85 Hz – 25 kHz Nominal impedance 4 Ohm Sensitivity (1 W/1 m) 86 dB Rated load capacity 40 Wrms Mounting diameter 93 mm Installation depth 42 mm

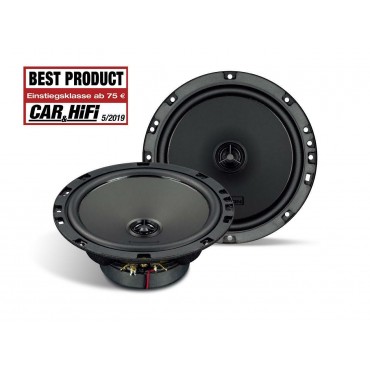

More Information All about the ATX165 speaker Our new coaxial loudspeakers from the ATX series are designed as point source speakers. The 13 mm dome is on the same level as the woofer membrane and thus enables in-phase radiation of the respective frequency components. Phase shifts in the transition range of the frequency components, as they occur with conventional protruding tweeters, are thus a thing of the past. The result is a transparent, clear music reproduction with high dynamics. Highlights 16.5 cm EURO-DIN 2-way coaxial system 2-way coaxial system designed as point source for realistic music reproduction 13 mm tweeter with Mylar dome and neodymium magnet Strontium ferrite magnet for the mid-bass driver Low resonance polypropylene membrane NBR Nitrile rubber surround NOMEX centering spider Polyimide voice coil former Hard gold-plated, corrosion-resistant plug contacts LS grille included in delivery Specifications Frequency Response 60 Hz – 22 kHz Nominal impedance 4 Ohm Sensitivity (1 W/1 m) 91 dB Rated load capacity 90 Wrms Mounting diameter 146 mm Installation depth 59 mm

Αξεσουάρ υψηλής τεχνολογίας για τους ενισχυτές AXTON A542DSP και A592DSP: Με τη διεπαφή ροής ήχου ATB50, τα αρχεία ήχου Hi-Res - και φυσικά όλα τα συμβατικά δεδομένα μουσικής - μπορούν να αναπαραχθούν μέσω Bluetooth με το πρότυπο APTX-HD μέσω του ηχοσυστήματος αυτοκινήτου . Απλώς συνδέστε τη μονάδα ροής ABT50 στο A542DSP ή A592DSP και απολαύστε την αγαπημένη σας μουσική στην καλύτερη ανάλυση ήχου. Ανάλογα με τη μορφή, τα δεδομένα ήχου Hi-Res προσφέρουν το υψηλότερο δυναμικό εύρος και ανάλυση στην αρχική κύρια ποιότητα στούντιο. Αυτό ωφελεί τη χωρικότητα και τη διαφάνεια, αλλά και εξασφαλίζει ένα ογκώδες μπάσο. Βασικά χαρακτηριστικά - Bluetooth APTX-HD chipset για ασύρματη ροή μουσικής ήχου υψηλής ανάλυσης - Ο μετατροπέας D/A υποστηρίζει έως και 196 kHz / 24 bit - Ομοαξονική έξοδος συμπεριλαμβανομένης της παροχής ρεύματος - Συμβατό OTG για απευθείας και ασυμπίεστη μετάδοση μουσικής - Οπτική έξοδος με σύνδεση Toslink Διαστάσεις (ΜxΠxΥ): 80 x 35 x 18 mm Πεδίο εφαρμογής: μονάδα ροής, συμπεριλαμβανομένου του τοποθετημένου καλωδίου ομοαξονικής σύνδεσης 17 cm Σημείωση: Το τηλεχειριστήριο A592DSP-RC απαιτείται για τη ρύθμιση της έντασης, εάν το ABT50 είναι συνδεδεμένο στον ενισχυτή DSP και τα δεδομένα μουσικής μεταδίδονται αποκλειστικά μέσω του καλωδίου OTG του iPhone.

Specifications Rated load capacity  70 Wrms Nominal impedance   4 Ohm Frequency Response  70 Hz – 22 kHz Sensitivity (1 W/1 m)  86 dB Mounting diameter  116 mm Installation depth  43 mm Highlights 13 cm 2-way coaxial system 2-way coaxial system designed as point source for realistic music reproduction 13 mm tweeter with Mylar dome and neodymium magnet Precision-made composite basket Strontium ferrite magnet for the mid-bass driver Low resonance polypropylene membrane NBR Nitrile rubber surround Backvented NOMEX centering spider Polyimide voice coil former hard gold-plated, corrosion-resistant plug contacts LS grille included in delivery

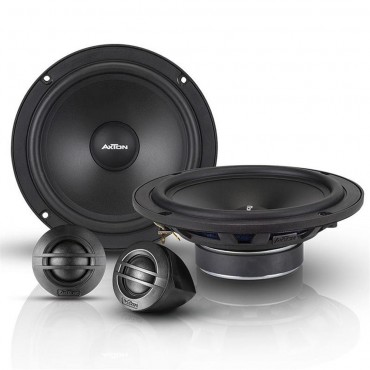

BASS/MIDRANGE DRIVER Precision-made sheet steel basket Strontium Ferrite Magnet Low resonance polypropylene membrane A linear working bead of NBR nitrile rubber Ventilated NOMEX spider Voice coil on polyimide carrier Ventilated Nomex centering spider Hard gold-plated, corrosion-resistant plug contacts LS grille included in delivery TWEETER 25 mm tweeter with fabric dome Diffuser for best spatial imaging Powerful neodymium magnet with ferrofluid cooling Level reduction for the tweeter -3 dB/0 dB Including a mounting adapter for surface and recessed installation TECHNICAL DATA Manufacturer: AXTON Product titel: ATC165S Product type: 2-way loudspeaker component system Nominal power handling: 90 Watts Maximal power handling: 120 Watts Mounting diameter: 145 mm Installation depth: 47 mm Frequency response: 60 Hz – 25 kHz Nominal impedance: 4 Ohm Sensitivity (1 W / 1 m): 91 dB Weight (incl. packaging): 2.8 kg Colour: black SCOPE OF DELIVERY 1x AXTON - ATC165S - 2-way loudspeaker component system consisting of: 2x mid/woofers 2x tweeters 2x crossovers 2x grilles for mid/woofers 1x set of mid/woofer mounting hardware 2x tweeter flat surface mounting adapter 2x tweeter angled mounting adapter 1x instruction manua

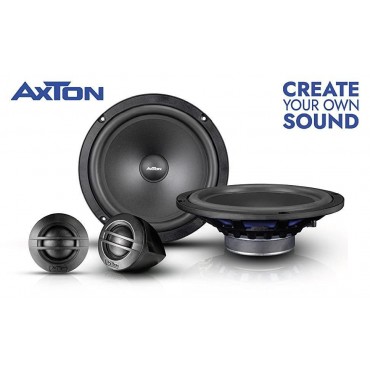

The ATC200S can easily replace the factory-installed components: the woofers can be swapped 1:1, and there is no need to install a common crossover for the mid/woofer and tweeter. A crossover is located directly on the woofer, which is included in the scope of delivery and has a compact 6 dB/oct. Tweeter crossover (with 0/-3 dB level reduction) can be conveniently placed behind the panel.   KEY FEATURES - Bass/midrange driver with strontium ferrite magnet, polypropylene injection-molded membrane, NBR nitrile rubber surround, centering spider made of Nomex, voice coil carrier made of polyimide - Tweeter with 25 mm fabric dome, ferrofluid-cooled neodymium drive, voice coil carrier made of polyimide, including mounting adapters - Compact 6 dB/Oct. Inline crossover, treble level adjustable in two levels (0/- 3 dB) on the crossover - Scope of delivery: 2 x bass/midrange speakers, 2 x bass/midrange speaker covers, 2 x tweeters, 2 x inline tweeter crossovers, 2 x tweeter installation housings each, mounting accessories   TECHNICAL DATA - Rated power rating: 100 watts RMS - Frequency response: 60Hz - 25kHz - Impedance: 4 ohms - Sensitivity: 92dB - Installation ø: 184 mm, installation depth: 57 mm

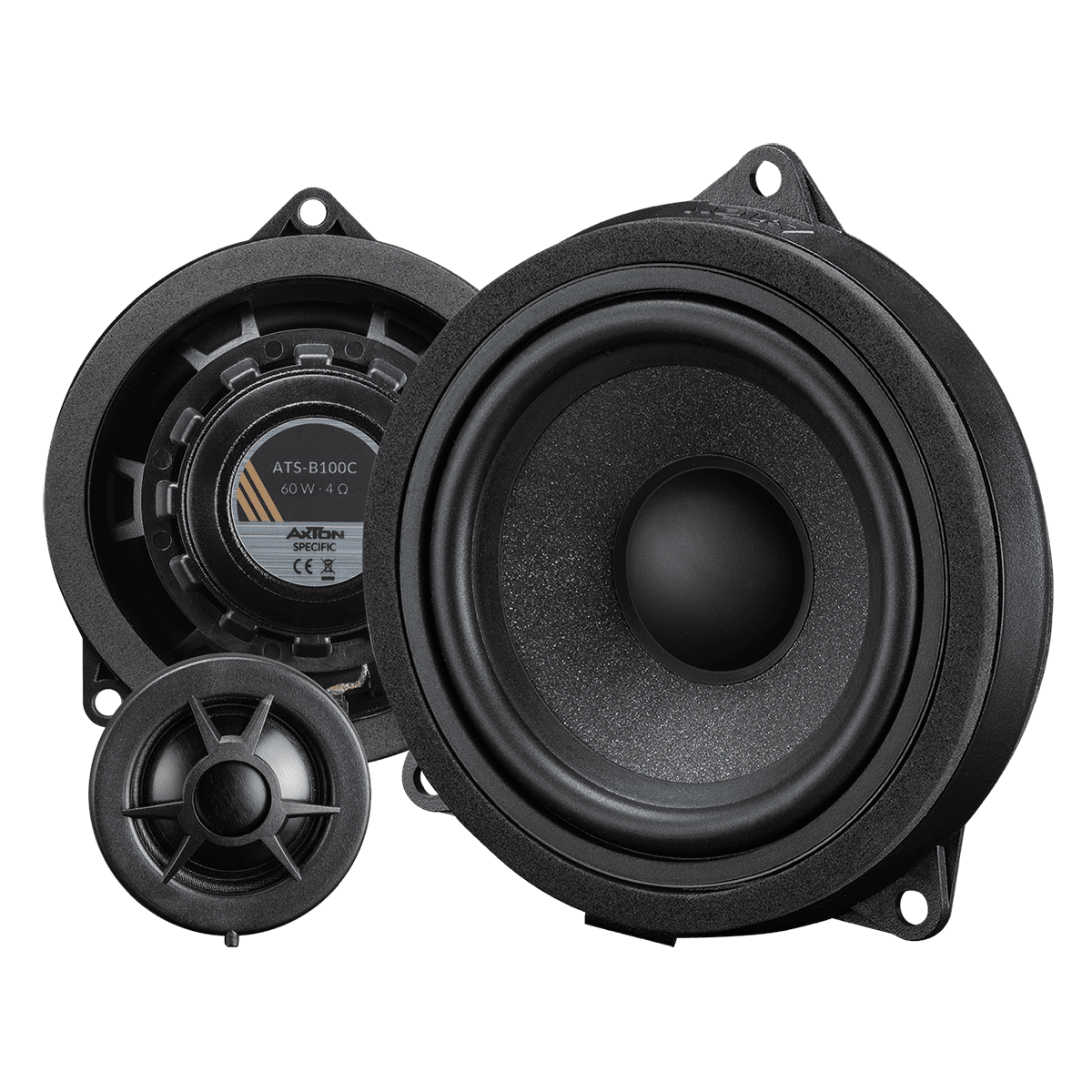

AXTON SPECIFIC ATS-B100C 2-way compo for BMW Specifications 2-way component speaker system for BMW vehicles Impedance 4 Ohm Rated power 60 W RMS Frequency response 85 Hz - 22 kHz Scope of delivery: 2 x midrange, 2 x tweeter, 2 x crossover, 2 x tweeter adapter Vehicle compatibility list BMW front doors: F06, F12, F13, F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F36, F39, F40, F44, F45, F46, F48, F49, F80, F82, F83, F87 G01, G02, G05, G06, G11, G12, G20, G21, G22, G23, G28, G30, G31, G32, G80 L15 (i8) BMW back doors: F06, F25, F26, F30, F31, F34, F36, F39, F40, F44, F48, F49, F80 G01, G02, G05, G06, G11, G12, G20, G21, G28, G30, G31, G32, G80 BMW side panel rear: F23, F32, F33, F45, F46, F82, F83, G22, G23 MINI frond doors: F54, F55, F56, F57, F60 MINI back doors: F54, F55, F56, F57, F60

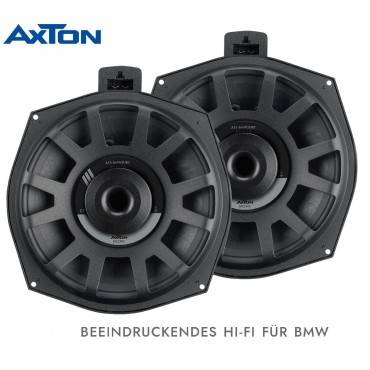

AXTON ATS-BSUB4 8", 20 cm car underseat subwoofer underseat bass plug & play underseat bass compatible with BMW and MINI vehicles BMW E6x, E7x, E8x, E9x, F0x, F2x, F3x, F4x, F5x, F8x, G11, G12, G30 , G31, G38, I8 20 cm under-seat subwoofer for BMW cars Impedance 2 Ohm (per subwoofer) Rated power 150 W RMS Frequency response 35 Hz - 200 Hz Scope of delivery: 2 x under-seat bass MINI F5x, F60, R60, R61 BMW E6x, E7x, E8x, E9x, F0x, F2x, F3x, F4x, F5x, F8x, G11, G12, G30, G31, G38, I8 BMW 1 series type F20/21 BMW 1 series type E81/82/87/88 2004 - 2011 BMW 2 series type F22/23 from 2013 BMW 3 series type F30/31/34/35 from 2012 BMW 3 series type G20/21 from 2019 BMW 3 series type E90/91/92/93 2005 - 2013 BMW 4 series type F32/33/36 from 2013 BMW 5 series type F10/11 from 2010 BMW 5 series type E60/61 2003 - 2010 BMW 6 series type F06/12/13 from 2011 BMW 7 Series Type F01 from 2008 BMW 7 series type E65/66/67/68 2001 - 2008 BMW X1 type E84 from 2009 BMW X3 type F25 from 2010 BMW X3 Type E83 2003 - 2010 BMW X4 type F26 from 2014 BMW X5 type F15 from 2013 BMW X5 Type E70 2006 - 2013 BMW X6 type F16 from 2014 BMW X6 Type E71 2008 - 2014 BMW Z4 type E89 from 2009 BMW X1 type F48 from 2015 BMW 5 series type G30/31 from 2017

Highlights Extremely powerful 120 mm single magnet High strength glass fibre/foam/paper membrane 38 mm double voice coil with copper wire Temperature resistant polyimide voice coil former Ventilated sheet steel basket Durable ConnexTM centering spider and rubber surround Corrosion-resistant, gold-plated contact terminal Magnetic protection with AXTON logo Low installation depth 79 mm Specifications Frequency Response 65 - 400 Hz Nominal impedance 2 x 2 Ohm Sensitivity (1 W/1 m) 84 dB Rated load capacity 75 W RMS Maximum load capacity 150 W max Mounting diameter 145 mm Installation depth 79 mm
