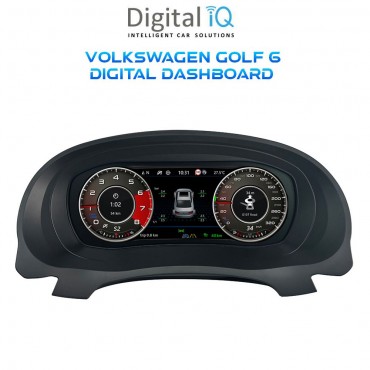

12.5¨ Digital Instrument Cluster (Dashboard) for VW GOLF 6 mod. 2008-2013

Digital Instruments Cluster (Dashboard) | Original Analog Instrument Cluster Upgrade

Features

• Intelligent control: Intelligent monitor can show your car informations in real time.


• Customization: Easily and widelly customizable.


• Eight view mode: intelligent control of the whole car.
  1. Classic mode,
  2.Exercise mode,
  3.Digital mode,
  4.Gear and speed mode,
  5.Consumption and mileage,
  6.Economic mode,
  7.Driving assistance mode,
  8.Navigation mode.


• 12.5inch Screen 1920x720 HD IPS screen with 60fps.


• Linux Operating system.


• Supporst Mobile phone wireless projection screen.


• Supports original car’s Bluetooth phone call or music play.


• Supports CarPlay & Android Auto.


• WIFI remote upgrade.


• Easy Installation.

Specifications

• CPU: RENESAS Car gauge chip ---R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature - 40 ° C ~ + 105 ° C.


• GPU is imaging's powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s.


• Dual LVDS output or RGB output, support resolution 1920* 720@60fps.


• Three CVBS inputs.


• HDMI input or LVDS input 1920* 720@60fps.


• Supports 2-way SD card interface.


• 2-way USB 2.0 interface.


• Audio in / out.


• 2-way can.


• 4-way serial port, 2-way I2C, 2-way SPI


• Length: 454mm.


• Width: 234mm


• Height: 230mm.


• Weight: 2kg

12+12 μήνες εγγύηση Ελληνικής αντιπροσωπείας εφόσον η τοποθέτηση γίνει σε εξειδικευμένο συνεργείο.
