450 Watts RMS

12” subwoofer with shallow installation depth

• 12″ flat subwoofer
• Efficient ferrite motor
• Paper sandwich cone
• Durable rubber surround
• Shallow GZ-design steel basket
• 50 mm / 2″ copper voice coil
• Polycot spider
• Aluminum dust cap

• Model	High-Quality SPL Subwoofer
  Diameter	30 cm / 12″
  Power handling (RMS)	450 Watts
  Impedance	2x 2 Ohms
  Efficiency	84 dB
  Power recommendation	200 – 800 Watts
  Voice coil	50 mm / 2″ copper
  Cone	Paper sandwich cone
  Max. Excursion (Xmax)	30 mm / 1.18″
  Mounting diameter	278 mm / 10.94″
  Mounting depth	93 mm / 3.66″
  Resonance frequency (Fs)	23.5 Hz
  Damping ratio (Qts)	0.44
  Equiv. air volume (Vas)	60,2 L / 2.13 cu.ft.

Size: 15inch

Cone: Competition  Grade Paper

Surround material: Foam

Voice coil: 3.0inch

RMS Power: 800Watt

Sensitivity: 89.2dB

Resonance frequency(f0): 33.1Hz

Magnet Weight: 110Oz

Size: 15inch

Cone: Competition  Grade Paper

Surround material: Foam

Voice coil: 3.0inch

RMS Power: 800Watt

Sensitivity: 88.7dB

Resonance frequency(f0): 34.3Hz

Magnet Weight: 110Oz

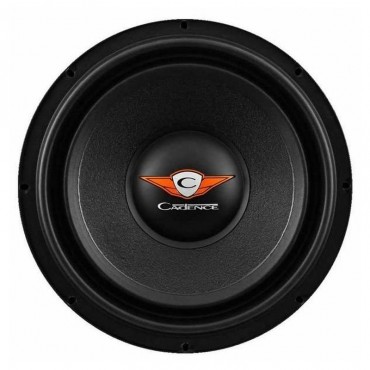

• 15" Dual 2-Ohm S1 Series Subwoofer


• Power Handling:



  • Peak: 1200 watts


  • RMS: 600 watts






• Pressed Paper Pulp Cone


• Double Laminated Foam Surround for High Speed Bass Response


• Expanded and Rolled Steel Basket


• Magnet Motor Heatsink with Heat Pump Cooling Technology


• Aero Style Oversized Magnet Motor Vent


• Linear Progressive Conex Spiders


• Integrated High-Current Tinsel Leads


• Black Aluminum 4 Layer Voice Coil


• Ultra Saturated, High “BL” Magnetic Motor Gap


• One Piece Extended Pole Technology


• Oversize Double Laminated Stitched Surround


• Dual Nickel Plated Spring Loaded Push Terminals


• Fiber Reinforced Ultra-Stiff Paper Composite Cone


• 3-D Injected Poly Dustcap


• Stylized Protective Rubber Magnet Boot Cover


• Molded Plastic Trim Gasket


• Frequency Response: 10 - 750 Hz


• Magnet Weight: 66 oz


• Sensitivity: 89 dB

40.4 L / 1.43 cu.ft.

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

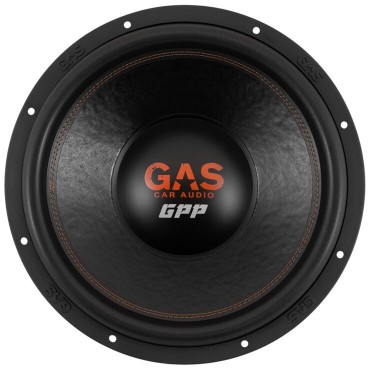

The GAS GPP460D1 is the largest base of the GPP series at a gigantic 18 inches, and here we are talking about a base that can handle the very lowest frequencies! The massive cone area and long stroke mean that this bass moves air like not many others! The improved motor system and the strong magnet means that it also has full control, regardless of frequency!

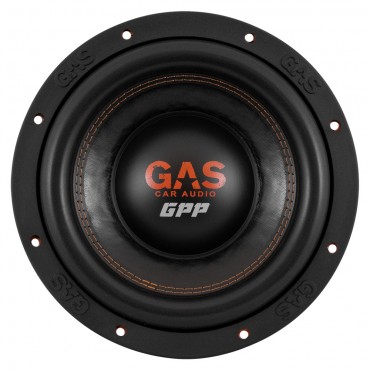

The GAS GPP250D1 is a 10 inch bass that works for most things, regardless of whether the idea is to play proper deep bass or have a tight and rapping bass for your hard rock songs! The optimized TS parameters and long Xmax mean that the bass also works perfectly for the SQ build!

TYPE:                               Subwoofer
SIZE:                                10″
POWER (RMS):               1500W
POWER (MAX):               3000W
IMPEDANCE:                  2×1 ohm
UNIT:                                Single

• 15" 30cm SPL subwoofer 2+2 ohms


• 500W RMS


• Fs: 29 Hz


• QMS: 7.34


• QES: 0.67


• QTS: 0.61


• VAS: 87.8L


• SPL: 86.9 dB 1W/m


• Re: 1.8+1.8 Ohm


• Xmax: +/-11mm


• 75mm voice coil (3in)


• paper membrane


• ventilated air gap, pole core bore


• magnet diameter 156mm


• Installation depth: 188m

Technical Specs

General

Weight

5.24 kg

Dimensions

Dimension A	270 mm
Dimension B	233 mm
Dimension C	105 mm
Dimension D	88 mm
Dimension C1	119 mm
