Features

DSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz
Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit
HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources
Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS
Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB
Total Harmonic Distortion: Analog Input <0.0015%, Digital Input <0.0009%
REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
Optional Accessories: BT-D (Bluetooth® Module), RC-DQ (LCD Remote Controller)

Specifications
Digital 6-Channel Sound Processor
6 x RCA Input, balanced
6 x High Level Input with EPS PRO up to 40 V/RMS (via Molex)
1 x USB Type B Socket for PC Software
1 x RJ45 Socket for Remote Controller
6 x RCA Output @ 6 V RMS
Dimensions 105 x 40 x 185 mm


Downloads
Owner's Manual
DSP Software
ESX Toolkit App Quick Start Guide
Test Review




DSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz
Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit
HP/LP/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
Input Mixer, Subwoofer Controller, Preset Auto Switch, Priority Input Mode
Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS
Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB
Optical S/PDIF Input
Total Harmonic Distortion: Analog Input <0.0015%, Digital Input <0.0009%
Optional Accessories: BT-D (Bluetooth® module), RC-DQ (LCD remote control)

Digital 6-Channel Signal Processor with 8-Channel Output

Input:
6 x RCA Input, balanced
6 x High Level Input (via Molex Connector)
1 x Optical stereo, S/PDIF 192 kHz, 24 bit
1 x USB Type B for PC Software
1 x RJ45 for Remote Controller / Extension Cable
1 x Power Input incl. REM OUT and MODE switch pin

Outputs:
6 x RCA @ 6 V RMS

Dimensions:
105 x 40 x 185 mm

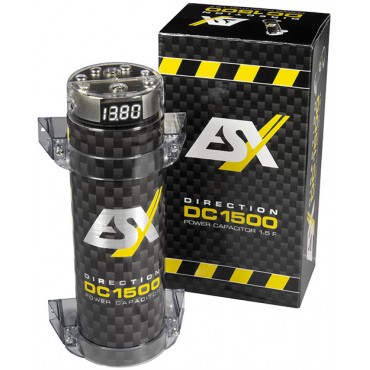

The DIRECTION DC1500 power capacitor with integrated distribution block provides more consistent power, sound enhancement and bass performance for the amp. With true 1.5 Farad capacity, it catches down unwelcome voltage fluctuations and stabilizes the entire sound system. Thanks to the integrated distribution block, the DC1500 is very versatile to use.
1.5 Farad Power Capacitor
with integrated Distribution Block

Operating voltage 12 - 16 V DC
Operating temperature -20 ~ 60 ° C
Digital voltmeter with 4 digits
Auto turn-on function
Sturdy acrylic holders
Dimensions: Ø 7,4 cm x 24,5 cm

Distribution Block:
1 x Plus 25 mm² IN / 3 x 25 mm² OUT
1 x Minus 25 mm² IN / 1 x 25 mm² OUT

ESX HORIZON 4-CH AMP4 x 60 / 100 W RMS (120 / 200 W max.) into 4 / 2 Ohms2 x 200 W RMS (400 W max.) bridged into 4 Ohms• 2 x Highpass 10-250 Hz • Lowpass 50-250 Hz • Bandpass-Mode• Line-Outputs • Bass-Boost 0-12 dB (CH3/4) • 61% Efficiency

ESX HORIZON 2-CH AMP 2 x 70 / 110 W RMS (140 / 220 W max.) into 4 / 2 Ohms1 x 220 W RMS (440 W max.) bridged into 4 Ohms• HP 10-250 Hz • LP 50-250 Hz • Bass-Boost 0-12 dB• Bandpass-Function • Line-Outputs • 62% Efficiency

ESX HORIZON DIGITAL MONOBLOCK 1 x 400 / 650 / 1000 Watts RMS into 4 / 2 / 1 Ohms• Class D Amp • Lowpass 40-150 Hz • Subsonic 10-35 Hz• Phase-Shift 0-180° • Bass Boost 0-12 dB• incl. Bass-Remote • Line Outputs • 83% Efficiency

The ESX Amplifier Installation Kits provide everything you need to connect an amplifier. Powerful power amplifiers can only provide an optimal output line, if a stable power supply is ensured. Due to that, ESX offers three different cable cross sections for the perfect power supply, suitable for your amplifier. The sets include power cables with CCAW (high-density copper-coated aluminum), which guarantees excellent conductivity.
10 mm2 Amplifier Installation Set

1 x 10 mm2  Power Cable (red), 5 m
1 x 10 mm2  Ground Cable (silvery), 0,8 m
1 x RCA Twisted Stereo Audio Cable (black), double shielded
1 x 0,5 mm2 Remote Cable, 5 m
1 x Mini-ANL/AFS Fuse Holder with 40 A Mini-ANL/AFS Fuse
Installation Accessories

The ESX Amplifier Installation Kits provide everything you need to connect an amplifier. Powerful power amplifiers can only provide an optimal output line, if a stable power supply is ensured. Due to that, ESX offers three different cable cross sections for the perfect power supply, suitable for your amplifier. The sets include power cables with CCAW (high-density copper-coated aluminum), which guarantees excellent conductivity.
20 mm2 Amplifier Installation Set

1 x 20 mm2  Power Cable (red), 5 m
1 x 20 mm2  Ground Cable (silver), 0,8 m
1 x RCA Stereo Audio Cable (black), double shielded
1 x 0,5 mm2 Remote Cable, 5 m
1 x Mini-ANL/AFS Fuse Holder with 60 A Mini-ANL/AFS Fuse
Installation Accessories

The ESX Amplifier Installation Kits provide everything you need to connect an amplifier. Powerful power amplifiers can only provide an optimal output line, if a stable power supply is ensured. Due to that, ESX offers three different cable cross sections for the perfect power supply, suitable for your amplifier. The sets include power cables with CCAW (high-density copper-coated aluminum), which guarantees excellent conductivity.

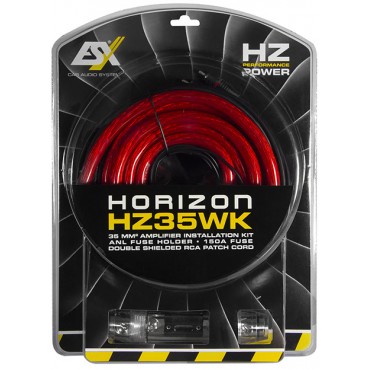

35 mm2 Amplifier Installation Kit

1 x 35 mm2  Power Cable (red), 5 m
1 x 35 mm2  Ground Cable (silver), 0,8 m
1 x RCA Stereo Audio Cable (black), double shielded
1 x 0,5 mm2 Remote Cable, 5 m
1 x ANL Fuse Holder with 150 A ANL Fuse
Installation Accessories

 FOR XE LINE AMPLIFIERS



ESX plug&play Connector Cable




For Audi, Seat, Skoda and VW Models, e.g.:



Audi  • A3 (08-12) • A4 (04-08) • A6 (03-05) • TT (06-14)


Seat   • Leon (05-12) • Alhambra (05-16)



Skoda   • Oktavia (04-13) • Suberb (08-13)



• Volkswagen:





• Golf 5 • Golf 6 • Passat (03-14) • Polo (05-14) • Tiguan (07-14)


• Touran ( 03-14) • Touareg (02-14) • Caddy (03-14) • T5 (03-14)

 FOR ESX XE AMPLIFIERS



ESX plug&play Connector Cable




For Toyoto, Peugeot and Citroen, e.g.:



• Toyota:• Auris (07 and up) • Avensis (98 and up)


• Corolla Verso (04 andup) • RAV4 (94)



• Peugeot:• 107 (05-14) • 108 (14 and up)



• Citroen:• C1 (14 and up)








ESX plug&play Connector Cable
FOR ESX XE AMPLIFIERS





For Nissan, Opel und Renault, e.g.:



• Nissan:• Leaf (10 and up) • Micra (10 and up)


• Qashqai (07 and up) •X-Trail (07-10)



• Opel:• Movano (14 and up) • Vivaro (14 and up)


• Renault:• Master (15 and up) • Traffic III (14 and up)





ESX plug&play Connector Cable FOR ESX XE AMPLIFIERS




For Opel, Renault und Dacia, e.g.:



• Opel:• Movano (10-14) • Vivaro (11 and up)



• Renault:• Kangoo (12 and up) • Master (13-14)


• Megane (12 and up) •Scenic (12 and up)






ESX plug&play Connector Cable




For Opel, e.g.:





• Agila A (05-07) • Astra H (04-10) • Corsa D (06-14)


• Meriva(05-10)





• Signum (05-08) • Vectra (04-08) • Vivaro (06-10)


• Zafira (05-14)









ESX plug&play Connector Cable




For Opel, e.g.:





• Agila A (05-07) • Astra H (04-10) • Corsa D (06-14)


• Meriva(05-10)





• Signum (05-08) • Vectra (04-08) • Vivaro (06-10)


• Zafira (05-14)









ESX plug&play Connector Cable
FOR ESX XE AMPLIFIERS





For Hyundai and Kia, e.g.:




• Hyundai:






   • Santa Fe (05 and up) • Tucson (05 and up)



• Kia:






   • Sportage (04 and up) • Rio (05 and up)
