Combined this with our RA 301D amplifier, this subwoofer creates a powerful, dynamic and enjoyable listening experience.

Composition

25 L 40 Hz No boost

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Installation depth as per Mercedes car

Description

READY TO GO COMPACT REFLEX SUBWOOFER ENCLOSURE

•  210 mm (8 ‘’) subwoofer
• Maximum power: 300 W / Nominal Power 150 W
• Frequency response: 45 Hz – 500 Hz
• Sensitivity (2.83V/1m): 92.5 dB
• Impedance: 2 Ohms

Great bass in a tight space!
To completely enjoy quality music in the automotive environment, a subwoofer becomes a necessary component; enhancing warmth and adding punch to the conventional speaker system. This subwoofer is designed to be fitted into a very compact enclosure, easily integrated into the vehicle. Combined this with our RA 301D amplifier, this subwoofer creates a powerful, dynamic and enjoyable listening experience.
BLAM wishes you long hours of enjoyment!

> TECHNICAL CHARACTERISTICS

Supplied foam stand to use it down firing. Size : H 260mm x D 140mm x W 500 mm.

Description

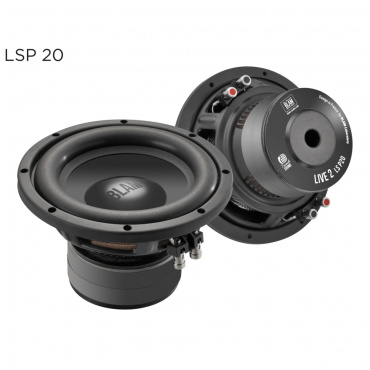

2 OHM 210 MM (8 ‘’) SUBWOOFER POWER MAX. 300 W

•  210 mm (8 ‘’) subwoofer for compact enclosure
• Maximum power: 300 W / RMS 150 W
• Frequency response: 45 Hz – 500 Hz
• Sensitivity (2.83V/1m): 92.5 dB
• Impedance: 2 Ohms

Great bass in a tight space!
To completely enjoy quality music in the automotive environment, a subwoofer becomes a necessary component; enhancing warmth and adding punch to the conventional speaker system. This subwoofer is designed to be fitted into a very compact enclosure, easily integrated into the vehicle. Combined this with our RA 301D amplifier, this subwoofer creates a powerful, dynamic and enjoyable listening experience.
BLAM wishes you long hours of enjoyment!

TECHNICAL CHARACTERISTICS

• Steel basket with machined gasket
• Rigid treated pulp cone
• Butyl rubber surround
• Long life “conex” spider
• 40 mm voice coil, on fiber glass former
• 120 mm x 20 mm motor assembly
• Machined extended T yoke
• Optimized for use in a 10 to 13 liter bass reflex enclosure
• Grille included

Technical specification

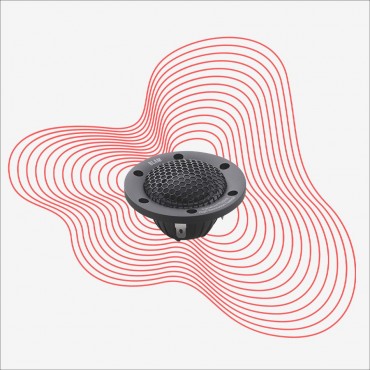

25 mm (1″) soft dome tweeter
Frequency response 1.5 kHz – 40 kHz
Sensitivity 90.1 dB – Impedance 4 Ω

Composition

High efficiency magnet (Neodymium N38H) – Precision machined aluminum faceplate – Low resonance rear chamber – Large surround for wide dispersion

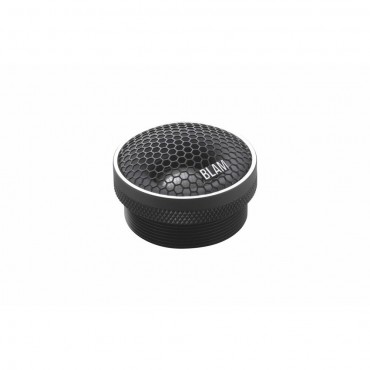

High efficiency magnet (N38H neodymium) – Precision machined 57 mm aluminum horn-loading front plate.

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Double push-pull high efficiency magnet (N38H neodymium) – Precision machined 66 mm aluminum horn-loading front plate.

Technical specification

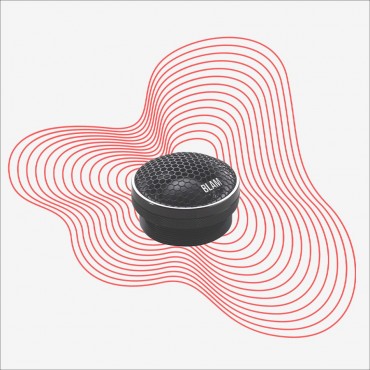

28 mm (1.1″) soft dome tweeter
Frequency response 2.5 kHz – 25 kHz
Sensitivity 93 dB – Impedance 3 Ω

Composition

High efficiency neodymium magnet (N38) -Ferrofluid for high power handling – Precision machined aluminum faceplate – Transparent protection grill

 – Sound transparent protection grill

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Max power: 120w. Nominal power: 60w. Impedance: 3Ω. Freq. responce: 70hz-20khz. Sensitivity(2,83v/1m): 90,5 db. Magnet: ferite. Magnet size: 80x15mm. Total driver displacement 0,111. Weight of one component 1kg. Voice coil 26mm. Voice coil height 8,8mm. Cone polypropylene.

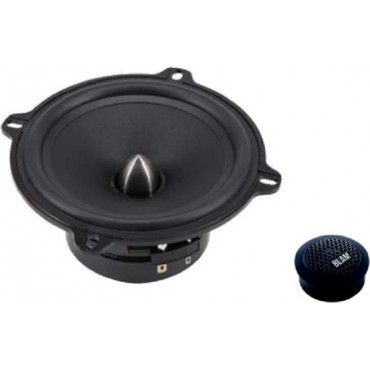

Technical details This kit consists of 2 x 130 mm (5.25") woofer, 2 x 20 mm soft dome tweeters and 2 x 6dB/octave high-pass filters Maximum power 120 W / Nominal power 60 W Frequency response 80 Hz – 28 kHz Sensitivity 91 dB – Impedance 2 Ω Composition Woofer: Original BLAM bowl made of fiberglass reinforced composite High quality treated cellulose pulp diaphragm Long life Spider "Conex" butyl peripheral suspension 25 mm coil on Kapton stand 80 mm x 15 mm ferrite motor Thick magnetic circuit (4 mm ) High-quality 20 mm soft dome tweeter 6dB/octave high-pass filter Tweeter level adjustable to 0 dB or attenuated to -3 dB Supplied Accessories Mounting screws Mounting accessories for tweeters Instructions for use
