EXTRA SLIM SUBWOOFER BLAM RS10.4 10''
150,00€
Description
250 mm (10’’) extra-slim subwoofer
Mounting depth 66 mm (2.6’’)
Maximum power 300 W / Nominal power 150 W
Frequency response: 35 Hz à 500 Hz
Sensitivity: 86.2 dB
Impedance 4 Ω
Composition
Steel basket
Injected polypropylene cone
Butyl rubber surround
Long life “conex” damper
50 mm (2’’) voice coil on aluminium former
126 mm x 15 mm (5’’ x 0.6’’) motor assembly
Extended T yoke
Optimized for use in a 10L to 40L closed enclosure
Supplied Accessories:
Mounting screw
User manual
Recommended sealed enclosure:
Internal Volume Vb F -3dB Boost
10L 49 Hz 5,0 dB at 75 Hz
20L 41 Hz 3,4 dB at 65 Hz
30L 38 Hz 2,7 dB at 61 Hz

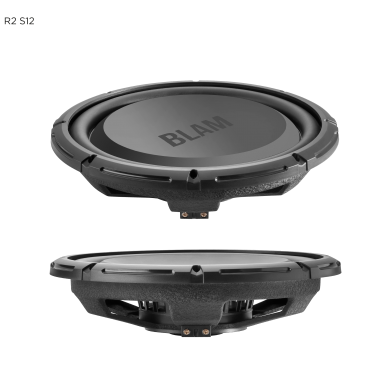

EXTRA SLIM SUBWOOFER BLAM RS12.4 12''
170,00€
RS12.4
Description
300 mm (12’’) extra-slim subwoofer
300 mm (12”) extra-slim subwoofer
Mounting depth 67 mm (2.6’’)
Maximum power 400 W / Nominal power 200 W
Frequency response: 30 Hz à 500 Hz
Sensitivity 87.5 dB
Impedance 4 Ohms
Composition
Steel basket
Injected polypropylene cone
Butyl rubber surround
Long life “conex” damper
50 mm (2’’) voice coil on aluminium former
126 mm x 15 mm (5’’ x 0.6’’) motor assembly
Extended T yoke
Optimized for use in a 15L to 45L closed enclosure
Supplied Accessories:
Mounting screw
User manual
Recommended sealed enclosure :
Internal Volume Vb F -3dB Boost
15 L 50 Hz 8.1 dB at 77 Hz
25 L 42 Hz 6.5 dB at 65 Hz
40 L 37 Hz 5.4 dB at 57 Hz

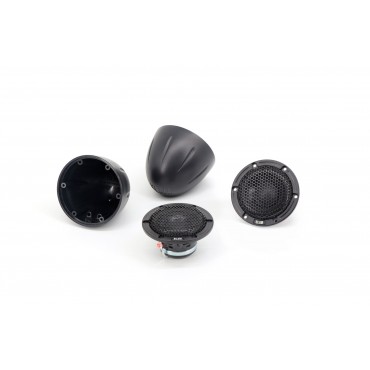

LFR52
180,00€
Description
Thanks to its linear frequency response that extends into the extreme high frequencies, the LFR50 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.
This system includes two high resolution full range 50 mm (2″) driver
high resolution full range 50 mm (2″) driver
Max power 50 W – Nominal power 25 W*
Frequency response 200 Hz – 45 kHΖ
Sensibility 85 dB – Impedance 4 Ω
LFR80
250,00€
Description
Thanks to its very linear frequency response that extends into the extreme high frequencies, the LFR80 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.
This system includes two 80 mm (3″) full range driver
80 mm (3″) full range driver
Max power 100 W – Nominal power 25 W
Frequency response 150 Hz – 37 kHz
Sensibility 91 dB – Impedance 3 Ω
Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
LFR80 80 MM (3”) FULL RANGE DRIVER
Max power 100 W – Nominal power 25 W
Frequency response 150 Hz – 37 kHz
Sensibility 91 dB – Impedance 3 Ω
Mounting depth 45 mm (1.8’’)
Die cast aluminium basket – Epoxy resin and glass fiber cone – Butyl surround – Long-life “Conex” damper – 20 mm (0.8”) voice coil with TIL former – 50 mm x 10 mm (1.9” x 0.4”) neodymium magnet
Optimized for sealed enclosure volume from 0.3 L to 0.5 L
Minimal required cut off frequency: 300 Hz 12 dB/octave
Supplied accessories :
Mounting screws
Protective grill
User manual
OS80 compatible with LFR80
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
LM80
160,00€
Description
Thanks to its very linear frequency response that extends into the extreme high frequencies, the LM80 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.
This system includes two 80 mm (3″) midrange driver
80 mm (3″) midrange driver
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω
Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
LM80 80 MM (3”) MIDRANGE DRIVER
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω
Mounting depth 45.5 mm (1.8’’)
Die cast aluminium basket – Epoxy resin and glass fiber cone – Butyl surround – Long-life “Conex” damper – 20 mm (0.8”) voice coil with TIL former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Optimized for sealed enclosure volume from 2 L to 30 L
Minimal required cut off frequency: 300 Hz 12 dB/octave

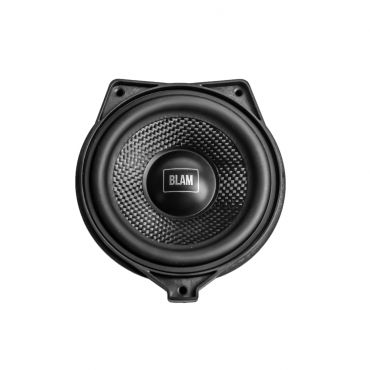

MB 100 CENTER
130,00€
MB 100 CENTER
Description
Plug & Play Special Mercedes Benz center system
System includes one 100 mm (4”) dual voice coil woofer
Max power 2 x 60 W / Nominal power 2 x 30 W
Frequency response 100 Hz – 10 kHz
Sensitivity 85 dB – Impedance 2 x 4 Ω
Composition
100 mm ABS + fiber basket woofer
Plug & Play solid terminal
Fiberglass cone with rubber surround
Super powerful neodymium magnet
25 mm dual voice coil (announcement & music)

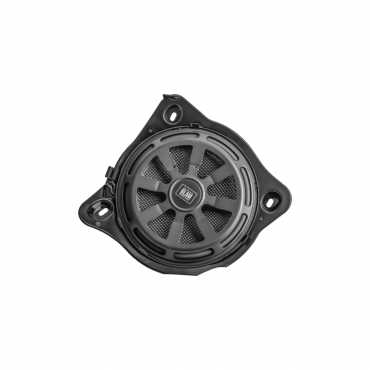

MB 200 W/WR
580,00€
Description
BLAM-AUDIO
Plug & Play Special Mercedes Benz 8″ Subwoofer for Left-hand drive vehicule
System includes two 200 mm (8”) subwoofers
Max power 300 W / Nominal power 150 W
Frequency response 55 Hz – 2 kHz
Sensitivity 87 dB – Impedance 2 Ω
Composition
200 mm stamped steel basket with mounting ABS adaptor
Mercedes terminal connection
Fiberglass cone with rubber surround
Neodymium magnet
Enormous power handling with 35 mm voice coil
Installation depth as per Mercedes car

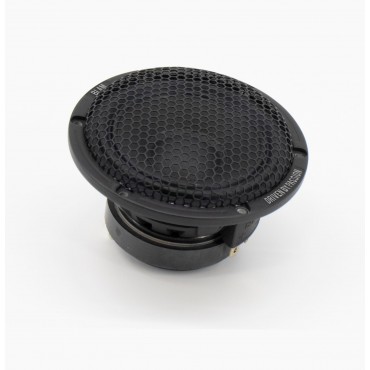

R80
100,00€
Composition
R80 MEDIUM SPEAKER 80 MM (3”)
Max power 100 W – Nominal power 25 W*
Frequency response 150 Hz – 23 kHz
Sensitivity 86 dB – Impedance 3 Ω
Mounting depth 45.5 mm (1.8″)
Composite basket reinforced in glassfiber – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life « Conex » damper – 20 mm (0.8”) voice coil with fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Minimum cut-off frequency recommended is 25 W RMS if filtered above 300 Hz 12 dB/octave
R80 dB
50,00€
Composition
R80 dB 80 MM (3”) DUAL VOICE COIL DRIVER
Max power 100 W – Nominal power 25 W*
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Mounting depth 45.5 mm (1.8″)
Composite basket reinforced in glassfiber – High quality treated cellulose pulp membrane – Butyl rubber surround – Long-life « Conex » damper – 20 mm (0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Recommended cut-off frequency 250 Hz 12 dB/octave
RS10.2
150,00€
SUBWOOFER RS10.2 250MM RS10.2 EXTRA SLIM SUBWOOFER Technical details Installation depth 66 mm Power 300 W max / 150 W nominal Frequency response 35 Hz to 500 Hz Sensitivity: 87.7 dB Impedance 2 Ω Composition Steel bowl Injected polypropylene diaphragm Large "Conex" long life butyl Spider peripheral pendant lamp 50 mm coil on aluminium stand 126 mm x 15 mm magnetic motor Flared pole piece Subwoofer optimized for closed speakers from 10L to 40L Included accessories: Fixing screws Instructions for use Closed chamber recommended: Internal Volume Vb F -3dB Boost 10L 46 Hz 5.7 dB at 71 Hz 20L 38 Hz 4.1 dB at 60 Hz 30L 36 Hz 3.4 dB at 56 Hz
SR200
300,00€
SR200
HIGH PERFORMANCE SYSTEM – 2 SEPARATE WAYS
Technical details
200 mm woofer with shallow mounting depth
25mm voice coil soft dome tweeter
6dB/octave high pass filter with tweeter level adjustable to 0dB or attenuated to –3dB
power max. 200W / 100W nominal
Sensitivity (2.83V/1m) 94dB
Impedance 3 Ohms
