LCD display

Remote control for GZDSP 4-8XII

• Wired remote control with LCD display


• Compatible with GZDSP 4-8X / XII


• incl. subwoofer level control


• Including connection wire 500 cm


• Main level


• Subwoofer level


• Preset selection


• Mute function


• Model Wired remote Control with Display Chassis Aluminum, silver Front Oberfläche Acrylic glass, black LCD Display white

LCD display

Remote control for GZDSP products (according compatibility list)

• Remote control for GZDSP 6-8X PRO


• Compatible with GZDSP 6-8X PRO


• Including connection wire


• Source selection


• Main level


• Subwoofer level


• Preset selection


• Mute function

• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

20 mm² / 4 AWG input / output

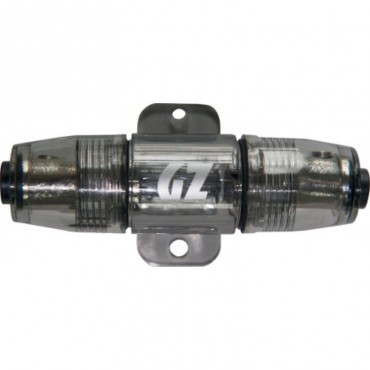

Waterproof inline Mini-ANL fuseholder with scre terminals
Inline MINI-ANL fuseholder
20 mm² / 4 AWG input / output
Anodyzed solid copper
Waterproof version
Screw terminals

 20 mm² / 4 AWG input / output

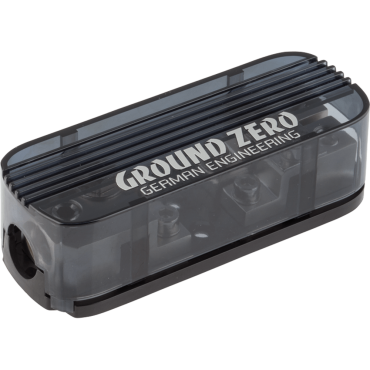

Solid ANL / Mini-ANL fuseholder with screw terminals
ANL or Mini-ANL fuseholder
20 mm² / 4 AWG input / output
Anodyzed solid copper
Including protection cover
Screw terminals

50 mm² / 0 AWG input / output

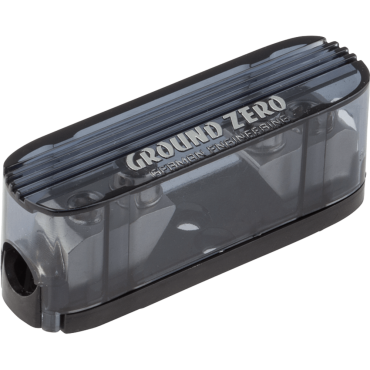

Solid ANL / Mini-ANL fuseholder with screw terminals
ANL or Mini-ANL fuseholder
50 mm² / 0 AWG input / output
Anodyzed solid copper
Including protection cover
Screw terminals

50 mm² / 0 AWG input / 2x 20 mm² / 4 AWG output
Solid ANL / Mini-ANL fuseholder and distribution with screw terminals
ANL or Mini-ANL fuseholder
50 mm² / 0 AWG input / 2x 20 mm² / 4 AWG output
Anodyzed solid copper
Including protection cover
Screw terminals

3x 50 mm² / 0 AWG input / 4x 20 mm² / 4 AWG output

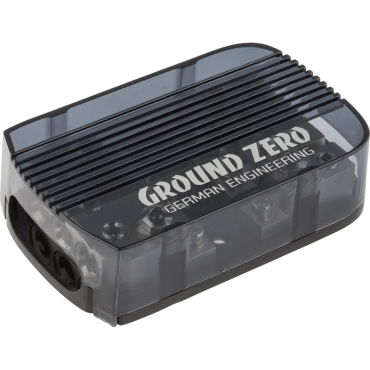

Solid ANL / Mini-ANL fuseholder and distribution with screw terminals
ANL or Mini-ANL fuseholder
3x 50 mm² / 0 AWG input / 4x 20 mm² / 4 AWG output
Anodyzed solid copper
Including protection cover
Screw terminals

100-400A

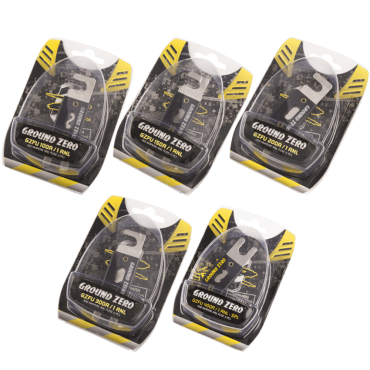

High quality ANL fuse according to DIN-norm
ANL fuse
100-400A
Melting according to DIN 72581
Availability 1 pc blister or 10 pcs bulk pack

40-200A

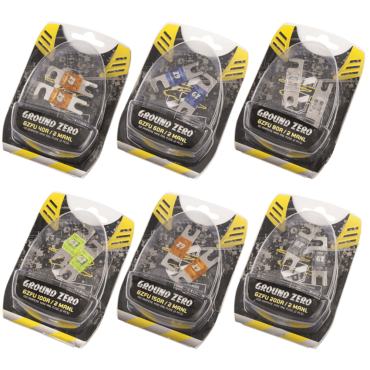

High quality Mini-ANL fuse according to DIN-norm
Mini-ANL fuse
40-200A
Melting according to DIN 72581
Availability 2 pcs blister or 10 pcs bulk pack

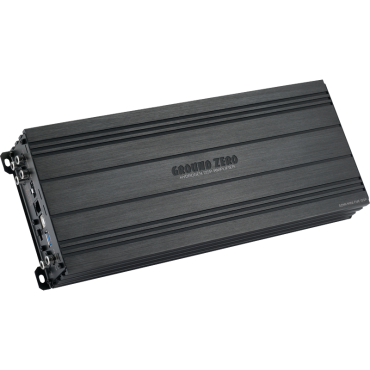

5-channel class D compact amplifier with DSP

High efficient 5-channel class D amplifier with built-in 7-channel DSP

5-channel amplifier with high efficient class D circuit, integrated DSP and compact dimensions

• Compact sized 5-channel amplifier with DSP


• 7-channel DSP


• Class D technology


• 1 ohm stable (subwoofer channel)


• Parametric equalizer for each channel (10 bands/channel)


• Time alignment (0-8 ms / 0-272 cm / 0-107”) for each channel


• Adjustable crossover (HPF / LPF / BPF from 20 Hz to 20 kHz)


• Solid heatsink with engraved Ground Zero lettering


• High-level input with auto-on function


• Model Compact class D amplifier with DSP Channels 5+7 DSP Output Power (@ 4Ω) 4x 75 + 190 Watts RMS Output Power (@ 2Ω) 4x 125 + 320 Watts RMS Output Power (@ 1Ω) (subwoofer channel) 500 Watts RMS max. Output Power (CEA-2006A / 10%THD+N) 1200 Watts Frequency Response 20 Hz – 20 kHz HPF / LPF / BPF DSP Bass Boost / Phase switch DSP High level input / Auto-on ● / ● Remote ● BIAS Setting ○ Linkmode ○ Dimensions (W x L x H) 135 x 322 x 52 mm / 5.31″ x 12.68″ x 2.05″


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Equiv. air volume (Vas) 19.7 L / 0.70 cu.ft.

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

1200 Watts SPL 12″ high quality flat SPL subwoofer with alumiunum cast basket 12″ high quality flat SPL subwoofer Klippel® optimized Sandwich paper cone Durable U-shape rubber surround Solid aluminum cast basket 63 mm / 2.5″ copper voice coil 4-layer copper voice coil Push terminal Model High-Quality Flat SPL Subwoofer Diameter 30 cm / 12″ Power handling (RMS/SPL) 700 / 1200 Watts Impedance 2x 2 Ohms Efficiency 88 dB Power recommendation 500 – 1200 Watts Voice coil 63 mm / 2.5″ Copper Cone Sandwich paper Max. Excursion (Xmax) 32 mm / 1.26″ Mounting Ø 284 mm / 11.18″ Mounting depth 118 mm / 4.65″ Resonance frequency (Fs) 21 Hz Overall quality (Qts) 0.30 Equiv. air volume (Vas) 19.7 L / 4.15 ft³

2500 Watts SPL

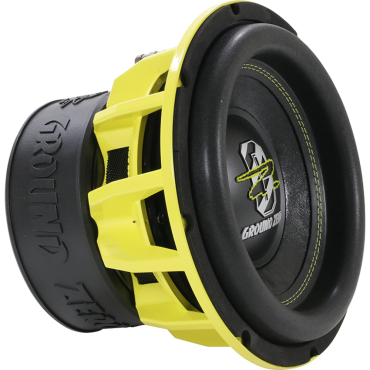

10″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone
10″ high quality SPL subwoofer
Klippel® optimized
Reinforced paper cone
Long stroke compound surround
Solid aluminum cast basket
63 mm / 2.5″ copper voice coil
2-layer Polycot spider
IMPP dust cap with 3D structure logo
Model
High-Quality SPL subwoofer
Diameter
25 cm / 10"
Power Handling (RMS/SPL.)
1200 / 2500 Watts
Impedance
2x 2 Ohms
Efficiency
83 dB
Power Recommendation
800 – 2500 Watts
Voice Coil
63 mm / 2.5" Copper
Membran Layout
Reinforced paper
Max. Excursion (Xmax)
45 mm / 1.77"
Mounting Ø
238 mm / 9.37"
Resonance Frequency (Fs)
41.8 Hz
Overall Qaulity (Qts)
0.487
Equiv. Air Volume (Vas)
8.53 L / 0.30 cu.ft.

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

840 x 400 x 430/310 mm / 33.07" x 15.75" x 16.93"/12.20"
