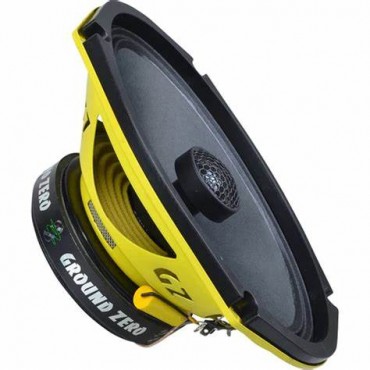

400 + 100 Watts max

200 mm / 8″ 2-way coaxial speaker system with coated paper cone and 25 mm / 1″ compression tweeter

• 2-way high-power coaxial loudspeaker system
• Coated paper cone
• Wave shaped textile surround
• High-efficient neodymium motor
• Aluminum cast basket
• High efficiency (SPL)
• 25 mm / 1″ compression tweeter
• High-efficient neodymium motor
• For active use
• Incl. Hexagon style protection grill

• Model	2-way coaxial speakers for active use
  Diameter	200 mm / 8″
  Power handling (RMS/max.)	250+50 / 400+100 Watts
  Impedance	4 + 4 ohms
  Efficiency	99 dB
  Frequency Response	120 Hz – 20 kHz
  Tweeter	25 mm / 1″ PEI
  Mounting Ø	181 mm / 7.13″
  Mounting depth	104 mm / 4.09″
  Xmax (p2p)	12 mm / 0.47″

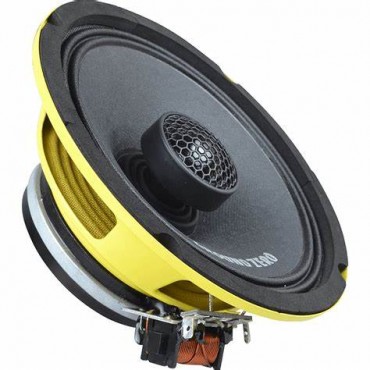

250 Watts max

165 mm / 6.5″ 2-way coaxial speaker system with paper cone and 28 mm / 1.1″ Mylar tweeter

• 2-way coaxial speaker system


• Pressed paper cone


• High-excursion foamed W-surround


• Neodymium motor


• Resonance free steel basket


• compact motor construction


• 28 mm / 1.1″ Mylar tweeter


• 6 dB/oct high pass filter


• Incl. Hexagon style protection grill


• Type 2-way coaxial speakers Diameter 165 mm / 6.5″ Power handling (RMS/max.) 100 / 250 Watts Impedance 4 ohms Efficiency 93 dB Frequency response 70 Hz – 20 kHz Mounting Ø 145 mm / 5.71″ Mounting depth 68 mm / 2.68″


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

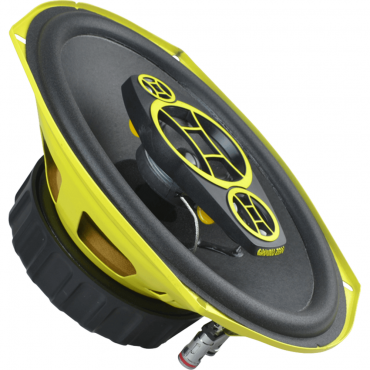

300 Watts max

6×9″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter

• 2-way coaxial speaker system


• Pressed paper cone


• High-excursion textile surround


• Resonance free steel basket


• 25 mm / 1″ Mylar tweeter


• Ferrite motor


• 6 dB/oct high pass filter


• Incl. Hexagon style protection grill


• Model 2-way coaxial speakers Power handling (RMS/max.) 150 / 300 Watts Impedance 4 Ohms Efficiency 94 dB Frequency Response 50 Hz – 20 kHz Mounting Ø 152 x 214 mm / 5.98 x 8.43″ Mounting depth 84 mm / 3.31″

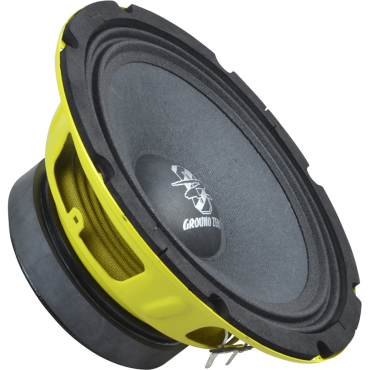

300 Watts max
200 mm / 8″ high efficient SPL midwoofer with stiff reinforced paper cone and long stroke CCAW voice coil, incl. grill
8″ SPL midwoofer
38 mm / 1.5″ voice coil
Fiber reinforced paper cone
Long stroke foam surround
Resonance free steel basket
Paper dust cap
Incl. protection grill
Soldering terminal
1 piece / package
Model
SPL midwoofer
Diameter
200 mm / 7.87"
Power Handling (RMS/max.)
150 / 300 Watts
Impedance
4 Ohms
Efficiency
93 dB
Frequency Response
50 Hz – 6 kHz
Voice Coil
38 mm / 1.5" CCA
Mounting Ø
183 mm / 7.20"
Mounting Depth
71.5 mm / 2.81", 86 mm / 3.39"
Resonance Frequency (Fs)
54.3 Hz

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

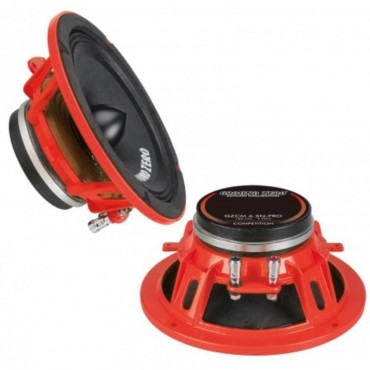

400 Watts max
165 mm / 6.5″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
5″ high power midrange speaker with neodymium motor
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast housing
Aluminum phase plug
Incl. protection grill
1 piece / package
Model
High end midrange speaker with neodymium magnet
Diameter
165 mm / 6.5"
Belastbarkeit (RMS/max.)
200 / 400 Watts
Impedanz
4 Ohms
Effizienz
96 dB
Frequency Response
150 Hz – 12 kHz
Voice coil
38 mm / 1.5" CCA
Einbautiefe
68 mm

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

420 Watts max
200 mm / 8″ high efficient midrange speaker with neodymium motor and aluminum phase plug, incl. Grill
8″ high power midrange speaker
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Resonance free steel basket
Aluminum phase plug
Incl. protection grill
1 piece / package
Model
High power midrange speaker
Diameter
200 mm / 7.87"
Power Handling (RMS/max.)
180 / 420 Watt
Impedance
3 ohms
Efficiency
100 dB
Frequency Response
170 Hz – 6 kHz
Voice Coil
38 mm / 1.5" CCA
Mounting Ø
182 mm / 7.17"
Mounting Depth
76 mm / 2.99"
Resonance Frequency (Fs)
131 Hz

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

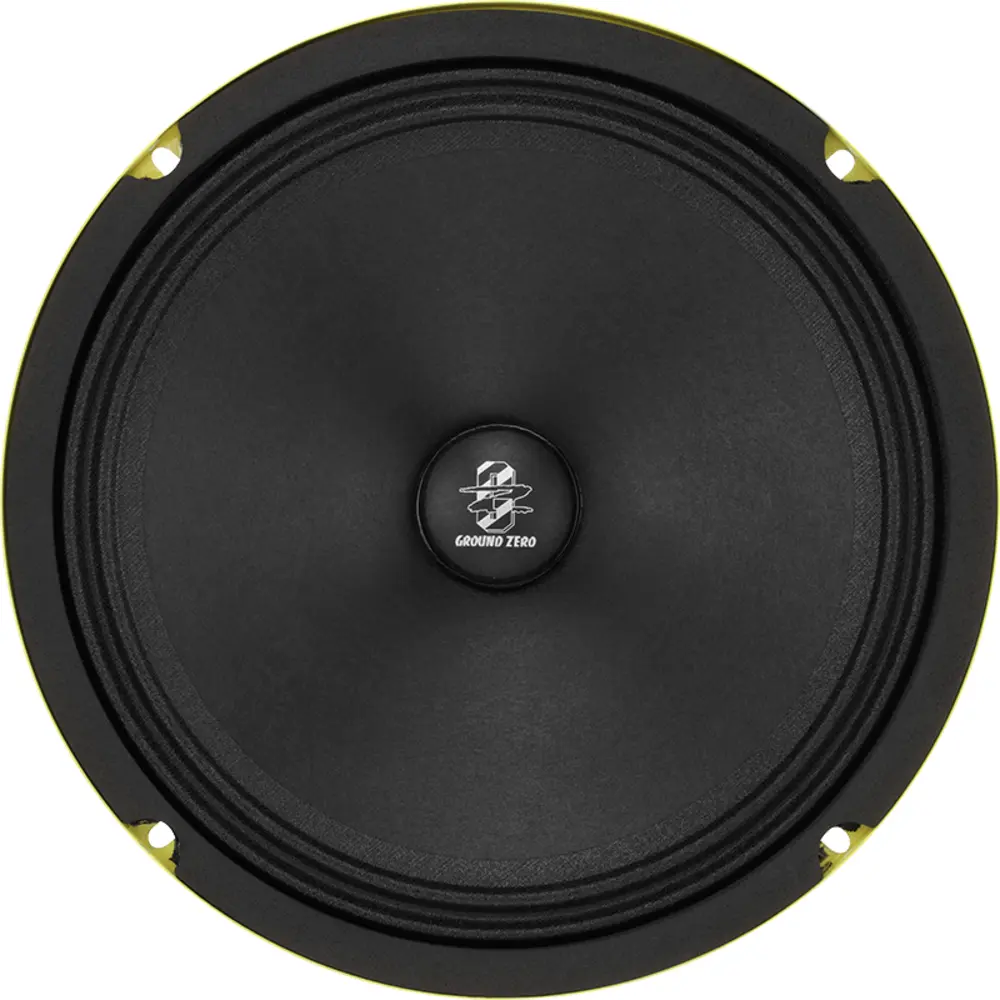

400 Watts max
200 mm / 8″ flat high efficient midrange speaker with reinforced paper cone and short CCAW voice coil, incl. grill
8″ high power midrange speaker
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Ferrite motor
Resonance free steel basket
Paper dust cap
Incl. protection grill
1 piece / package
Model
High power midrange speaker
Diameter
200 mm / 7.87"
Power Handling (RMS/max.)
150 / 400 Watts
Impedance
4 Ohms
Efficiency
95 dB
Frequency Response
140 Hz – 10 kHz
Voice Coil
38 mm / 1.5" CCA
Mounting Ø
182 mm / 7.17"
Mounting Depth
87 mm / 3.43"
Resonance Frequency (Fs)
91 Hz

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

 ΖΕΥΓΟΣ

420 Watts max

200 mm / 8″ flat high efficient midrange speaker with reinforced, water repellant paper cone

• 8″ high power midrange speaker
• 30 mm / 1.2″ CCA voice coil
• Fiber reinforced paper cone
• Ferrite motor
• Resonance free steel basket
• Paper dust cap
• UV resistant and water repellant
• 1 pair / package

• Model	High power midrange speaker
  Diameter	200 mm / 8″
  Power handling (RMS/max.)	170 / 420 Watts
  Impedance	4 Ohms
  Efficiency	95 dB
  Frequency Response	120 Hz – 11 kHz
  Voice coil	30 mm / 1.2″ CCA
  Mounting Ø	182 mm / 7.17″
  Mounting depth	84 mm / 3.31″
  Resonance frequency (Fs)	81 Hz

Mounting depth 82 mm / 2.48''

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Midwoofer Glass fiber cone

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Plug´n´play installation

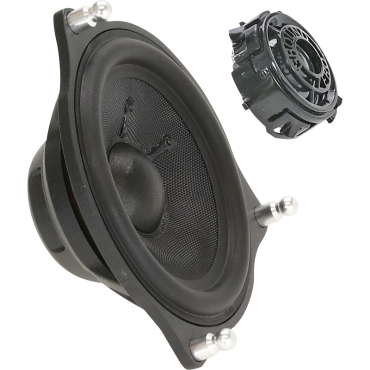

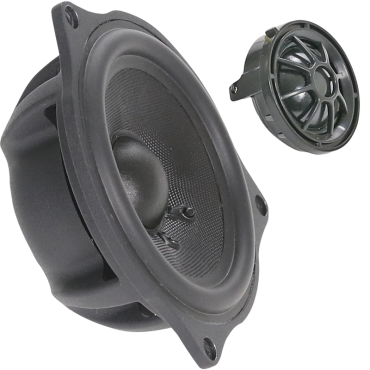

Car specific 100 mm / 4″ 2-way speaker system for Mercedes

• 2-way speaker for Mercedes
• Suitable for various vehicles
• Glas fiber cone
• neodymium motor
• GZ design aluminum cast basket
• 25 mm / 1″ silk dome tweeter
• Car specific connection
• 1 pair / package

• Model	Car specific 2-way speakers
  Diameter	100 mm / 4″
  Power handling (RMS/max.)	70 / 110 Watts
  Impedance	4 Ohms
  Efficiency	87 dB
  Frequency Response	70 Hz – 24 kHz
  Voice coil	25 mm / 1″ copper
  Midwoofer	Glass fiber cone

• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Frequency Response 100 Hz – 17 kHz

Frequency Response 100 Hz – 17 kHz

140 Watts max

Car specific 200 mm / 8″ 2-way speaker system for VW T5/T6

• 2-way speaker system for VW T5/T6


• Suitable for VW T5 and T6


• Carbon fiber cone


• Rubber surround


• VW-specific loudspeaker basket


• Incl. tweeter mounting frame for VW T5


• 28 mm / 1.1″ silk dome tweeter


• Incl. fastening rivets


• Car specific connection


• 1 pair / package


• Model Car specific 2-way speakers Diameter 200 mm / 7.87″ Power handling (RMS/max.) 80 / 140 Watts Impedance 4 Ohms Efficiency 89 dB Frequency Response 40 Hz – 20 kHz Tweeter 28 mm / 1.1″ silk dome High performance midwoofer Carbon fiber cone Crossover 18 dB/oct high pass filter (Tweeter) / 6 dB/oct low pass filter (Woofer)


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ
