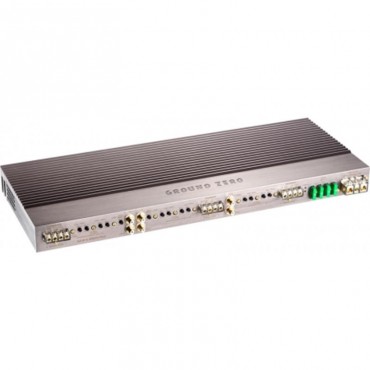

1400 Watts
6-channel sound quality amplifier with class A/B circuit, integrated active crossover and BIAS adjustment
6-channel SQ amplifier
Variable BIAS setting
Class AB technology
Variable active crossover with bypass function
Stable power supply
Gold-plated connectors
Flat heatsink with engraved Ground Zero lettering
Suitable for high quality SQ setups
Model
Sound quality amplifier
Channels
6
Output Power (@ 4Ω)
4x 110 + 2x 160 Watts RMS
Output Power (@ 2Ω)
4x 160 + 2x 280 Watts RMS
max. Output Power (CEA-2006A / 10%THD+N)
2x 320 + 560 Watts
Frequency Response
10 Hz – 30 kHz
HPF / LPF / BPF
● / ● / ●
Bass Boost / Phasenregelung
○ / ○
Remote Control
○
BIAS Setting
●
Linkmode
○
Dimensions (b x l x h)
209 x 550 x 46 mm

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

160 watts max

165 mm / 6.5″ ultra-high-end midwoofer with airflow-optimized spokes and lightweight carbon-fleece cone

• Ultra-high-end 165 mm / 6.5” midwoofer
• Tightly-tolerated technical parameters
• Lightweight carbon-fleece sandwich cone
• High-excursion linear moving rubber surround
• Vented voice coil former reducing distortion
• Round CCA wire voice coil increasing power handling
• Airflow-optimized aluminum cast spokes
• Documented final technical inspection
• Wooden box packaging / in matching pairs
• GZ ULTRA 165-GRILL protection grills available separately

• Model	Ultra-high-end midwoofer
  Diameter	165 mm / 6.50″
  Power Handling (RMS/max.)	100 / 160 Watts
  Impedance	4 Ohms
  Efficiency	87 dB
  Frequency Response	45 Hz – 5000 Hz
  Voice Coil	32,5 mm / 1.28″
  Membran Layout	Carbon-fleece sandwich
  Mounting Ø	147 mm / 5.79″
  Mounting Depth	67 mm / 2.64″
  Resonance Frequency (Fs)	43 Hz

• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

150 watts max

30 mm / 1.18″ ultra-high-end soft dome tweeter with precision-coated textile diaphragm and CNC manchined aluminum chamber

• 30 mm / 1.18″ ultra-high-end tweeter
• Tightly-tolerated technical parameters
• Vented voice coil former reducing distortion
• Lightweight CCA voice coil improving efficiency
• Particular dome for pressure balancing
• Machined aluminum chamber with wave diffuser
• GZ-design wave-guide face plate
• High-efficient neodymium motor
• Documented final technical inspection
• Wooden box packaging / in matching pairs

• Model	Ultra-high-end tweeter
  Diameter	30 mm / 1.18″
  Power Handling (RMS/max.)	100 / 150 Watts
  Impedance	4 Ohms
  Efficiency	82 dB
  Frequency Response	1000 Hz – 26 kHz
  Voice Coil	CCA
  Membran Layout	coated textile
  Mounting Ø	60 mm / 2.36″
  Mounting Depth	41 mm / 1.61″
  Resonance Frequency (Fs)	500 Hz

• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

2x 50 mm² / 0 AWG output
Solid battery pole terminal with screw terminals / positive
Battery pole terminal with fuseholder
2x 50 mm² / 0 AWG output
Anodyzed solid copper
Including protection cover
Screw terminals

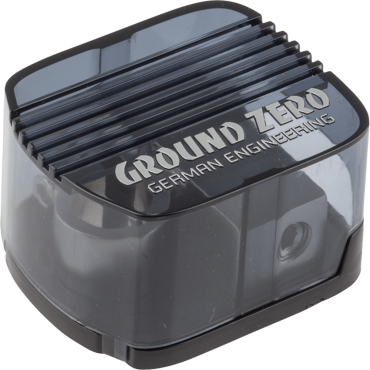

2x 50 mm² / 0 AWG output
Solid battery pole terminal with screw terminals / negative
Battery pole terminal
2x 50 mm² / 0 AWG output
Anodyzed solid copper
Including protection cover
Screw terminals

1.64 ft length

0.5 m high quailty RCA cable with gold plated metal connectors, triple shielded and twisted wires, snake skin protection

• High quailty RCA cable


• Triple shielded


• Gold plated slotted metal connectors


• Snakeskin jacket


• 0.5 m / 1.64 ft length

3.28 ft length

1.0 m high quailty RCA cable with gold plated metal connectors, triple shielded and twisted wires, snake skin protection

• High quailty RCA cable


• Triple shielded


• Gold plated slotted metal connectors


• Snakeskin jacket


• 1.0 m / 3.28 ft length

3.28 ft length
1.0 m triple shielded RCA cable with remote wire
Triple shielded RCA cable
Triple shielded
One-side angled connector
Remote wire
1 m / 3.28 ft length

300 Watts max

165 mm / 6.5″ 2-way component speaker system with SQL tweeter

• 2-way SPL component speaker system


• Fiber reinforced paper cone


• High excursion foamed W-surround


• CCA voice coil


• Resonance free steel basket


• High power capable 4 ohm version


• GZCT 25SQL


• SPL crossover with double woofer option


• Incl. protection grill


• Model 2-way component speakers Diameter 165 mm / 6.50″ Power handling (RMS/max.) 160 / 300 Watts Impedance 4 Ohms Efficiency 96 dB Frequency Response 50 Hz – 22 kHz Tweeter GZCT 25SQL High performance midwoofer GZCK 165XSPL Mounting Ø 145 mm / 5.71″ Mounting depth 71.5 mm / 2.81″ Crossover 2-way with double woofer option Crossover frequency 4500 Hz


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

3.0 m / 9.84 ft length

16.4 ft length
5.0 m triple shielded RCA cable with remote wire
Triple shielded RCA cable
Triple shielded
One-side angled connector
Remote wire
5 m / 16.4 ft length

5.5 m / 18.04 ft length18.04 ft length
