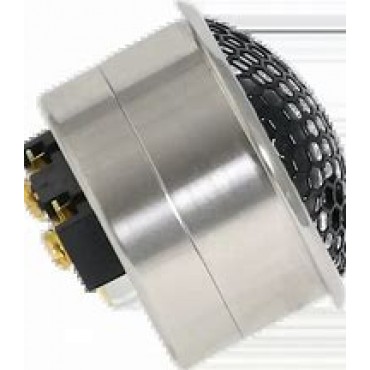

150 Watts max

1.1″ high end silk dome tweeter with polished stainless steel housing

• 28 mm / 1.1″ silk dome tweeter


• Made in Germany


• Double coated silk dome


• High power capable copper voice coil


• Polished stainless steel housing


• Damped coupled chamber


• Neodymium motor


• Gold plated screw terminal


• 1 pair / package


• Model High-End Tweeter Diameter 28 mm / 1.10″ Power handling (RMS/max.) 100 / 150 Watts Impedance 4 Ohms Efficiency 90 dB Frequency Response 2000 Hz – 30 kHz Cone 2 layer coated silk Mounting Ø 48 mm / 1.89″ Mounting depth 35 mm / 1.38″ Resonance frequency (Fs) 770 Hz


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Dimensions (W x L x H) 440 x 240 x 280 mm / 17.32″ x 9.45″ x 11.02″

ΠΕΡΙΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

13 mm / 0.51″ PEI tweeter

142.5 mm / 5.61"

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

700 Watts SPL

6.5″ high quality SPL subwoofer with reinforced paper cone

• 6.5″ high quality SPL subwoofer


• Klippel® optimized


• Reinforced paper cone


• Long stroke compound surround


• Resonance free steel basket


• 50 mm / 2″ copper voice coil


• Polycot spider


• IMPP dust cap with 3D structure logo


• Model High-Quality SPL subwoofer Diameter 16.5 cm / 6.50″ Power handling (RMS/SPL) 350 / 700 Watts Impedance 2x 2 Ohms Efficiency 79 dB Power recommendation 250 – 700 Watts Voice coil 50 mm / 2″ copper Cone Reinforced paper Max. Excursion (Xmax) 22 mm / 0.866″ Mounting Ø 147 mm / 5.79″ Mounting depth 99 mm / 3.90″ Resonance frequency (Fs) 49.5 Hz Overall quality (Qts) 0.621 Equiv. air volume (Vas) 2.2 L / 0.078 cu.ft.


• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Speaker wire
2x 1.5 mm² OFC black and yellow isolated speaker wire / roll
High quality OFC speaker cable
2-color OFC copper cable
Wooden spool
100 m / 328 ft spool

Speaker wire

2x 10 mm² OFC black and yellow isolated speaker wire / roll

• High quality OFC speaker cable


• 2-color OFC copper cable


• Wooden spool


• 50 m / 164 ft spool

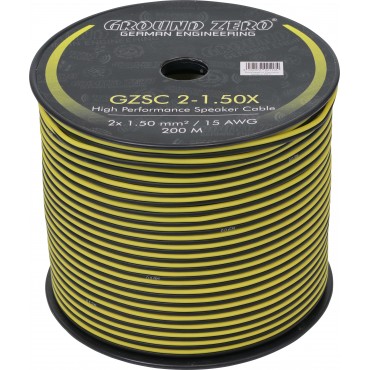

Speaker wire
2x 1.5 mm² speaker wire / roll
High quality speaker cable
CCA multi braid wire
Plastic spool
200 m / 656 ft spool

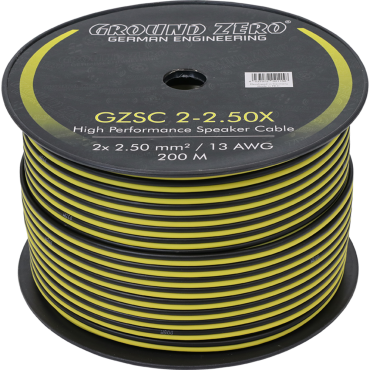

Speaker wire
2x 2.5 mm² speaker wire / roll
High quality speaker cable
CCA multi braid wire
Plastic spool
200 m / 656 ft spool

Speaker wire
2x 2.5 mm² OFC black and yellow isolated speaker wire / roll
High quality OFC speaker cable
2-color OFC copper cable
Wooden spool
100 m / 328 ft spool

Speaker wire

2x 4 mm² speaker wire / roll

• High quality OFC speaker cable


• 2-color OFC copper cable


• Wooden spool


• 75 m / 246 ft spool

Remote control

Optional bass remote control or compatible GZIA / GZTA / GZRA / GZHA / GZNA amplifiers

• Wired remote control


• Subwoofer level control


• Rotating knob


• Incl. connection cable

150 Watts max

2.17″ midrange speaker with silk dome

• 55 mm / 2.17″ SQ dome midrange speaker
• 55 mm / 2.17″ copper voice coil
• Coated silk dome
• Neodymium motor
• GZ design housing
• Incl. hexagion protection grill
• Connection wires
• 1 pair / package

• Model	Sound quality midrange speaker
  Diameter	55 mm / 2.17″
  Power handling (RMS/max.)	90 / 150 Watt
  Impedance	4 Ohms
  Efficiency	88 dB
  Frequency Response	500 Hz – 11 kHz
  Voice coil	55 mm / 2.17″
  Cone	Coated silk
  Magnetmaterial	Neodymium
  Mounting depth	33 mm / 1.3″
  Mounting Ø	69 mm / 2.72″
  Resonance frequency (Fs)	353 Hz

• ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ
