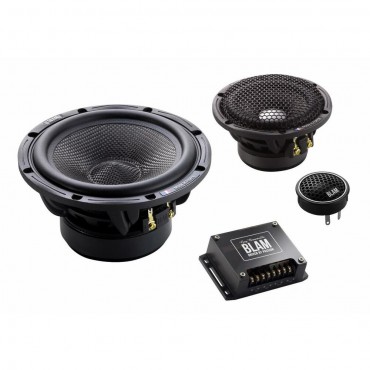

Διαιρούμενη Μονάδα Blam S 165.300 (3 Δρόμων)
1.400,00€
Description
3 (2+1) WAY COMPONENT SPEAKER SYSTEM
System includes two 165 mm (6,5”) woofers, two 80 mm (3”) midranges, two 20 mm (3/4’’) textile dome tweeters and 2 external 6/12 dB/octave external crossovers with adjustable tweeter level: +3 dB 0 dB or -3 dB.
Composition
WS 6.300 HIGH POWER WOOFER
Woofer 6.5” (165 mm)
Max power 250 W / Nom. power 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Die cast aluminum: basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 38 mm voice coil, fiber glass former – 100 x 20 mm Oversized magnetic motor – Gold-plated terminal.
MS 3.55 HIGH EFFICIENCY MIDRANGE DRIVER
Extended frequency 80 mm (3”) midrange
Frequency response 200 Hz – 27 kHz
Die cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 20 mm voice coil, fiber glass former – 55 x 10 mm Oversized Magnetic motor – Aluminum dust cap – Gold-plated terminal.
OS80 compatible with MS3.55
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
TS 20 HR HIGH RESOLUTION TWEETER
20 mm (3/4’’) textile dome diaphragm
Frequency response 2.5 kHz – 43 kHz
Sensitivity 88.3 dB – Impedance 5 Ω
Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling.
BFX 03 AUDIOPHILE GRADE CROSSOVER
6/12/12 dB / octave 2+1 ways audiophile grade crossover
Crossover point: woofer/midrange: 300 Hz
Super tweeter hi-pass: 10 kHz

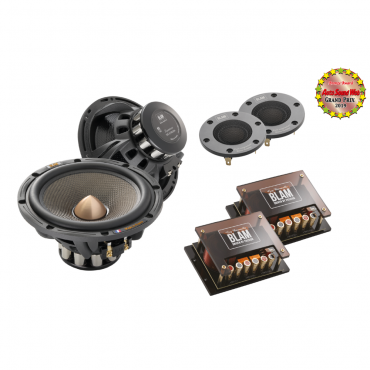

Διαιρούμενη Μονάδα Blam S165 M2 Mg (2 Δρόμων)
2.500,00€
S165 M2 Mg
Description
This kit is composed of two woofers 165 mm (6.5’’), two 25 mm (1’’) magnesium dome tweeter and two Multix WT audiophile 12 dB/octave high pass crossovers with the tweeter level adjustable: +3dB, 0dB or -3dB.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2‘‘ (165 mm) woofer
Maximal power: 250 W / Nominal power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance : 2 Ω
Casted aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER
25 mm (1’’) pure magnesium dome tweeter
Frequency response ultra extended
Sensitivity : 89.8 dB – Impedance : 5 Ω
Very powerful ring neodymium magnet
– High precision machined aluminium face
– Sound transparent protection grill –
Low resonance rear chamber
Available in two colors : black and gold
Crossovers Multix WT 2 ways AUDIOPHILE GRADE CROSSOVER
12 dB/octave high pass crossover
adjustable tweeter level +3dB, 0dB or -3dB
Audiophile components
s
Διαιρούμενη Μονάδα Blam S165 M2 Mg 2016 (2 Δρόμων)
2.000,00€
Description
BLAM-AUDIO
This kit is composed of two woofers 165 mm (6.5’’), two 25 mm (1’’) magnesium dome tweeter and two Multix WT audiophile 12 dB/octave high pass crossovers with the tweeter level adjustable: +3dB, 0dB or -3dB.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2‘‘ (165 mm) woofer
Maximal power: 250 W / Nominal power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance : 2 Ω
Casted aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER
25 mm (1’’) pure magnesium dome tweeter
Frequency response ultra extended
Sensitivity : 89.8 dB – Impedance : 5 Ω
Very powerful ring neodymium magnet
– High precision machined aluminium face
– Sound transparent protection grill –
Low resonance rear chamber
Available in two colors : black and gold
Crossovers Multix WT 2 ways AUDIOPHILE GRADE CROSSOVER
12 dB/octave high pass crossover
adjustable tweeter level +3dB, 0dB or -3dB
Audiophile component

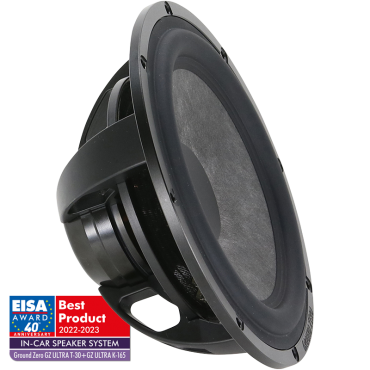

GZ ULTRA K-165
2.500,00€
160 watts max
165 mm / 6.5″ ultra-high-end midwoofer with airflow-optimized spokes and lightweight carbon-fleece cone
- Ultra-high-end 165 mm / 6.5” midwoofer
- Tightly-tolerated technical parameters
- Lightweight carbon-fleece sandwich cone
- High-excursion linear moving rubber surround
- Vented voice coil former reducing distortion
- Round CCA wire voice coil increasing power handling
- Airflow-optimized aluminum cast spokes
- Documented final technical inspection
- Wooden box packaging / in matching pairs
- GZ ULTRA 165-GRILL protection grills available separately
-
Model Ultra-high-end midwoofer
Diameter 165 mm / 6.50″
Power Handling (RMS/max.) 100 / 160 Watts
Impedance 4 Ohms
Efficiency 87 dB
Frequency Response 45 Hz – 5000 Hz
Voice Coil 32,5 mm / 1.28″
Membran Layout Carbon-fleece sandwich
Mounting Ø 147 mm / 5.79″
Mounting Depth 67 mm / 2.64″
Resonance Frequency (Fs) 43 Hz
- ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

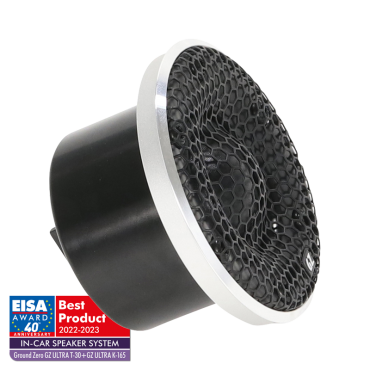

GZ ULTRA T-30
2.500,00€
150 watts max
30 mm / 1.18″ ultra-high-end soft dome tweeter with precision-coated textile diaphragm and CNC manchined aluminum chamber
- 30 mm / 1.18″ ultra-high-end tweeter
- Tightly-tolerated technical parameters
- Vented voice coil former reducing distortion
- Lightweight CCA voice coil improving efficiency
- Particular dome for pressure balancing
- Machined aluminum chamber with wave diffuser
- GZ-design wave-guide face plate
- High-efficient neodymium motor
- Documented final technical inspection
- Wooden box packaging / in matching pairs
-
Model Ultra-high-end tweeter
Diameter 30 mm / 1.18″
Power Handling (RMS/max.) 100 / 150 Watts
Impedance 4 Ohms
Efficiency 82 dB
Frequency Response 1000 Hz – 26 kHz
Voice Coil CCA
Membran Layout coated textile
Mounting Ø 60 mm / 2.36″
Mounting Depth 41 mm / 1.61″
Resonance Frequency (Fs) 500 Hz
- ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

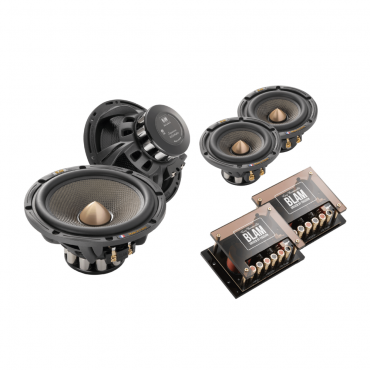

Διαιρούμενη Μονάδα Blam S 165 M2 FR (2 Δρόμων)
2.500,00€
Description
BLAM-AUDIO
This kit is composed of two woofers 165 mm (6.5’’), two 80 mm (3’’) medium and four external 6/12 dB/octave high pass crossovers.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2‘‘ (165 mm) woofer
Maximal power: 250 W / Nominal power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance : 2 Ω
Die Cast aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB.
Medium MS3 – EXTENDED FREQUENCY SPEAKER
80 mm (3’’) extended frequency medium
Maximal power: 100 W / Nominal power: 25 W
Frequency response: 120 Hz – 32 KHz
Impedance 3 Ω
Die Cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life damper – 20 mm voice coil on fiber glass former – Ultra powerful 8 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB.
Crossovers Multix WOMID AUDIOPHILE GRADE CROSSOVER
Audiophile components
High pass 6/12 dB/octave crossovers
Adjustable frequency between 150 and 500 Hz

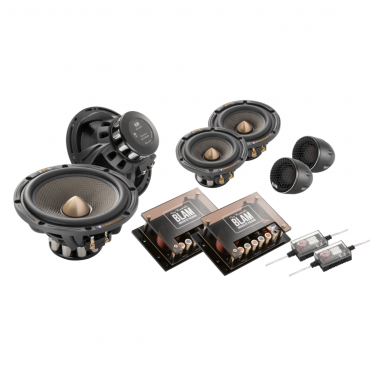

Διαιρούμενη Μονάδα Blam S165 M3 (3 Δρόμων)
3.000,00€
Description
BLAM-AUDIO
This kit is composed of two woofers 165 mm (6.5’’), two 80 mm (3’’) medium, two 25 mm (1’’) magnesium dome tweeter and four external 6/12 dB/octave high pass crossovers.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2‘‘ (165 mm) woofer
Maximal power: 250 W / Nominal power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance : 2 Ω
Die Cast aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB.
Medium MS3 – EXTENDED FREQUENCY SPEAKER
80 mm (3’’) extended frequency medium
Maximal power: 100 W / Nominal power: 25 W
Frequency response: 120 Hz – 32 KHz
Impedance 3 Ω
Die Cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life damper – 20 mm voice coil on fiber glass former – Ultra powerful 8 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1 dB.
OS80 compatible with MS3
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER
25 mm (1’’) pure magnesium dome tweeter
Frequency response: 1.2 KHz – 23 KHz
Sensitivity : 89 dB – Impedance : 5 Ω
High efficiency neodymium magnet (N38)
High precision machined aluminium faceplate
Sound transparent protection grill
Crossovers Multix WOMID AUDIOPHILE GRADE CROSSOVERS
Audiophile components
High pass 6/12 dB/octave crossovers
Adjustable frequency between 150 and 500 Hz
Crossovers BFT01 HIGH QUALITY CROSSOVERS
High pass 12 dB/octave crossover
Adjustable tweeter level at +3 dB, 0 dB or -3 dB
