1" ring radiator
SD-2 neodymium motor
Non resonant aluminium chamber
Multiple chamber low compression design machined with black faceplate and phase plug
More details in PDF




Μέγεθος: 1"
Αντίσταση (Ohm): 4
Ευαισθησία: 94.5 db
Power (RMS): 160 W
Power (Music): -
Διάμετρος Τρύπας: 70 mm
Βάθος Μεγαφώνου: 25 mm

1" ring radiator
SD-2 neodymium motor
Non resonant aluminium chamber
Multiple chamber low compression design machined with black faceplate and black phase plug
More details in PDF




Μέγεθος: 1"
Αντίσταση (Ohm): 4
Ευαισθησία: 94.5 db
Power (RMS): 160 W
Power (Music): -
Διάμετρος Τρύπας: 70 mm
Βάθος Μεγαφώνου: 25 mm

5.25" Neo magnet
Under hung motor system
exceptionally long linear stroke
More details in PDF




Μέγεθος: 5.25"
Αντίσταση (Ohm): 8
Ευαισθησία: 83.4
Power (RMS): 80 W
Power (Music): 150 W
Διάμετρος Τρύπας: 123 mm
Βάθος Μεγαφώνου: 89.75 mm

5.25" Neo magnet
Under hung motor system
exceptionally long linear stroke
More details in PDF




Μέγεθος: 5.25"
Αντίσταση (Ohm): 4
Ευαισθησία: 85.9 db
Power (RMS): 80 W
Power (Music): 150 W
Διάμετρος Τρύπας: 123 mm
Βάθος Μεγαφώνου: 89.75 mm

6.5" Neo magnet
Under hung motor system
exceptionally long linear stroke
More details in PDF




Μέγεθος: 6.5"
Αντίσταση (Ohm): 4
Ευαισθησία: 87.2 db
Power (RMS): 80 W
Power (Music): 150 W
Διάμετρος Τρύπας: 158 mm
Βάθος Μεγαφώνου: 97.3 mm

6.5" Neo magnet
Under hung motor system
exceptionally long linear stroke
More details in PDF




Μέγεθος: 6.5"
Αντίσταση (Ohm): 8
Ευαισθησία: 85.4 db
Power (RMS): 80 W
Power (Music): 150 W
Διάμετρος Τρύπας: 158 mm
Βάθος Μεγαφώνου: 97.3 mm

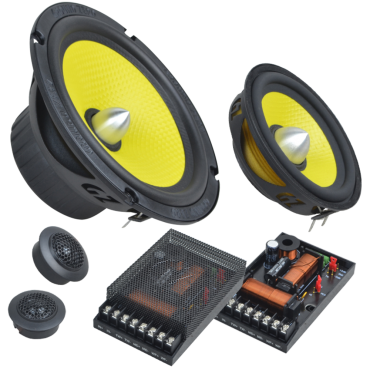

Τα PRS 165.3 είναι τα κορυφαία συστήματα στην κατηγορία τους! Μια χάρτινη μεμβράνη από ενισχυμένες ίνες γυαλιού παρέχει μια δυναμική, ισχυρή βασική αναπαραγωγή ήχου με μια ζεστή ηχητική εικόνα. Το ενισχυμένο μεταλλικό καλάθι εγγυάται τη βέλτιστη σταθερότητα και επιτρέπει τον καλό αερισμό του ισχυρού μαγνήτη φερρίτη. Τα υφασμάτινα τουίτερ 19 mm παίζουν μεταξένια, απαλά και διακριτικά. Τα δύο σύνθετα υλικά παραδίδονται με ένα υψηλής ποιότητας  crossover, το οποίο είναι εξοπλισμένο με περίτεχνα κατασκευασμένα πηνία και πυκνωτές αλουμινίου υψηλής ποιότητας. Και εδώ, είναι δυνατό το φιλτράρισμα μεσαίας κλίμακας δύο σταδίων με ρύθμιση στάθμης 6 dB/12 dB. Technical data: 165mm ( 6.5") Woofer 80 mm (3") Midrange driver: 19 mm (3/4") Tweeter Impedance: 4 Ohm Rated/music power handling woofer: 70/100 W Nominal/music power handling midrange driver: 20/30 W Sound pressure level: 90 dB Outer diameter woofer: 165 mm Cut-out diameter woofer: 142 mm Installation depth woofer: 66,4 mm Outer diameter midrange driver: 94 mm Cut-out cutter midrange driver: 77 mm Installation depth midrange driver: 33.9 mm Κατασκευάζεται στη Γερμανία.

130 Watts max

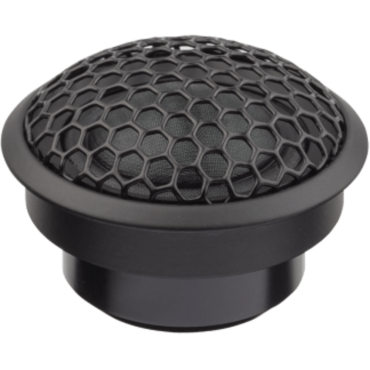

1″ high performance silk dome tweeter with coupled chamber
25 mm / 1″ high performance tweeter
Made in Germany
Coated silk dome
High power capable copper voice coil
Anodyzed aluminum housing
Damped coupled chamber
Neodymium motor
Connection wires
1 pair / package
Model
High-Performance tweeter
Diameter
25 mm / 0.98"
Power Handling (RMS/max.)
80 / 130 Watts
Impedance
4 Ohms
Efficiency
90 dB
Frequency Response
2000 Hz – 28 kHz
Voice Coil
25 mm / 1"
Membran Layout
Coated silk
Magnet material
Neodymium
Resonance Frequency (Fs)
750 Hz

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

ΠΕΡΙΣΣΟΤΕΡΕΣ ΠΛΗΡΟΦΟΡΙΕΣ

Experience audiophile listening pleasure with true hi-fi character in your Mercedes-Benz Sprinter VS30 with the holistic sound solution from EMPHASER UNIVERSE.   The EMPHASER Universe speakers provide audiophile sound experiences in your Mercedes-Benz. The selected materials allow a high precision in music reproduction - with exceptional detail and immense spatial depth. The EM-MBF3 is a 2.1 way component system including center speaker and acoustically perfectly matched to the vehicle acoustics of the Mercedes-Benz Sprinter VS30. It replaces the original factory system without much effort via simple plug & play, as all components fit perfectly into the speaker mounts and are simply connected to the original plugs. The 16.5 cm woofers are equipped with aluminum cones that guarantee a detailed, natural sound. The Connex center spider and the specially shaped Cambridge surround in "M" design ensure low-distortion music reproduction - even at high cone excursion. The neodymium drive provides the necessary power for a powerful sound. The tweeters with 19 mm fabric dome impress with their brilliance and ability to reproduce even the smallest music details. The cabinet can be quickly mounted in its original place thanks to its plug & play fit. Another highlight is the center speaker. Also equipped with an aluminum cone and designed as a full-range speaker, it fantastically places the music action directly on the dashboard. At the heart of the system are the extensively designed crossovers: The components were defined after intensive test series in the laboratory and vehicle to achieve the best possible phase position of tweeter and woofer in the takeover area. The result is authentic voices and instruments with impressive spatial depth.   MAIN FEATURES: Plug & Play 2.1 way compo for Mercedes-Benz Sprinter VS30 Vehicle specific connections Center speaker for optimal sound staging, incl. second connector for full E-Call compatibility woofer with aluminum cone and Cambridge surround, neodymium magnet Faraday copper cap for stable magnetic field, 25 mm voice coil 19 mm tweeter with fabric dome, without ferrofluid cooling for high dynamics 12 dB/6 dB/oct. crossover @ 5000 Hz with high quality components TECHNICAL DATA: Rated power 50 W RMS Frequency response 55 Hz - 22 kHz Impedance 4 Ohm Sensitivity 88 dB Scope of delivery: 2 pieces tweeters 1 piece center speaker 2 pieces woofer / midrange driver 3 pieces crossover

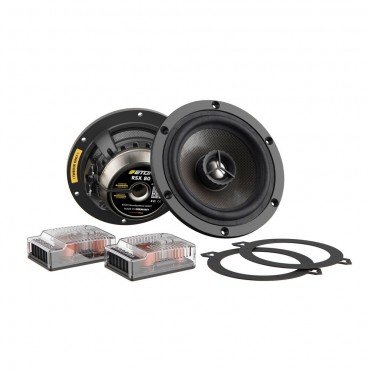

Eton RSX 80 3″ 2 Way (80mm) Ομοαξονικό

Woofer / midrange	80 mm
Tweeter	15 mm
Impedance	4 ohms
Nominal / music load capacity	50/80 W.
Characteristic sound pressure	87 dB
outer diameter	80 mm
Cutout diameter	77 mm
Installation depth	33.9 mm

Nominal impedance  4 Ohm Resonance freq. 1 W  116 Hz Resonance freq. 130 Hz Mechanical Q QMS 4.74 Electrical Q QES 0.71 Total Q QT 0.60 Voice coil diameter 25 mm Voice coil former Aluminium Voice Coil length 7 mm Lagen Voice Coil layers 2 Force factor BL x l 3.30 Tm Mass of speaker 0.33 kg Characteristic sound 87 dB SPL DIN size 80 mm Mounting diameter ø 77 mm Mounting depth 33.9 mm Basket material Aluminium Cone material Carbon Rohacell Tweeter, integrated ø 15 / 0,6 mm /

Ultimate Car Audio by JBL.

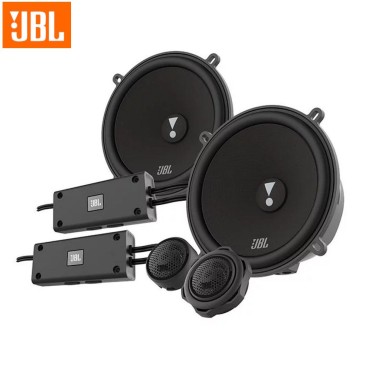

JBL’s Stadium Series speakers – available in 2″, 3″, 5-1/4″, 6-1/2″, 6″ x 8″, 4″ x 6″, 6″ x 9″, and 3/4″ – bring iconic JBL sound that can only come from a 75-year pedigree of audio excellence to virtually any car on the road. Stadium’s Plus One™ fiberglass woofers deliver high-output, deep and robust bass. The high-resolution 3/4″ edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2″ and 3″ midranges are available to upgrade two-way component systems into three-way. The compact 3″ midrange speakers also offer a perfect plug-and-play solution with low frequency response to 300Hz, and high sensitivity.



General Specifications

• Power Handling : 80Wrms, 240W peak


• Sensitivity (@ 2.83V) : 93dB


• Frequency Response : 45Hz – 40kHz


• Voice Coil Diameter : 1-3/16in. (30mm)


• Impedance : 3 ohms

Product Features:

• component speaker system includes 2 woofers, 2 tweeters, and 2 external crossovers


• 5-1/2" Plus One+ glass-fiber woofer cone with hi-roll rubber surround


• edge-driven aluminum dome tweeter


• 3-ohm impedance


• tweeter level adjustment: 0 or -3 dB


• handles up to 110 watts RMS (330 watts peak power)


• frequency response: 45-40,000 Hz


• sensitivity: 93 dB at 2.83 volts


• grilles not included





A new sound

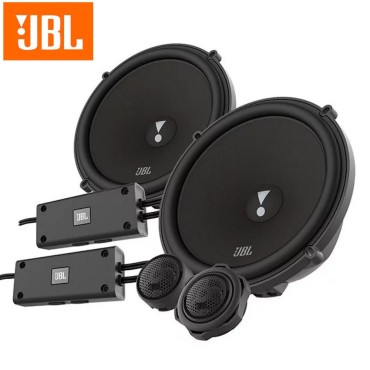

Say goodbye to your old, ragged factory speakers and experience an instantaneous jump in sound quality with JBL's Stadium Series speakers. The Stadium 62CF 6-1/2" component speaker system sports a hefty magnet and oversized voice coil for awesome impact that puts your old hardware to shame. And with JBL's high sensitivity design, you'll be able to make the most of any power you give these speakers.

Separate edge-driven dome tweeters

JBL created this system to be a hi-fi solution for those who want better sound in their vehicle. You'll find an edge-driven design in their separate aluminum dome tweeters for a smoother, more open response and minimal distortion at high volume levels.

Plus One+ woofer technology

JBL's glass fiber woofer will hold its shape when the power's cranked up, so you still get punchy and defined bass. Glass fiber weighs less than traditional materials, so you don't need a ton of power to drive this woofer either. JBL's Plus One+ woofer technology extends the cone right up to the edge of the basket, giving you lots of surface area — and a bigger cone means more bass to complement the superior high-frequency response.

Versatile crossovers

JBL holds their external crossovers to the same standards as the rest of this speaker system. The slim-build crossovers help shape the Stadium sound and bring out all the details that make your music sound real. Each crossover also features a tweeter level control button so you can adjust the brightness to your taste.

These crossovers will easily accommodate an upgrade to a 3-way system if you'd like to add JBL's optional Stadium Series 22S or 32S midrange speakers.

Power handling perfect for any system

These 3-ohm speakers boast ultra-high sensitivity so that you can power them with a factory radio or aftermarket stereo, but you'll get your best results feeding them plenty of power from an outboard amp. Either way, these speakers' low impedance safely takes advantage of every watt of power available for exceptional performance.

Ultimate Car Audio by JBL.

JBL’s Stadium Series speakers – available in 2″, 3″, 5-1/4″, 6-1/2″, 6″ x 8″, 4″ x 6″, 6″ x 9″, and 3/4″ – bring iconic JBL sound that can only come from a 75-year pedigree of audio excellence to virtually any car on the road. Stadium’s Plus One™ fiberglass woofers deliver high-output, deep and robust bass. The high-resolution 3/4″ edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2″ and 3″ midranges are available to upgrade two-way component systems into three-way. The compact 3″ midrange speakers also offer a perfect plug-and-play solution with low frequency response to 300Hz, and high sensitivity.



General Specifications

• Power Handling : 110Wrms, 330W peak


• Sensitivity (@ 2.83V) : 93dB


• Frequency Response : 45Hz – 40kHz


• Voice Coil Diameter : 1-3/16in. (30mm)


• Impedance : 3 ohms

Product Features:

• component speaker system includes 2 woofers, 2 tweeters, and 2 external crossovers


• 6-1/2" Plus One+ glass-fiber woofer cone with hi-roll rubber surround


• edge-driven aluminum dome tweeter


• 3-ohm impedance


• tweeter level adjustment: 0 or -3 dB


• handles up to 110 watts RMS (330 watts peak power)


• frequency response: 45-40,000 Hz


• sensitivity: 93 dB at 2.83 volts


• grilles not included





A new sound

Say goodbye to your old, ragged factory speakers and experience an instantaneous jump in sound quality with JBL's Stadium Series speakers. The Stadium 62CF 6-1/2" component speaker system sports a hefty magnet and oversized voice coil for awesome impact that puts your old hardware to shame. And with JBL's high sensitivity design, you'll be able to make the most of any power you give these speakers.

Separate edge-driven dome tweeters

JBL created this system to be a hi-fi solution for those who want better sound in their vehicle. You'll find an edge-driven design in their separate aluminum dome tweeters for a smoother, more open response and minimal distortion at high volume levels.

Plus One+ woofer technology

JBL's glass fiber woofer will hold its shape when the power's cranked up, so you still get punchy and defined bass. Glass fiber weighs less than traditional materials, so you don't need a ton of power to drive this woofer either. JBL's Plus One+ woofer technology extends the cone right up to the edge of the basket, giving you lots of surface area — and a bigger cone means more bass to complement the superior high-frequency response.

Versatile crossovers

JBL holds their external crossovers to the same standards as the rest of this speaker system. The slim-build crossovers help shape the Stadium sound and bring out all the details that make your music sound real. Each crossover also features a tweeter level control button so you can adjust the brightness to your taste.

These crossovers will easily accommodate an upgrade to a 3-way system if you'd like to add JBL's optional Stadium Series 22S or 32S midrange speakers.

Power handling perfect for any system

These 3-ohm speakers boast ultra-high sensitivity so that you can power them with a factory radio or aftermarket stereo, but you'll get your best results feeding them plenty of power from an outboard amp. Either way, these speakers' low impedance safely takes advantage of every watt of power available for exceptional performance.

HiEnd Speaker Set with 12dB / Octave Crossover
Alu Die cast Chassis
Patented NRSC Fibre Glass Cone
More details in PDF




Δρόμοι: 2
Tweeter Diameter: 19mm
Midrange Diameter: No
Woofer Diameter: 5,25" (130mm)
Αντίσταση (Ohm): 4
Ευαισθησία: 88dB
Power (RMS): 100Watt
Power (Music): No
Διάμετρος Τρύπας: 125mm
Βάθος Μεγαφώνου: 71mm
