Operation class
(PT) Classe D

Number of Channels
(PT) 04

Maximum power
(PT) @ 12,6 VDC - 2 OHM: 800W RMS (4 x 200W RMS) @ 12,6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)

Input Sensitivity
(PT) 250mV

Signal to Noise Ratio
(PT) >88dB

Frequency response
(PT) 10Hz ~45KHz (-3dB)

Crossover high pass (HPF)
(PT) 90Hz (-12dB/8ª) Fixo

Crossover low pass (LPF)
(PT) 90Hz (-12dB/8ª) Fixo

Input Impedance
(PT) 18K OHMS

Output Impedance
(PT) 2 OHMS

Protection system
(PT) Sobrecarga na saída

Min. Supply Voltage
(PT) 9VDC

Maximum Power Supply Voltage
(PT) 16VDC

Consumption at rest
(PT) 1,40A

Maximum music consumption
(PT) @12,6VDC 43A

Maximum consumption in sinusoidal signal
(PT) 86A

Dimensions (H x W x D) mm
(PT) 182 x 52 x 227mm

Weight
(PT) 1,60Kg











Description
The HD3000 RGB Edition transforms your car audio into an immersive experience. With its built-in RGB LED lighting, you can choose from 108 light effects that perfectly complement your music, syncing to the beat for the perfect atmosphere. This 3000W RMS amplifier is available in 1, 2 or 4 Ohms versions and offers an exceptional frequency response of 10Hz to 20KHz, ensuring compatibility with a variety of speaker models. Plus, with built-in Gain, Low Pass, High Pass, and Bass Boost adjustments, you have complete control over your listening experience. Another new feature is compatibility with the Monitor Level Remote accessory, in addition to the characteristic M1 LED monitor.
Choose the HD3000 RGB Edition for unmatched power, quality and style in your sound system.

Technical information



1 Ohm VERSION
Nominal Power @12.6VDC 1 Ohm: 3000W RMS 2 Ohms: 2025W RMS 4 Ohms: N/A 8 Ohms: N/A

2 Ohms VERSION
Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: 3000W RMS 4 Ohms: 2025W RMS 8 Ohms: N/A

4 Ohms VERSION
Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: N/A 4 Ohms: 3000W RMS 8 Ohms: 2025W RMS

Number of Channels
01

Input Sensitivity
0.22 V ~ 4V

Signal to Noise Ratio
>89 dB

Frequency Response
10Hz ~ 20KHz (-3 dB)

Crossover high pass (HPF)
10Hz ~ 80Hz (-12 dB/8ª) Variable

Crossover low pass (LPF)
80Hz ~ Full (-12 dB/8ª) Variable

bass boost
0 ~ 10 dB (50 Hz)

Input Impedance
10K Ohms

protection system
Short circuit at the output and in relation to GND, low impedance protection, low/high voltage protection and thermal protection.

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
16VDC

Consumption at rest
1 Ohm: 1.50A 2 Ohms: 1.60A 4 Ohms: 1.90A

Maximum music consumption
1 Ohm: 153A 2 Ohms: 152A 4 Ohms: 149A

Dimensions (WxHxD)
9.01" x 2.56" x 7.32" (229 x 65 x 186 mm)

Weight
5.28lb (2.40 Kg)

EAN
1 Ohm: 7908706601169 2 Ohms: 7908706601176 4 Ohms: 7908706601183



 https://youtu.be/DIrc5LfaXg0



Operation class
Class D

Number of Channels
01

Maximum power
@ 12,6 VDC - 1 OHM: 1200W RMS @ 12,6 VDC - 2 OHMS: 675W RMS @ 12,6 VDC - 4 OHMS: 370W RMS

Input Sensitivity
18K OHMS

Signal to Noise Ratio
>90dB

Frequency response
10Hz to 20KHz

Crossover high pass (HPF)
10Hz ~ 80Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
80Hz ~ Full (-12dB/8ª) Variable

Bass Boost
0 ~ 10dB Variable Frequency (35 ~ 55)

Thermal Management
(PT) Smart Cooler com 2 velocidades

Efficiency
79%

Input Impedance
10k OHMS

Output Impedance
1 OHM

Protection system
Output Short / High and Low Power Supply

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
16 VDC

Consumption at rest
900mA

Maximum music consumption
@ 12,6 VDC: 60A

Maximum consumption in sinusoidal signal
@ 12,6VDC: 120A

Dimensions (H x W x D) mm
184 x 54 x 177mm

Weight
1,395Kg

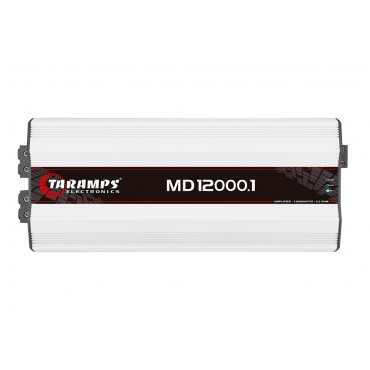

The MD 12000.1 amplifier is carefully developed with state-of-the-art technology, offering unique efficiency and performance for automotive audio systems. Classified as Mono, it has a maximum power of 12.000 watts RMS, running at a 0.5-ohm impedance, with a single 12.000 watts RMS channel. This amplifier is FULL-RANGE, operating on all frequencies in the right measure.


Operation class
Class D

Number of Channels
01

Maximum power
@ 12.6 VDC - 0.5 OHM: 12,000W RMS @ 12.6 VDC - 1 OHM: 7,200W RMS

Input Sensitivity
220mV

Signal to Noise Ratio
>95dB

Frequency Response
10 Hz ~5 kHz (-3dB)

Crossover high pass (HPF)
10 Hz ~90 Hz (-12dB/8th) Variable

Crossover low pass (LPF)
90 Hz ~5 kHz (-12dB/8th) Variable

Bass Boost
Freq.: 35 Hz ~55 Hz Boost: 0 ~10dB

Efficiency
79%

Input Impedance
15K ohms

Output Impedance
0,5 ohm

Protection system
Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
3.6A

Maximum music consumption
602.5A

Maximum consumption in sinusoidal signal
1,205A

Dimensions (H x W x D) mm
8.976 x 2.755 x 21.653 inches (228 x 70 x 550mm)

Weight
17.526 lbs (7.95 kg)





Operation class
Class D

Number of Channels
01

Maximum power
@ 12,6 VDC - 1 OHM: 1800W RMS @ 12,6 VDC - 2 OHMS: 1410W RMS

Input Sensitivity
220 mV

Signal to Noise Ratio
>88dB

Frequency response
10Hz ~ 20KHz (-3dB)

Crossover high pass (HPF)
10Hz ~ 80Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
80Hz ~Full (-12dB/8ª) Variable

Bass Boost
0 ~ 10.5dB (50Hz)

Thermal Management
Smart Cooler (fan controlled by temperature or audio, with 3 speeds)

Efficiency
78%

Input Impedance
10k OHMS

Output Impedance
1 OHM

Protection system
Output Short / High/Low Supply Voltage / Thermal Protection

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
1.7 A

Maximum music consumption
91 A

Maximum consumption in sinusoidal signal
182 A

Dimensions (H x W x D) mm
228 x 70 x 188mm

Weight
2.18Kg





Taramps presents the amplifier module MD 250.1 in the 2 ohms version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 250 Watts RMS. Welcome to the sound world of Taramps.




Operation class
(PT) Classe D

Number of Channels
(PT) 01

Maximum power
(PT) @ 13,8 VDC - 2 OHMS: 250W RMS @ 13,8 VDC - 4 OHMS: 160W RMS

Input Sensitivity
(PT) 220mV

Signal to Noise Ratio
(PT) >90dB

Frequency Response
(PT) 10Hz ~ 20KHz (-3dB)

Crossover high pass (HPF)
(PT) 10Hz ~ 80Hz (-12dB/8ª) Variável

Crossover low pass (LPF)
(PT) 80Hz ~ Full (-12dB/8ª) Variável

Bass Boost
(PT) 0 ~ 10dB (50Hz)

Input Impedance
(PT) 10k OHMS

Protection system
(PT) Curto na saída / Proteção térmica

Min. Supply Voltage
(PT) 9 VDC

Maximum Power Supply Voltage
(PT) 16 VDC

Consumption at rest
(PT) 0,5 A

Maximum music consumption
(PT) 12,5 A

Maximum consumption in sinusoidal signal
(PT) 25 A

Dimensions (H x W x D)
(PT) 138 x 49 x 132mm

Weight
(PT) 0,65 Kg

The MD 3000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 3000W RMS with 1 OHM impedance, and one 3000W RMS channel. The MD 3000 is FULL RANGE this way you appreciate all the frequencies in the right measure.




Operation class
Class D

Number of Channels
01

Maximum power
@ 12,6 VDC - 1 OHM: 3000W RMS @ 12,6 VDC - 2 OHMS: 1920W RMS

Input Sensitivity
220 mV

Signal to Noise Ratio
>90dB

Frequency response
10Hz ~ 18KHz (-3dB)

Crossover high pass (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
90Hz ~ Full (-12dB/8ª) Variable

Bass Boost
0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)

Efficiency
79%

Input Impedance
22K Ohms

Output Impedance
1 OHM

Protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
1.0 A

Maximum music consumption
150 A

Maximum consumption in sinusoidal signal
300 A

Dimensions (H x W x D) mm
228 x 70 x 218mm

Weight
2.5Kg

Amplifier Module 5000 watts RMS Classe D (1 channel 5000W RMS)


Operation class
(PT) Classe D

Number of Channels
(PT) 01

Maximum power
(PT) @ 12,6 VDC - 1 OHM: 5000W RMS @ 12,6 VDC - 2 OHMS: 3200W RMS

Input Sensitivity
(PT) 220 mV

Signal to Noise Ratio
(PT) >90dB

Frequency response
(PT) 10Hz ~ 10KHz (-3dB)

Crossover high pass (HPF)
(PT) 10Hz ~ 90Hz (-12dB/8ª) Variável

Crossover low pass (LPF)
(PT) 90Hz ~ 10KHz (-12dB/8ª) Variável

Bass Boost
(PT) 0 ~ 10dB (50Hz) Freq. Variável (35 ~ 55)

Efficiency
(PT) 81%

Input Impedance
(PT) 22K Ohms

Protection system
(PT) Curto na saída, Curto na saída em relação ao GND, Baixa impedância, Tensão de alimentação baixa e alta, Proteção Térmica.

Min. Supply Voltage
(PT) 9VDC

Maximum Power Supply Voltage
(PT) 16VDC

Consumption at rest
(PT) 1.20 A

Maximum music consumption
(PT) 244.5 A

Maximum consumption in sinusoidal signal
(PT) 489 A

Dimensions (H x W x D) mm
(PT) 228 x 70 x 327mm

Weight
(PT) 2.5Kg








Line
Linha MD


Reference
MD 8000.1


Number of Channels
01


Max Output Power
@ 12,6 VDC - 1 OHM: 8000W RMS @ 12,6 VDC - 2 OHMS: 5120W RMS


Signal Noise/Ratio
>90dB


Frequency Response
10Hz - 10KHz (-3dB)


Input Impedance
22K Ohms


Protection System
Curto na Saída, Curto na Saída em Relação ao GND, Proteção Térmica e Alimentação Alta/Baixa


Minimum Supply Voltage
9VDC


Maximum Supply Voltage
16VDC


Idle Consumption
2A


Musical Maximum Consumption
373,4A


Sinusoidal Signal Maximum Consumption
746,90A


Dimensions (WxHxD)
228 x70 x 419mm


Weight
6100Kg

Description

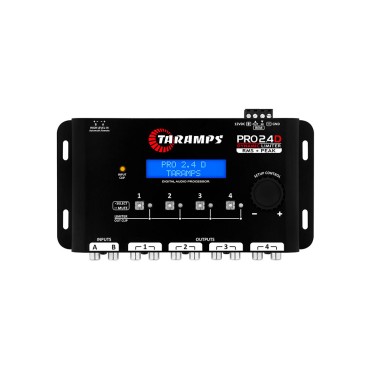

The Pro 2.4 Dynamic Peak DSP offers 4 outputs and stands out for its intuitive adjustments. Unlike other models, it is not necessary to give up resources to activate others, as they can all be used simultaneously. New features include Peak Limiter and RMS Limiter functions, increasing the performance and safety of the car audio system.
It has crossover adjustments with various filters, 5-band input equalizer with variable center frequency, 12 preset equalizers, parametric output equalizer, alignment, routing, gain and attenuation adjustment, phase inversion, input and output clip indicator, remote signal output to activate amplifiers, audio generator, among other features. Its audio input options via RCA and High Level Input allow use with conventional and original players, and the Anti-pop system prevents unwanted noises when turning the sound on and off. The Pro 2.4 Dynamic Peak is ideal for keeping your sound system always regulated, aligned and with the quality you deserve.

Technical information



Input impedance
RCA: 10K Ohms WIRE: 50 Ohms

Output impedance
47 Ohms

Maximum input level
RCA: 5.9Vpp (2.1V RMS) WIRE: 28Vpp (10V RMS)

Maximum output level
5.9Vpp (2.1V RMS)

Frequency response
10Hz ~ 22KHz (-1dB)

Total Harmonic Distortion
0.01%

Signal to Noise Ratio
>90dB

Crosstalk (separation between channels)
>80dB

Input Channels
02

output channels
04

Routing
Inputs / Outputs: A, B, A+B

General gain
-80 to 0dB

Output gain
-45 to +15dB

cutoff frequency
Variable from 10Hz to 22KHz

Linkwitz Rilley Filters
-12, -18, -24, -30, -36, -42, -48dB/Octave

Butterworth filters
-6,-12,-18, -24, -30, -36, -42, -48dB/Octave

Alignment
Delay: 8.0mS (272cm / 107.09")

Phase
0 / 180°

Adjustable Limiter
Adjustable RMS Limiter: Threshold: -48 to 0dB (8mV to 2VRMS) Attack: 0.1mS to 100mS Hold: 0 to 2000mS Release: 1mS to 2000mS Adjustable PEAK Limiter: Adjustable Threshold / Dynamics: 3 to 36dB Hold: 0 to 2000mS Release: 1mS to 2000mS

Input Equalizer
5 bandas, 2 oitavas: Central Frequency: EQ.1 - 63Hz (adjustable from 40Hz to 100Hz) EQ.2 - 250Hz (adjustable from 160Hz to 400Hz) EQ.3 - 1000Hz (adjustable from 630Hz to 1600Hz) EQ.4 - 4000Hz (adjustable from 2500Hz to 6300Hz) EQ.5 - 16000Hz (adjustable from 10000Hz to 20000Hz) Attenuation - Gain: -12dB to +12dB Q Factor: 0.4 a 10 12 presets: Flat, Loudness, Bass Boost, Mid-Bass Boost, Treble Boost, Powerful, Electronic, Rock Style, Hip-Hop Style, Pop Music, Vocal e Competition

central frequency
(PT)

Individual MUTE function on outputs
(PT)

Audio Generator (Sine Waveform)
Frequency range: Variable from 10Hz to 22KHz Gain: -60 a 0dB (2mV a 2VRMS) Modes: Fixed Frequency / 3-Speed scanning

Languages
Brazilian Portuguese, English and Spanish

Memory Positions
Factory default + 3 assignable positions Screen saver function: Text up to 15 characters

POWER SUPPLY VOLTAGE (POWER)
9 to 16VDC

Dimensions (W x H x D)
7.80" x 1.46" x 4.45" (198 x 37 x 113 mm)

Weight
0.99lb (0.45Kg)

EAN
7908706601305












Description
Always dedicated to improving your experience with your car audio system, Taramps innovated again by producing the PRO2.6S audio processor.  DSP, 2 independent inputs and 6 outputs, it has features such as routing, crossover filters, delay adjustment, alignment, phase inversion, adjustable limiter, parametric equalizer on outputs, mirroring, mute, sinusoidal wave generator and memory for settings . Taramps, always working to make your audio system more complete and easier to handle

Technical information



Input impedance
18k ohms

Output impedance
47 ohms

Maximum input level
6Vpp (2.1V RMS)

Maximum output level
10.2Vpp (3.6V RMS)

Frequency response
10 Hz ~ 20 kHz

Signal to Noise Ratio
>90dB

Crosstalk (separation between channels)
>80dB

Input Channels
02

output channels
06

Routing
A,B,A+B

General gain
80 ~ 0dB

Output gain
24 ~ +6dB

crossover
HPF (Variable): Variable Filters LPF (Variable): Variable Filters

Alignment
5.7 mS - 76.38" (194cm)

Phase
0 / 180º

Threshold
24 ~ 0dB

attack
1ms ~ 900ms

Release
1ms ~ 4000ms

Parametric equalizer (3 bands) per output
Central Frequency: 20Hz ~ 20KHz Attenuation - Gain: -12dB ~ +12dB Q Factor: 0.4 ~ 10

Frequency range
20 Hz ~ 20 kHz

Gain
-60 ~ 0dB

Languages
Portuguese - English - Spanish

Memory Positions
3 + factory default

POWER SUPPLY VOLTAGE (POWER)
9 ~ 16VDC

Weight
1.21 lbs (0.550 kg)

EAN
7898556844093















Output Current (A)  180


Input Voltage Bivolt


Output Voltage 12.5 to 14.4


Floating Operation Yes


Eficiency (%) 85


Power Input (watts) 2590





Max Output Power 3600W


Maximmum Nominal Current Output 250 A


Input Range 220V 190 - 250 VAC , Input Fuse (internal) 40A, porcelain


Max. Ac. Power Consumption 220V 28 A


Regulation maximum at full load (240A @14.2V) (250A @14,2V): < 2%


Output Voltage 12,6V / 13,8V / 14,4V


Dimensions (WxHxD) 230 X 73 X 210mm

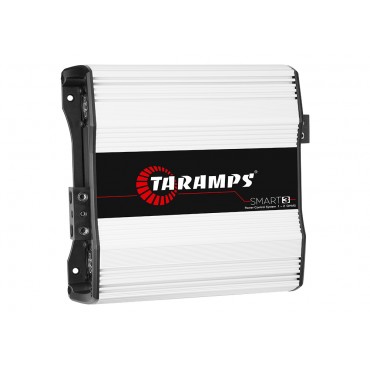

SMART 3 – 1~2 OHMS
Amplifier Module 3000 watts RMS Classe D (1 channel 3000W RMS)



Operation class
Class D

Number of Channels
01

Maximum power
@ 12.6 VDC - 1 OHM: 3000W RMS @ 12.6 VDC - 2 OHMS: 3000W RMS @ 12.6 VDC - 4 OHMS: 2000W RMS

Input Sensitivity
0.22V ~ 4V

Signal to Noise Ratio
>90dB

Frequency Response
10Hz ~ 10KHz (-3dB)

Crossover high pass (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
90Hz ~ 10KHz (-12dB/8ª) Variable

Bass Boost
Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB

Efficiency
79%

Input Impedance
10K Ohms

Protection system
Output short-circuit, low/high supply voltage and thermal protection

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
16 VDC

Consumption at rest
2.40 A

Maximum music consumption
150 A

Maximum consumption in sinusoidal signal
300 A

Dimensions (H x W x D)
8.98" x 2.76" x 9.37"

Weight
5.72lb

Description
Smart 8 BASS is yet another Taramps innovation for automotive sound systems. The exclusive Power Control System technology, now applicable to subwoofers, ensures even more safety and quality in the low frequencies by monitoring the amplifier during operation. It is a multi-impedance single-channel amplifier that delivers 8000 Watts RMS of power at any impedance between 0.5 and 2 Ohms. Its double robust connector allows the use of power cables with a larger gauge for better performance. Finally, it is compatible with the LED Clip Monitor M1 and the new Monitor Level Remote. Have an excellent sound experience with more impactful bass!

Technical information



Number of Channels
01

Maximum power
Nominal Power @14.4VDC 0.5 Ohm: 8000W RMS 1 Ohm: 8000W RMS 2 Ohms: 8000W RMS 4 Ohms: 4800W RMS

Input Sensitivity
4V ~ 0.2V

Signal to Noise Ratio
>90dB

Frequency Response
8Hz ~ 200Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable

bass boost
Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB

Efficiency
78% @ 0.5 Ohm | 82% @ 1 Ohm | 86% @ 2 Ohms

Input Impedance
10K Ohms

Output Impedance
0.5 ~ 2 Ohms

protection system
Output short-circuit, low/high supply voltage and Thermal protection

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
5.0A

Maximum music consumption
356A @ 0.5 Ohm | 339A @ 1 Ohm | 323A @ 2 Ohms

Maximum consumption in sinusoidal signal
712A @ 0.5 Ohm | 678A @ 1 Ohm | 646A @ 2 Ohms

Dimensions (WxHxD)
9.37" x 2.80" x 20.16" (238 x 71 x 512mm)

Weight
16.39lb (7,45Kg)

EAN
7908706600421
