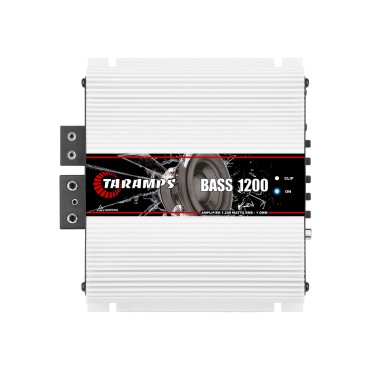

Description
The Taramps BASS 1200 amplifier was specially developed for automotive sound systems aimed at reproducing the sub-bass and bass ranges, operating in the frequency range from 8Hz to 250Hz. This device provides a maximum power of 1200 Watts on a single channel and has an impedance of 1 Ohm. Additionally, it offers adjustments such as Level, Subsonic Filter, Low Pass Filter and Bass Boost with variable center frequency, ensuring enhanced control and better performance for your subwoofers. Welcome to the exciting sound universe of Taramps, where quality and power come together to provide an incomparable sound experience!

Technical information



Operation class
D

Minimum Output Impedance
1 Ohm

Number of Channels
01

Maximum power
@14.4VDC: 1200W RMS

Input Sensitivity
230mV

Signal to Noise Ratio
>90dB

Frequency Response
8Hz a 250Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 250Hz (-12dB/8ª) Variable

bass boost
(35 to 60Hz) 0 to +12dB Parametric

Thermal Management
Smart cooler with 2 speeds

Efficiency
75%

Input Impedance
10K Ohms

protection system
Short-circuit on output, high/low supply voltage, and thermal protection

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
16VDC

Consumption at rest
0.9A

Maximum music consumption
@14.4VDC: 55A

Maximum consumption in sinusoidal signal
@14.4VDC: 110A

Dimensions (WxHxD)
7.24" x 2.12" x 6.97" (184 x 54 x 177 mm)

Weight
3.06 lb (1.39 Kg)

EAN
7898556844147






Technical information



Operation class
Class D

Number of Channels
01

Maximum power
@ 14.4 VDC - 1 OHM: 15000 W RMS @ 14.4 VDC - 2 OHMS: 8505 W RMS

Input Sensitivity
280mV

Signal to Noise Ratio
>95dB

Frequency Response
8Hz - 250Hz (-3dB)

Crossover high pass (HPF)
8Hz to 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz to 250Hz (-12dB/8ª) Variable

Bass Boost
Parametric, Freq.: 35 to 60Hz / Boost: 0 ~ +12dB

Efficiency
80%

Input Impedance
22K Ohms

Protection system
Output Short / Short on output relative to GND / High and Low Power Supply and Thermal protection

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
17 VDC

Consumption at rest
400mA

Maximum music consumption
651A

Maximum consumption in sinusoidal signal
1302A

Dimensions (H x W x D)
9.37" x 2.79" x 21.42"

Weight

21.34lb

Operation class
Class D

Number of Channels
01

Maximum power
@ 14,4 VDC - 1 OHM: 3000 W RMS @ 14,4 VDC - 2 OHMS: 1920 W RMS

Input Sensitivity
220mV

Signal to Noise Ratio
> 95dB

Frequency response
8Hz - 250Hz (-3dB)

Crossover high pass (HPF)
Variable, 8 - 30Hz (-12dB/8ª)

Crossover low pass (LPF)
Variable, 55 - 250Hz (-12dB/8ª)

Bass Boost
Parametric, 35 - 60Hz, 0 ~ +10dB

Efficiency
80%

Input Impedance
22K OHMS

Output Impedance
1 OHM

Protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
17VDC

Consumption at rest
1,10 Amp

Maximum music consumption
130 Amp

Maximum consumption in sinusoidal signal
260 Amp

Dimensions (H x W x D) mm
239 x 73 x 218mm

Weight
2,96 Kg





Line
BASS


Reference
01


Operation Class
BASS 30K


Number of Channels
Classe D


Max Output Power
@ 14,4 VDC - 1 OHM: 30000 W RMS@ 14,4 VDC - 2 OHMS: 17010 W RMS


Input Sensitivity
400mV


Signal Noise/Ratio
>90dB


Frequency Response
(-3dB) 8Hz a 250Hz


Crossover High Pass (HPF)
Variable, 8 a 30Hz (-12dB/8ª)


Crossover Low Pass (LPF)
Variable, 60 a 250Hz (-12dB/8ª)


Bass Boost
Parametric, (35 a 60Hz) 0 a +12dB


Efficiency
90%


Input Impedance
22K Ohms


Protection System
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection


Minimum Supply Voltage
9VDC


Maximum Supply Voltage
17VDC


Idle Consumption
400mA


Musical Maximum Consumption
1156A


Sinusoidal Signal Maximum Consumption
2312A


Dimensions (WxHxD)
238 x 71 x 1044 mm


Weight
19,20Kg

Description
The BASS 400 amplifier is the perfect choice for those who want superior performance in sub-bass and bass frequencies. With 400 W RMS of power and 1 Ohm or 4 Ohm options, it covers a frequency range of 8 Hz to 250 Hz, ideal for getting the most out of your subwoofers. Its RCA and WIRE audio inputs offer flexibility of use, being compatible with most players on the market, including original multimedia players, without the need for adapters.
This amplifier comes equipped with gain adjustment (0.2 to 4 V), crossover with subsonic control from 8 to 30 Hz and Low Pass from 55 to 250 Hz. In addition, the variable Bass Boost allows you to select the center frequency between 35 and 55 Hz, increasing bass by up to 12 dB for a more intense sound experience.
The aluminum construction provides durability and excellent heat dissipation. And for even more convenient control, the BASS 400 is compatible with the *Monitor Level Remote accessory, which can be easily installed on the car dashboard, ensuring convenient and instant volume adjustment.
Discover even more impactful bass with the new BASS 400 from Taramps.
*The Monitor Level Remote accessory (sold separately) features three LED indicators: On, Clip, and Protect. When used with the BASS 400 amplifier, only the On (blue) LED will be activated, as the amplifier does not have Clip and Protect indicators.

Technical information



1 Ohm VERSION
Nominal Power @14.4VDC 1 Ohm: 400W RMS

4 Ohms VERSION
Nominal Power @14.4VDC 1 Ohm: N/A 2 Ohms: N/A 4 Ohms: 400W RMS

Operation class
Class D

Minimum Output Impedance
1 Ohm / 4 Ohms

Number of Channels
01

Input Sensitivity
320mV (RCA) / 6V (WIRE)

Signal to Noise Ratio
>90dB

Frequency Response
8Hz ~ 250Hz (-3dB)

Crossover low pass (LPF)
55Hz ~ 250Hz (-12dB/8ª) Variable

bass boost
35 ~ 55Hz (0 ~ +12dB) Parametric

Efficiency
82%

Input Impedance
10K Ohms (RCA) 1K Ohms (WIRE)

protection system
Output short circuit / Thermal Protection

Minimum Supply Voltage
8VDC

Maximum Supply Voltage
16VDC

Consumption at rest
0.5A

Maximum music consumption
@ 14.4VDC: 17.5A

Maximum consumption in sinusoidal signal
35A

Dimensions (WxHxD)
5.27" x 1.57" x 5.43" (134 x 40 x 138 mm)

Weight
1.26 lb (0.57 Kg)

crossover
Subsonic Crossover: 8Hz~30Hz (-12dB/8ª) Variable

EAN
1 Ohm: 7908706601565







The Taramps BASS 400 amplifier module has been carefully developed with the highest technology, income and performance for automotive sound systems. Designed mainly for subwoofer and bass responses, that is, frequency responses in the range of 8Hz to 255Hz, it has a maximum power of 400 Watts in 1 channel of 2 ohms, with customized adjustments according to the size of the trunk and the frequency highlight of each vehicle, through the BASS BOOST and the option of choosing the central frequency, this product can offer much more, excessive displacement control, through the SUBSONIC FILTER, volume control and LOW PASS, to leave your bass on the right measure




Operation class
Class D

Number of Channels
01

Maximum power
@ 13.8 VDC - 2 Ohms: 400 Watts RMS @ 13.8 VDC - 4 Ohms: 214 Watts RMS

Input Sensitivity
320mV (RCA) - 6V (FIO) - LEVEL 100%

Signal to Noise Ratio
> 90dB

Frequency Response
8Hz ~ 255Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
55Hz ~ 250Hz (-12dB/8ª) Variable

Bass Boost
Parametric, Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +12dB

Efficiency
82%

Input Impedance
10K Ohms (RCA) / 1K Ohms (WIRE)

Output Impedance
2 Ohms

Protection system
Thermal Protection and Output Short Circuit

Min. Supply Voltage
8 VDC

Maximum Power Supply Voltage
16 VDC

Consumption at rest
0.5A

Maximum music consumption
@13.8 VDC - 17.5A

Maximum consumption in sinusoidal signal
35A

Dimensions (H x W x D)
5.28" x 1.57" x 5.43"

Weight
1.25lb










Technical information



Operation class
Class D

Number of Channels
01

Maximum power
@ 14.4 VDC - 1 Ohm: 5000 Watts RMS @ 14.4 VDC - 2 Ohms: 3200 Watts RMS

Input Sensitivity
220mV

Signal to Noise Ratio
>95dB

Frequency Response
8Hz ~ 250Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 250Hz (-12dB/8ª) Variable

Bass Boost
freq.: 35Hz ~ 60Hz / Boost: 0 ~ +10dB

Efficiency
83%

Input Impedance
15K Ohms

Output Impedance
1 Ohm

Protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection

Min. Supply Voltage
9 VDC

Maximum Power Supply Voltage
17 VDC

Consumption at rest
1.20A

Maximum music consumption
209A

Maximum consumption in sinusoidal signal
418A

Dimensions (H x W x D)
9.41" x 2.87" x 12.87"

Weight
11lb

EAN
7898556844765

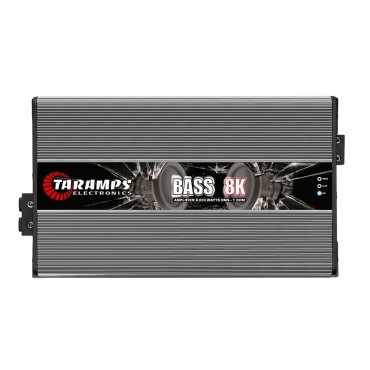

The BASS 8k amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems focused on subwoofer and bass response. Its maximum power is 8.000W using 1 channel of 1 OHM, and frequency responses from 8Hz to 250Hz, with customized adjustments according to the size of the trunk, and the frequency of each vehicle. Through the BASS BOOST and the option of choosing the center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to hear your bass in the right measure.


Operation class
Class D

Number of Channels
01

Maximum power
@ 14,4 VDC - 1 OHM: 8000W RMS @ 14,4 VDC - 2 OHMS: 5120W RMS

Input Sensitivity
220mV

Signal to Noise Ratio
>95dB

Frequency response
8Hz ~ 250Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 250Hz (-12dB/8ª) Variable

Bass Boost
35Hz ~ 60Hz (0 ~10dB)

Efficiency
87%

Input Impedance
22K Ohms

Output Impedance
1 Ohm

Protection system
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
17VDC

Consumption at rest
1.80A

Maximum music consumption
319A

Maximum consumption in sinusoidal signal
638A

Dimensions (H x W x D) mm
9.41" x 2.87" x 16.50"

Weight
14.60lb

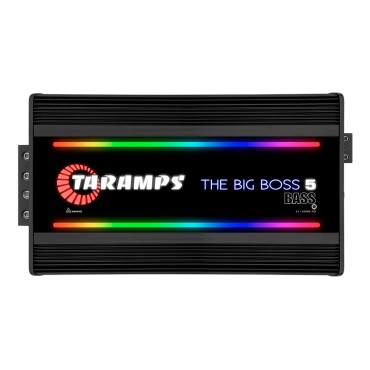

Description
THE BIG BOSS 5 BASS is much more than an amplifier; it brings together the best technology available in terms of audio and design. With 108 RGB LED effects, it elevates your sound to an incomparable level and transforms your car into an audiovisual spectacle. The high technology in its construction and automatic multi-impedance system (0.5 to 2 Ohms) makes it an extremely versatile powerhouse. Furthermore, it is a robust and resistant product, designed for exceptional performance when used with subwoofers. Has a wide range of colors and light patterns that sync perfectly to the beat of your music. The Big Boss 5 Bass is an ideal choice for those looking for power, flexibility and style in their sound system.

Technical information



Number of Channels
01

Maximum power
Nominal Power @14.4VDC 0,5 Ohm: 5000W RMS 1 Ohm: 5000W RMS 2 Ohms: 5000W RMS 4 Ohms: 2700W RMS

Input Sensitivity
4V ~ 0.2V

Signal to Noise Ratio
>90dB

Frequency Response
8Hz ~ 200Hz (-3dB)

Crossover high pass (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable

Crossover low pass (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable

bass boost
Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB

Efficiency
76% @ 0.5 Ohm | 80% @ 1 Ohm | 84% @ 2 Ohms

Input Impedance
10K Ohms

Output Impedance
0.5 ~ 2 Ohms

protection system
Output short-circuit, Low/High supply voltage and Thermal protection

Minimum Supply Voltage
9VDC

Maximum Supply Voltage
17VDC

Consumption at rest
2.60A

Maximum music consumption
@14.4VDC 230A @ 0.5 Ohm | 215.5A @ 1 Ohm | 210A @ 2 Ohms

Maximum consumption in sinusoidal signal
461A @ 0.5 Ohm | 431A @ 1 Ohm | 420A @ 2 Ohms

Dimensions (WxHxD)
9.37" x 2.80" x 16.81" (238 x 71 x 427 mm)

Weight
12,76 lb (5,80 Kg)

EAN
7908706600827







Description
Enhance of your car audio with the Taramps CRX-4 active crossover. Its 4 independent channels allow practical and precise adjustment of the crossover points of multiple amplifiers. These channels are divided into LOW, LOW MID, HIGH MID, and HIGH, and have individual level adjustments, so that each of your speakers can be adjusted to their ideal frequency range, ensuring better performance and sound quality. To highlight the bass even more, we included the Bass-Boost function with a variable center frequency from 20 to 65Hz and a fixed gain of 6 dB, providing superior performance for subwoofers. With a supply voltage range of 10 to 15.5 VDC and a maximum output level of 8 VRMS, the CRX-4 delivers the versatility, quality, and performance you’re looking for.

Technical information



Number of Channels
04

Output impedance
27K ohms

Maximum input level
8V RMS

Maximum output level
8V RMS

Total Harmonic Distortion
<0,01% ~1KHz

Crosstalk (separation between channels)
>80dB

protection system
Reverse polarity

Via Low
Via Low / Low way (Mono) Cutting frequency / Variable (LPF): 40Hz ~ 275Hz (-12dB/8ª)

bass boost
Frequency Central Variable: 20 ~ 65Hz (6dB / Fixed gain)

Via Low Mid
Via Low Mid / Low Mid way (Mono) Minimum frequency of (cut HPF) / Variable: 25Hz ~ 140Hz (-12dB/8ª) Maximum frequency of (cut LPF) / Variable: .300Hz ~ 7.5KHz (-12dB/8ª)

Via High Mid
Via High Mid / High Mid way (Stereo) Minimum frequency of (cut HPF) / Variable: 200Hz ~ 5KHz (-12dB/8ª) Maximum frequency of (cut LPF) / Variable: .1.2KHz ~ 12KHz (-12dB/8ª)

Via High
Via High / High way (Stereo) Cutting frequency / Variable: .550Hz ~ 13.7KHz (-12dB/8ª)

POWER SUPPLY VOLTAGE (POWER)
10 ~ 15.5VDC

Dimensions (W x H x D)
181x 40 x 145mm / 7.13” x 1.57” x 5.71”

Weight
0,550Kg / 1.21lb

EAN
7898556840118







Frequency of Operation: 15 Bands separated by 2/3 octave (25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz,  1kHz, 1.6kHz, 2.5KHz, 4 KHz, 6.3KHz, 10KHz, 16KHz) Mitigation / Enhancement : up to 12dB in steps of 0.5dB Signal / Noise Ratio:> 100dB Crosstalk (channel separation):> 85dB THD: <0.01% Frequency Response: 15Hz to 23kHz (-3dB) Maximum Signal Level Input: 2 , 0W RMS Maximum Signal Level Output: 2.0 V RMS Input Impedance: 22K ohms Output Impedance: 330 ohms Operating Voltage: 8V to 16V DC Maximum Consumption: 400mA Dimensions (WxHxD): 193 x 43 x 120mm Weight: 0.31 Kg Additional Features: Limiter with 6 levels of action: (-3dB /-6dB /-9dB /-12dB /-15dB /-18dB) HPF filter (Subsonic): (Fc = 30Hz / 40Hz / 50Hz / 60Hz / 70Hz / 80Hz) with attenuation of  24dB / 8 th LPF Filter: (Fc = 500Hz / 1kHz / 1.5kHz / 2KHz / 2.5KHz) with attenuation of 12dB / 8 th Screen Saver with VU Bargraph VU leds with CLIP indicator

Operation class
(PT) Classe D

Number of Channels
(PT) 04

Maximum power
(PT) @ 12,6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS) @ 12,6 VDC - 4 OHMS: 768W RMS (4 x 192W RMS)

Input Sensitivity
(PT) 250mV

Signal to Noise Ratio
(PT) >80dB

Frequency response
(PT) 9Hz ~ 27KHz(-3dB)

Crossover high pass (HPF)
(PT) 90Hz (-12dB/8ª) Fixo

Crossover low pass (LPF)
(PT) 90Hz (-12dB/8ª) Fixo

Input Impedance
(PT) 18K OHMS

Output Impedance
(PT) 2 OHMS

Protection system
(PT) Sobrecarga na Saída

Min. Supply Voltage
(PT) 9VDC

Maximum Power Supply Voltage
(PT) 16VDC

Consumption at rest
(PT) 1,8A

Maximum music consumption
(PT) @12,6VDC 67,5A

Maximum consumption in sinusoidal signal
(PT) 135A

Dimensions (H x W x D) mm
(PT) 182 x 52 x 281mm

Weight
(PT) 2,1Kg





Operation class
(PT) Classe D

Number of Channels
(PT) 04

Maximum power
(PT)@ 12.6 VDC - 2 OHMS: 440W RMS (4 x 110W RMS) @ 12.6 VDC - 4 OHMS: 276W RMS (4 x 69W RMS) 2 Bridgeable Channels: @12.6 VDC - 4 OHMS: 440W RMS (2 x 220W RMS)

Input Sensitivity
(PT) 250mV

Signal to Noise Ratio
(PT) >89dB

Frequency response
(PT) 8Hz ~ 26KHz(-3dB)

Crossover high pass (HPF)
(PT) 90Hz(-12dB/8ª) Fixo

Crossover low pass (LPF)
(PT) 90Hz (-12dB/8ª) Fixo

Input Impedance
(PT) 18K OHMS

Protection system
(PT) Curto na Saída

Min. Supply Voltage
(PT) 8VDC

Maximum Power Supply Voltage
(PT) 16VDC

Consumption at rest
(PT) 0,8A

Maximum music consumption
(PT) @12,6VDC 23,5A

Maximum consumption in sinusoidal signal
(PT) 47A

Dimensions (H x W x D) mm
(PT) 160 x 44 x 145mm

Weight
(PT) 0,6000Kg





Description
The DS800X2 was designed for anyone who likes to enjoy all frequency ranges with high definition and technology for car audio systems. It is stereo, with a maximum power of 800 Watts RMS and an impedance of 2 ohms. It has 2 channels of 400 Watts RMS each, or 1 channel connected in BRIDGE with 800 Watts at 4 ohms. The DS 800X2 is FULL RANGE and will certainly play all frequencies the way you like it most.

Technical information



Operation class
Class D

Number of Channels
02

Maximum power
@ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridgeable CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)

Input Sensitivity
250mV

Signal to Noise Ratio
>96dB

Frequency Response
10Hz to 22KHz (-3dB)

Crossover high pass (HPF)
80Hz to 2.2KHz (-6dB/8a) Variable

Crossover low pass (LPF)
80Hz (-12dB/8ª) Fixed

Efficiency
83%

Input Impedance
18K Ohms

Output Impedance
2 Ohms

protection system
output overload

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
@12.6 VDC: 0.85A

Maximum music consumption
@12.6 VDC: 38A

Maximum consumption in sinusoidal signal
77A

Dimensions (WxHxD)
7.24" x 2.13" x 7.48" (173 x 52 x 227mm)

Weight
3.04lb (1,43kg)

EAN
7898556844048






Technical information







Operation class
Class D

Number of Channels
02

Maximum power
@ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridgeable CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)

Input Sensitivity
250mV

Signal to Noise Ratio
>96dB

Frequency Response
10Hz to 22KHz (-3dB)

Crossover high pass (HPF)
80Hz to 2.2KHz (-6dB/8a) Variable

Crossover low pass (LPF)
80Hz (-12dB/8ª) Fixed

Efficiency
83%

Input Impedance
18K Ohms

Output Impedance
2 Ohms

protection system
output overload

Min. Supply Voltage
9VDC

Maximum Power Supply Voltage
16VDC

Consumption at rest
@12.6 VDC: 0.85A

Maximum music consumption
@12.6 VDC: 38A

Maximum consumption in sinusoidal signal
77A

Dimensions (WxHxD)
7.24" x 2.13" x 7.48" (173 x 52 x 227mm)

Weight
3.04lb (1,43kg)

EAN
7898556844048



































































Operation class
(PT) Classe D

Number of Channels
(PT) 02

Maximum power

(PT) @ 12,6 VDC - 2 OHMS: 800W RMS (2 x 400W RMS) @ 12,6 VDC - 4 OHMS: 500W RMS (2 x 250W RMS) @ 12,6 VDC - 8 OHMS: 240W RMS (2 x 120W
1 Bridged CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)


Input Sensitivity
(PT) 250mV

Signal to Noise Ratio
(PT) >96dB

Frequency response
(PT) 10Hz a 22KHz(-3dB)

Crossover high pass (HPF)
(PT) 80Hz a 2,2KHz (-6dB/8ª) Variável

Crossover low pass (LPF)
(PT) 80Hz(-12dB/8ª) Fixo

Efficiency
(PT) 83%

Input Impedance
(PT) 18K OHMS

Output Impedance
(PT) 2 OHMS

Protection system
(PT) Curto na Saída / Tensão de Alimentação Baixa

Min. Supply Voltage
(PT) 9VDC

Maximum Power Supply Voltage
(PT) 16VDC

Consumption at rest
(PT) 0,85A

Maximum music consumption
(PT) @12,6VDC 38A

Maximum consumption in sinusoidal signal
(PT) @12,6VDC 77A

Dimensions (H x W x D) mm
(PT) 184 x 54 x 190mm

Weight
(PT) 1,38Kg





Operation class
(PT) D

Number of Channels
(PT) 3

Maximum power
(PT) @ 12,6 VDC: 800W RMS CH1/CH2 (2 x 200W RMS) 1OHM, CH3 (1 x 400W RMS) 2OHMS

Input Sensitivity
(PT) 250mV

Signal to Noise Ratio
(PT) >88dB

Frequency response
(PT) CH1/CH2 100Hz ~ 25KHz 10Hz ~ 100Hz (LPF = 100Hz) CH3 10Hz ~ 700Hz (LPF = 700Hz) 10Hz ~ 25KHz (LPF = OFF)

Crossover high pass (HPF)
(PT) (CH1 / CH2) 100Hz (-12dB/8ª) Fixo

Crossover low pass (LPF)
(PT) (CH3) 100Hz, 700Hz, OFF (-12dB/8ª) Selecionável

Input Impedance
(PT) 10K OHMS (RCA) e 1K OHMS (FIO)

Protection system
(PT) Sobrecarga na saída

Min. Supply Voltage
(PT) 9 VDC

Maximum Power Supply Voltage
(PT) 16 VDC

Consumption at rest
(PT) 1,0A

Maximum music consumption
(PT) 51A

Maximum consumption in sinusoidal signal
(PT) 102A

Dimensions (H x W x D) mm
(PT) 173 x 52 x 227mm

Weight
(PT) 1,43Kg
