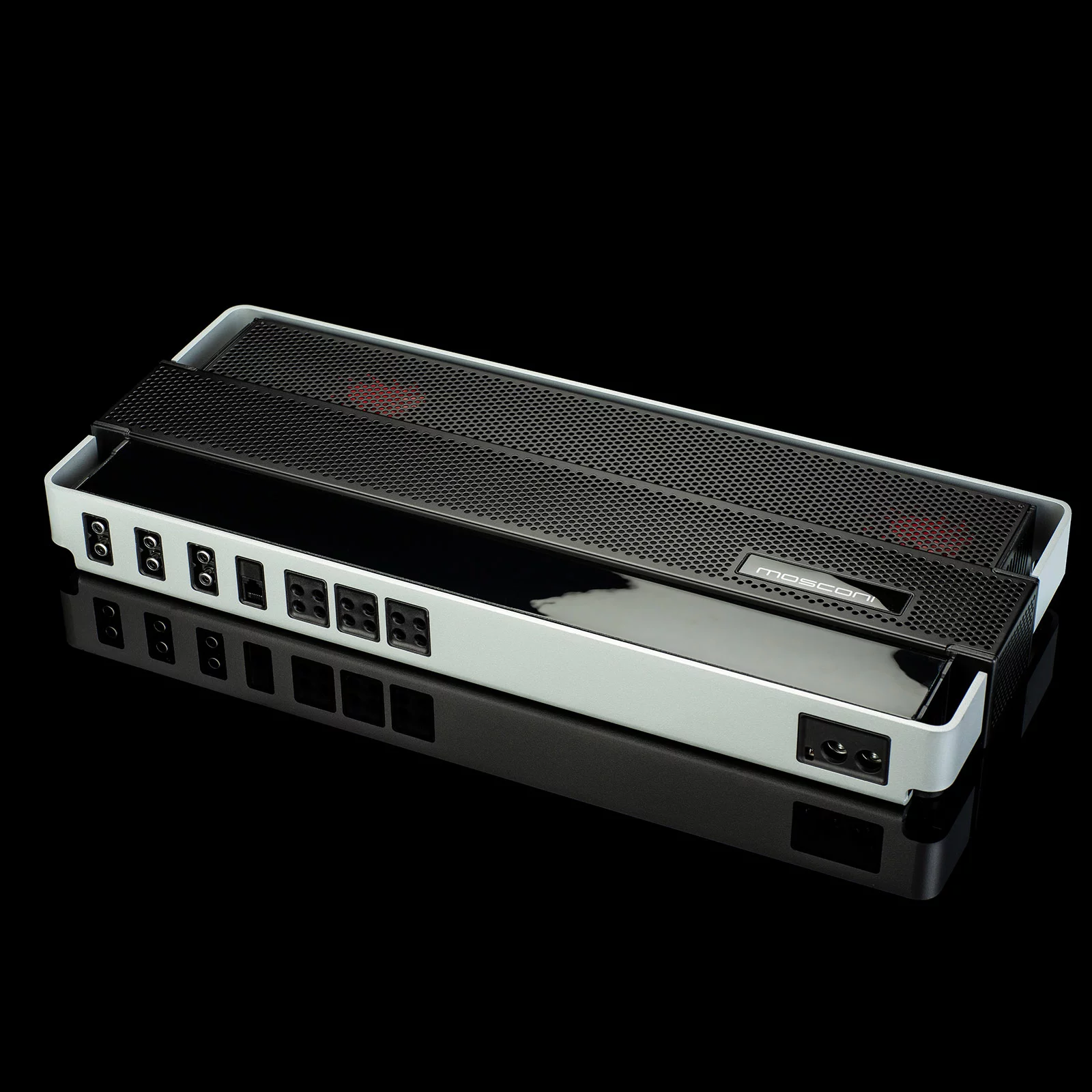

The  MOSCONI PRO 5|30  already signals the high-end claim with its design: With rounded aluminum edges and contrasting black perforated sheet insert with illuminated logo, the amplifier looks very noble. The eye finds numerous steps and recesses on which the gaze lingers without the whole thing looking jagged. The Mosconi Pro 5|30 is a hybrid amplifier in a class of its own. With it, extensive system configurations can be realized. With its asymmetrical power distribution, it is, in conjunction with a digital sound processor, perfectly created for active operation. OUTPUT POWER: Output power @ 4Ω: 2 x 95 + 2 x 185 + 1 x 660 Watts Output power @ 2Ω: 2 x 150 + 2 x 290 + 1 x 1030 Watts SPECIFICATIONS: Input sensitivity: 0.35 V ÷ 12 V (5.3 V in DDSP mode) 0.14 V ÷ 5.9 V (3.1 V in DDSP mode) Dimensions: 500 x 205 x 55 mm Weight: 5,4 kg Crossover: CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10) CH 3/4 = HP: 50 ÷ 200 Hz & LP: 430 ÷ 5000 Hz CH 5 = LP: 43 ÷ 200 Hz Signal to Noise Ratio: > 83 dBA (ref: 1 Watt into 4 Ohm)

MOSCONI BTM For setting the 8to12 via PC via BT or for Android apps The main functions can be controlled via an Android smartphone Optionally available from your dealer (not for iPhone due to missing BT standard) BT Adapter Compatible with all Mosconi DSP products For adjusting by PC and android smartphone apps

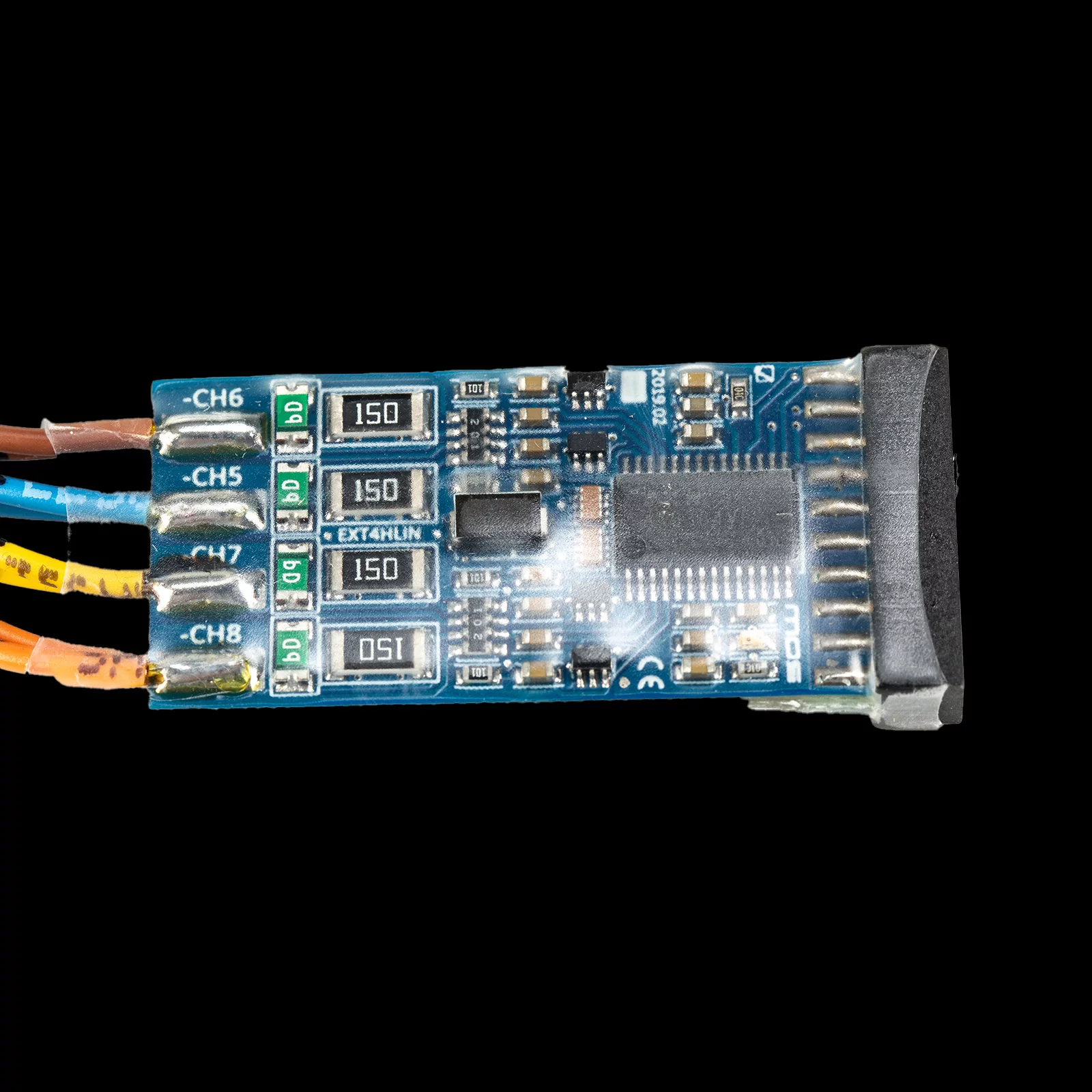

MOSCONI PICO MODULE | MOS-EXT4HLIN Extension card for PICO 8|12 DSP Four additional inputs high level / analog with load resistor Connection card 1 (ext.) to open ends Extension board 4x Highlevel-in for PICO 8/12 DSP

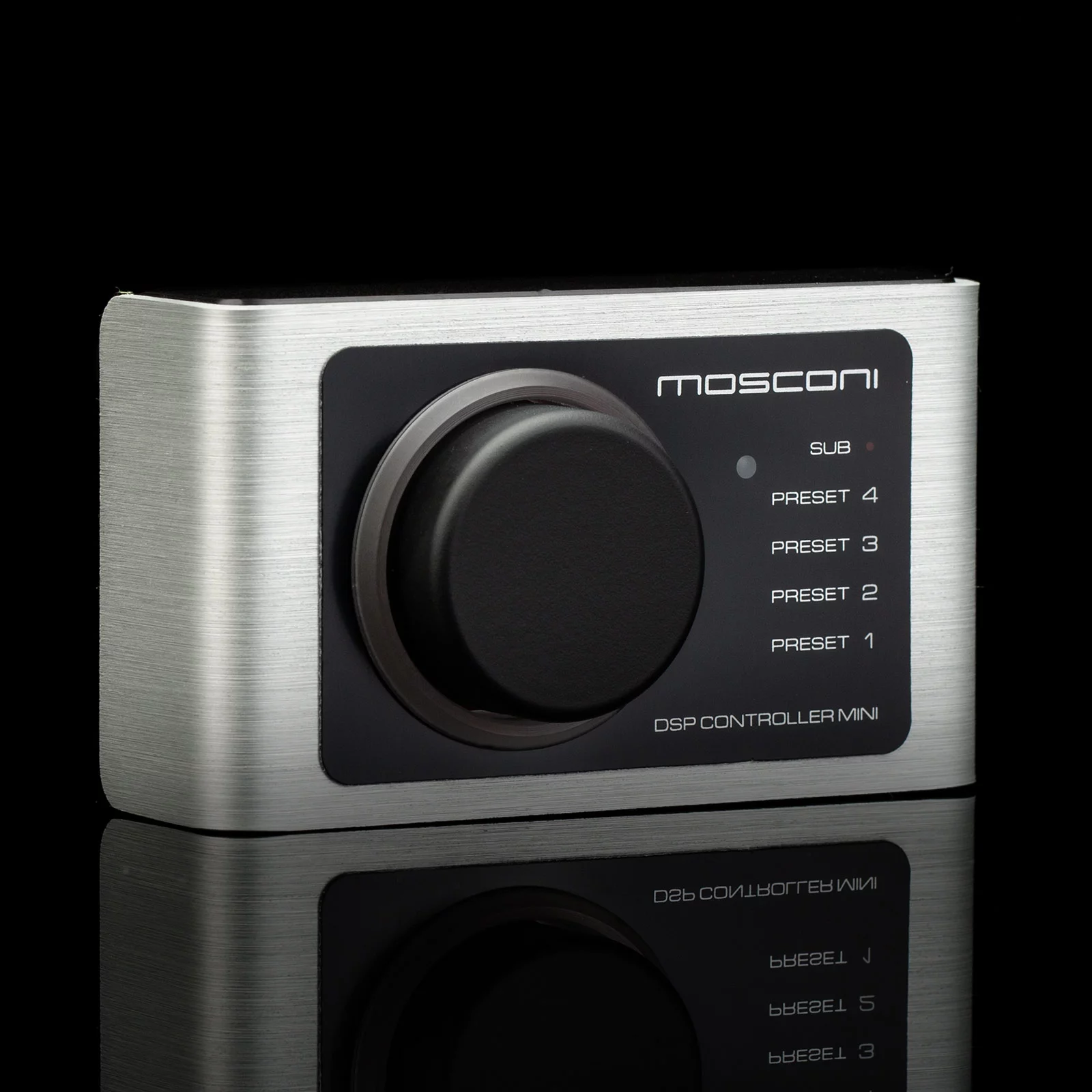

 MOSCONI RC MINI Control and regulate your Mosconi DSP processor or DSP amplifier. With the RC Mini you can easily adjust the overall volume or the subwoofer level. Furthermore, the RC Mini allows you to switch between the presets stored in the processor. The small DSP Mini controller simplifies the integration into the vehicle Master Vol, SUB Vol (assignment selectable whether main or sub Vol has priority!), preset 1 - 4, mute, IR sensor for 11 teachable functions The values are indicated by LEDs. Dimensions: 77 x 45 x 24 / 35 mm Mini Controller for DSP 6to8, DSP 4to6, D2 DSP Master Vol, SUB Vol, Preset, Mute selectable

MOSCONI RCD Setting of the main functions like level, sub-level and the presets 153 mm length, 43 mm width, 23 mm height (with knob 30 mm) Slim Remote Control Display for DSP 6to8 External control display for presets and main controls

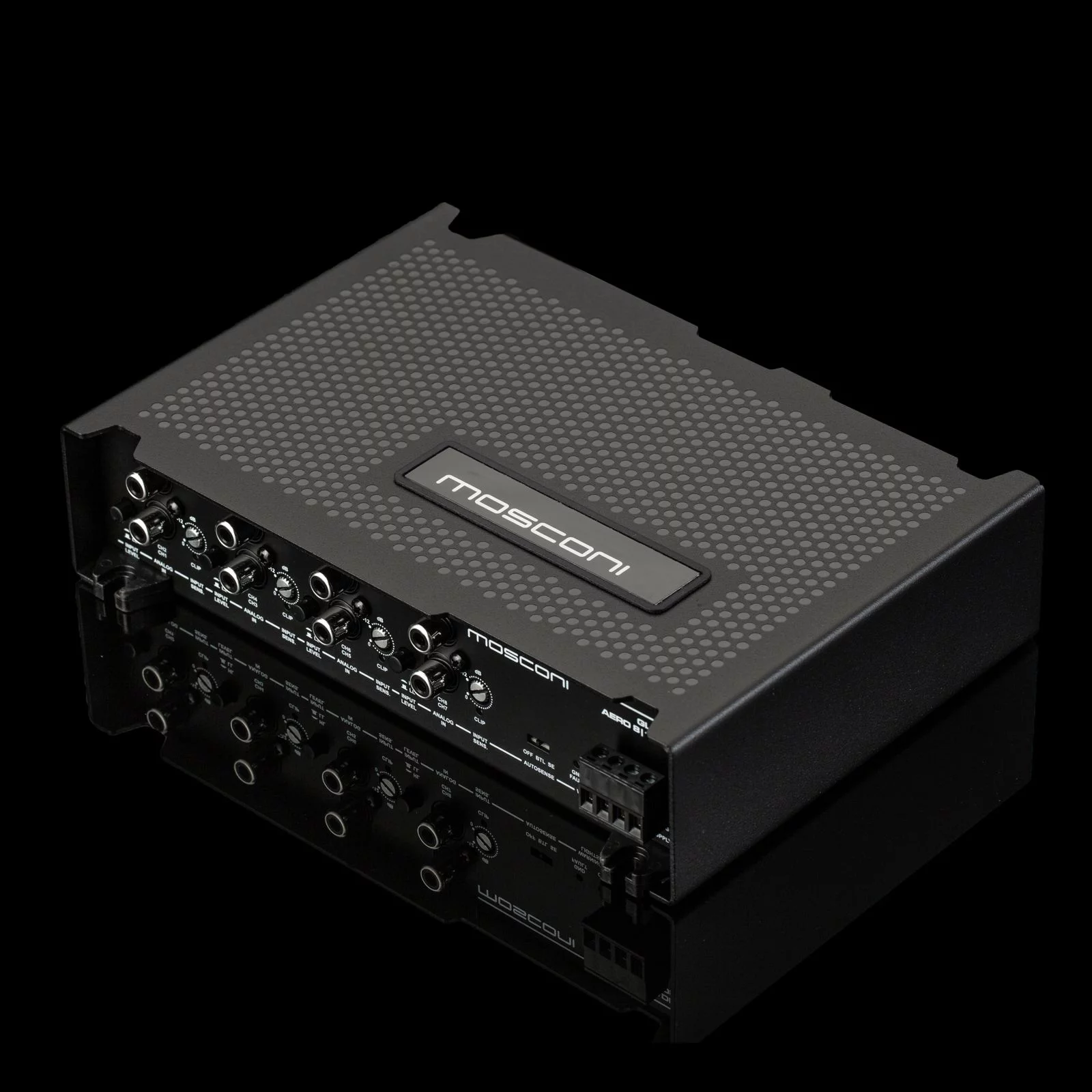

The new generation of the MOSCONI DSP flagship. Only rarely one is faced with the task of making "the best" even better. This is also the case with the DSP 8to12 AEROSPACE by MOSCONI, which has always been among the best DSPs on the market for many years and is still "state of the art" in the high end segment. Here our developers succeeded in raising crucial areas and the sound performance to a new level with targeted interventions. The new AERO 8|12 DSP is now equipped with a BT Plus port and thus also compatible with our latest innovation, the BARNIE - calibration system. In addition, it now has a universal interface for up to 16 channels. An "active over-ALL bias" stabilization is responsible for the further increased sound performance, which minimizes distortions occurring in the entire dynamic range.The channel separation, whether in mixed operation (high level / low level) or when summing the inputs, has also been optimized again (Smart Dual ADC). For best connectivity and installability, the AERO 8|12 DSP now has a USB-C port and a new housing that meets modern installations through its design. TECHNICAL DATA MOSCONI AERO 8|12 DSP INPUTS: 8 x RCA (Cinch), switchable high / low level with autosense 4 of them freely selectable as prioritized Auto-fade/Aux 1 x S/PDIF digital optical 1 x RCA digital COAX 1 x BT slot ATOM Mixer menu with dynamic preset switching and "trigger" control OUTPUTS: 12 x RCA analog 1 x S/PDIF optical (freely assignable, volume controlled) 12 V remote-out EQUALIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: channels front (1 - 6) channels rear (9 + 10) Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free FILTERS: 10 per channel freely configurable, (setting without sound interruption) Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/Oct, variable Q, time and level OTHER: Compatible with BARNIE measurement system Time correction 0 - 12 ms (0.005 ms steps) (setting without sound interruption) Input-Delay (Channels 1 - 6) for the correction of runtime-delayed plant systems Phase inversion 0 - 180° Level adjustment outputs (0.5-dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 200 x 125 x 40 mm (incl. mounting flange)

BT v5.0 specification Supports A2DP 1.3 High resolution audio up to 24-bit, 96 kHz S/P-DIF digital output, Toslink Analog output RCA 2 Vrms Digital and analog output can be used simultaneously High-performance, 112 dB SNR, audio stereo DAC Intelligent muting system, 120-dB mute SNR Start & stop optimized up to 8 V Low power consumption Separate remote input and output USB connector for use outside a car (5 V) Compatible with all Mosconi DSP products

ATOMO 2 - Maximum performance in the smallest of spaces Extremely compact, powerful 2-channel amplifier Wide input voltage range 0.4 Vrms - 5 Vrms (low level) / 1.6 Vrms - 20 Vrms (high level) Inputs flexibly configurable (floating / fixed ground, switchable load resistors) Remote detection (BTL) High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit) Class D amplifier 2 x 100 Watts Rms @ 4 Ohm 2 x 100 Watts Rms @ 2 Ohm 12 Volt

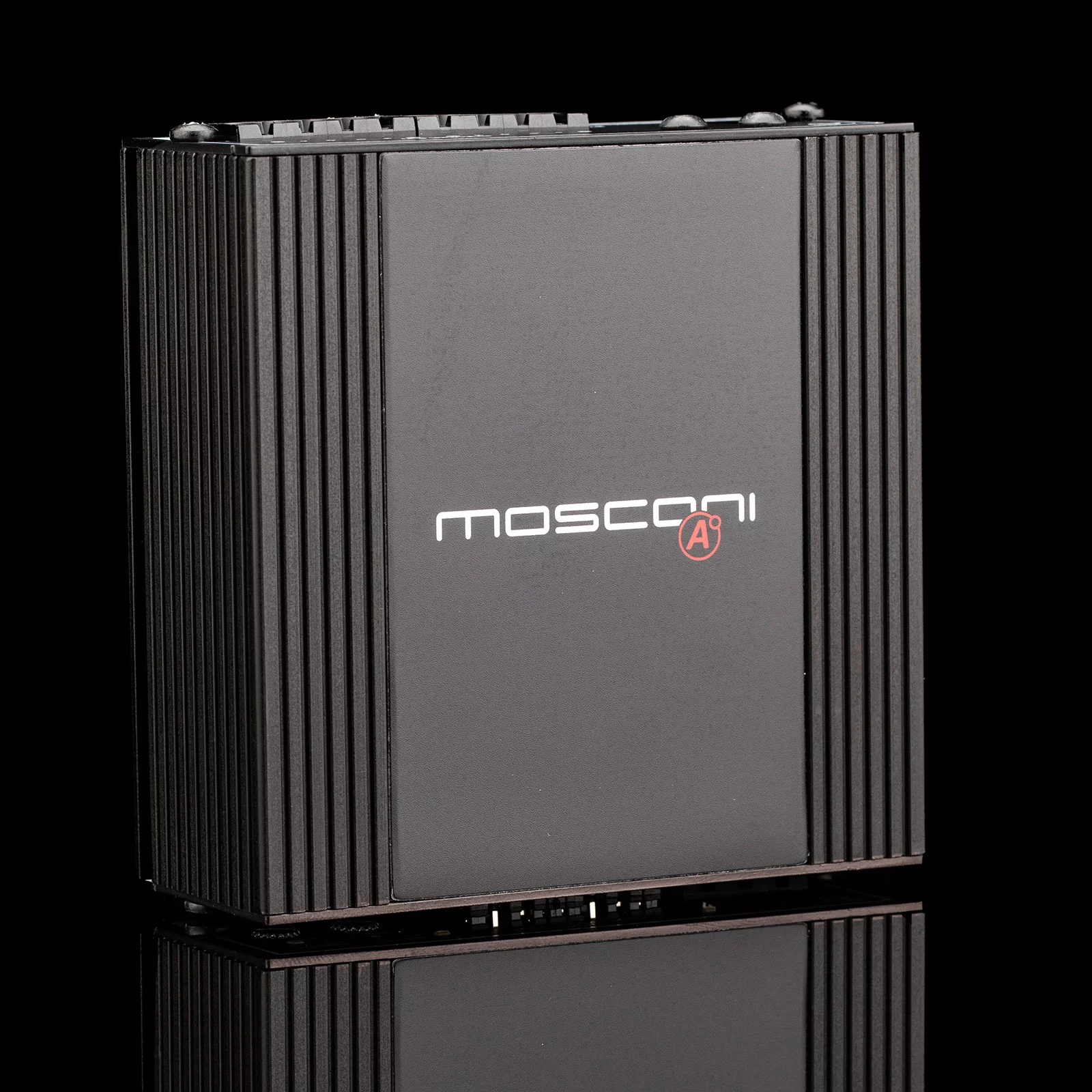

ATOMO 4 - Maximum performance in the smallest of spaces Extremely compact, powerful 4-channel amplifier Wide input voltage range 0.4 Vrms - 5 Vrms (low level) / 1.6 Vrms - 20 Vrms (high level) Inputs flexibly configurable (floating / fixed ground, switchable load resistors) Remote detection (BTL) High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit) TECHNICAL DATA MOSCONI ATOMO 4 POWER SUPPLY: Power supply voltage: 10 - 16 V DC-DC converter typology: Unregulated – Push Pull External fuse: 1 x 20 A Power-on / Power-off voltage threshold: 9 V / 6 V Mute delay time: 3 secs Autosense power-on (HL only): BTL source only Overall efficiency: > 75 %25 Standby current: Idle current: 0.58 A @ 14.4 V Thermal cutoff threshold: 93 °C (± 5 %25) OUTPUT POWER RMS @ 14.4 V (1 %25 THD) Output power RMS @ 4 Ω: 60 W x 4 or 150 W x 2 Output power RMS @ 2 Ω: 75 W x 4 T.H.D. @ 4 Ohm: T.H.D. @ 2 Ohm: Minimum load: 2 Ohm with musical signal

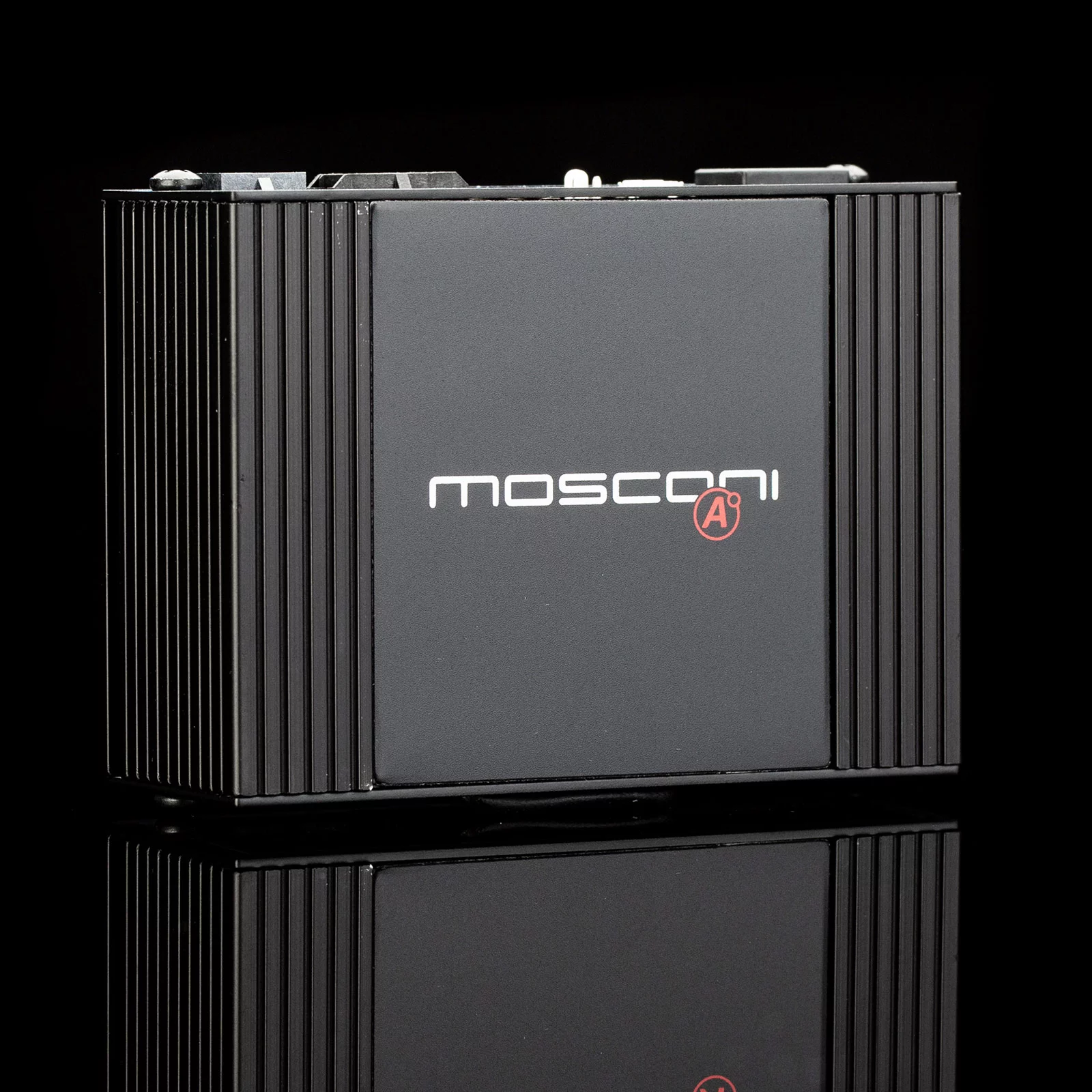

OVERVIEW MOSCONI ATOMO 4|6 DSP ATOMO 4|6 DSP "Matrix" - Maximum performance in the smallest possible space Extremely powerful DSP in a compact design. Four analog (high/low level) and three digital inputs (SP-Dif, Bluetooth streaming with MOS-BTS, BT+ with direct DSP access). Expandable to 8 analog inputs with MOS EXT4HLin. Compatible with 12 V and 24 V on-board power supply. Six analog outputs. 64 bit platform with dISC functions (dynamic equalizer and phase control). All connectors Molex industry standard. Direct RTC connection for volume, sublevel or input volume. TECHNICAL DATA MOSCONI ATOMO 4|6 DSP SPECIFICATIONS: Operating Voltage: 8 V – 32 V Operating Voltage via USB: 5 V Input voltage: 2 Vrms (low-level) / 12 Vrms (high-level) Dimensions: 86 x 65 x 34 mm Weight: 180 gramm 4-channel input 6-channel output Operating voltage 5 Volt / 8 - 32 Volt

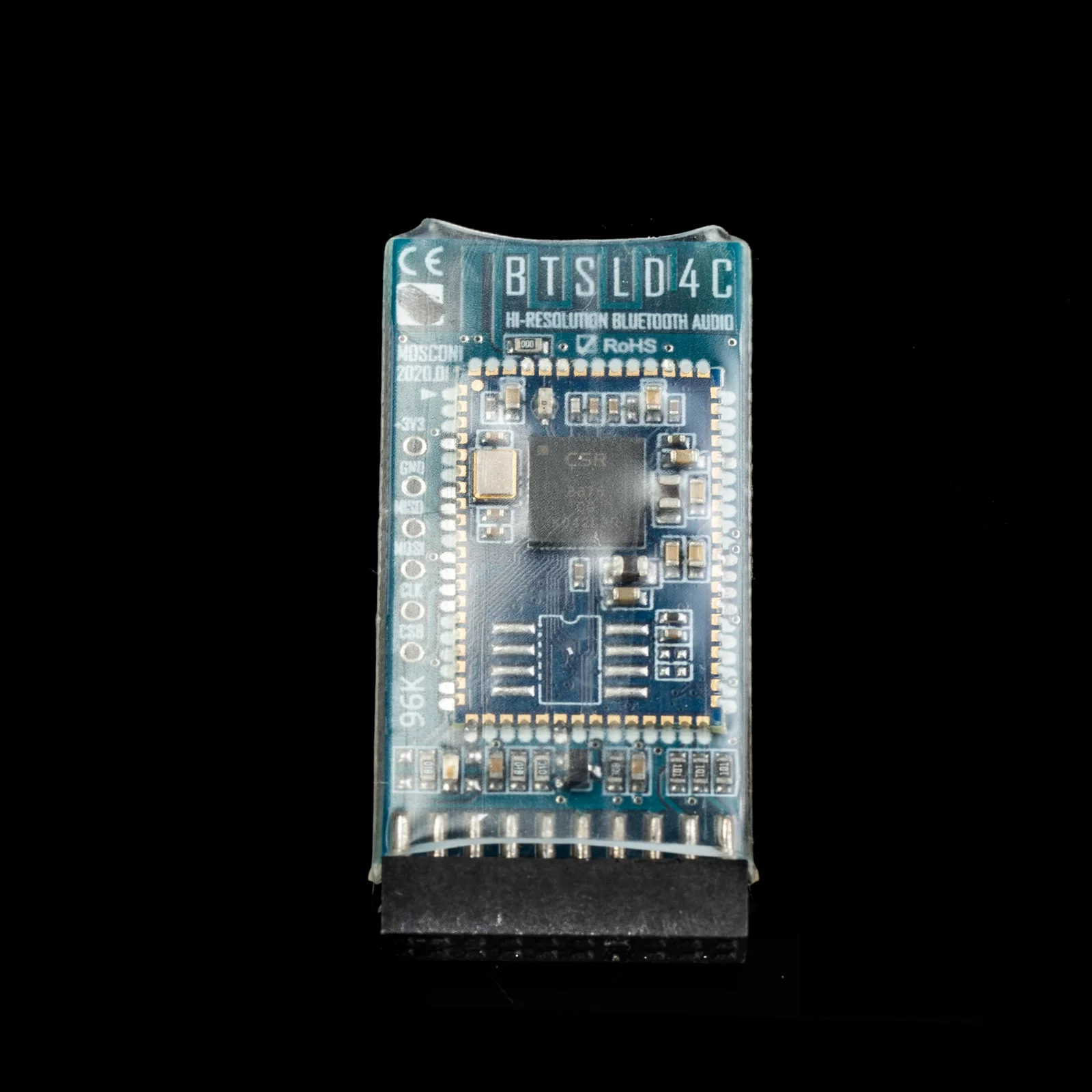

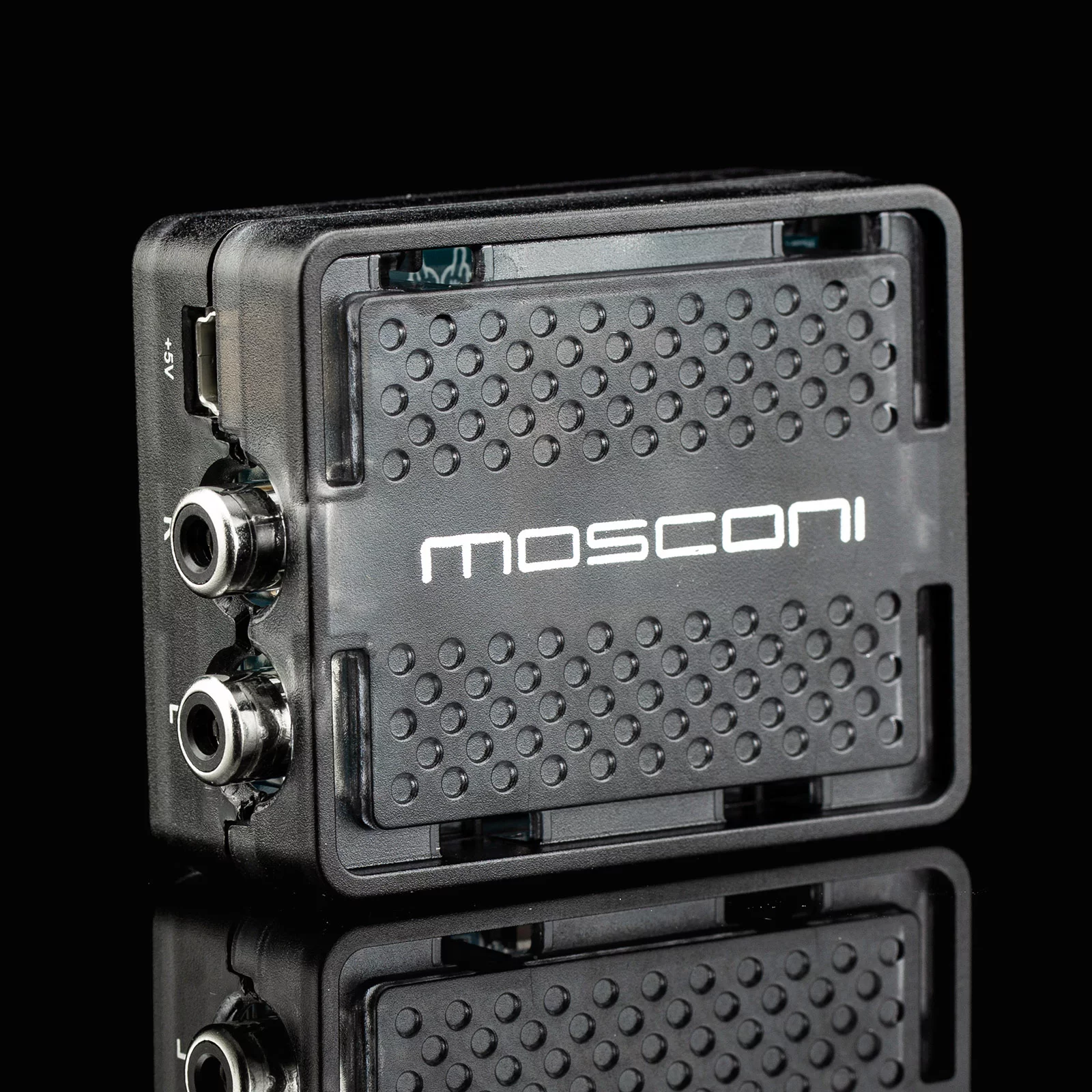

MOSCONI BTS - LD4C BT audio streaming also uncompressed files like Apt-X, Wave, Flac (Apple) but also Lossless, Mp3, A2DP. A2DP in highest EDR spec from any source like pads/tabs/phones with iOS, Android or Windows. Best possible signal path directly into the digital DSP section of the power amp, pure high-end! MOSCONI GLADEN BT Audio Streaming Modul !LD4C!

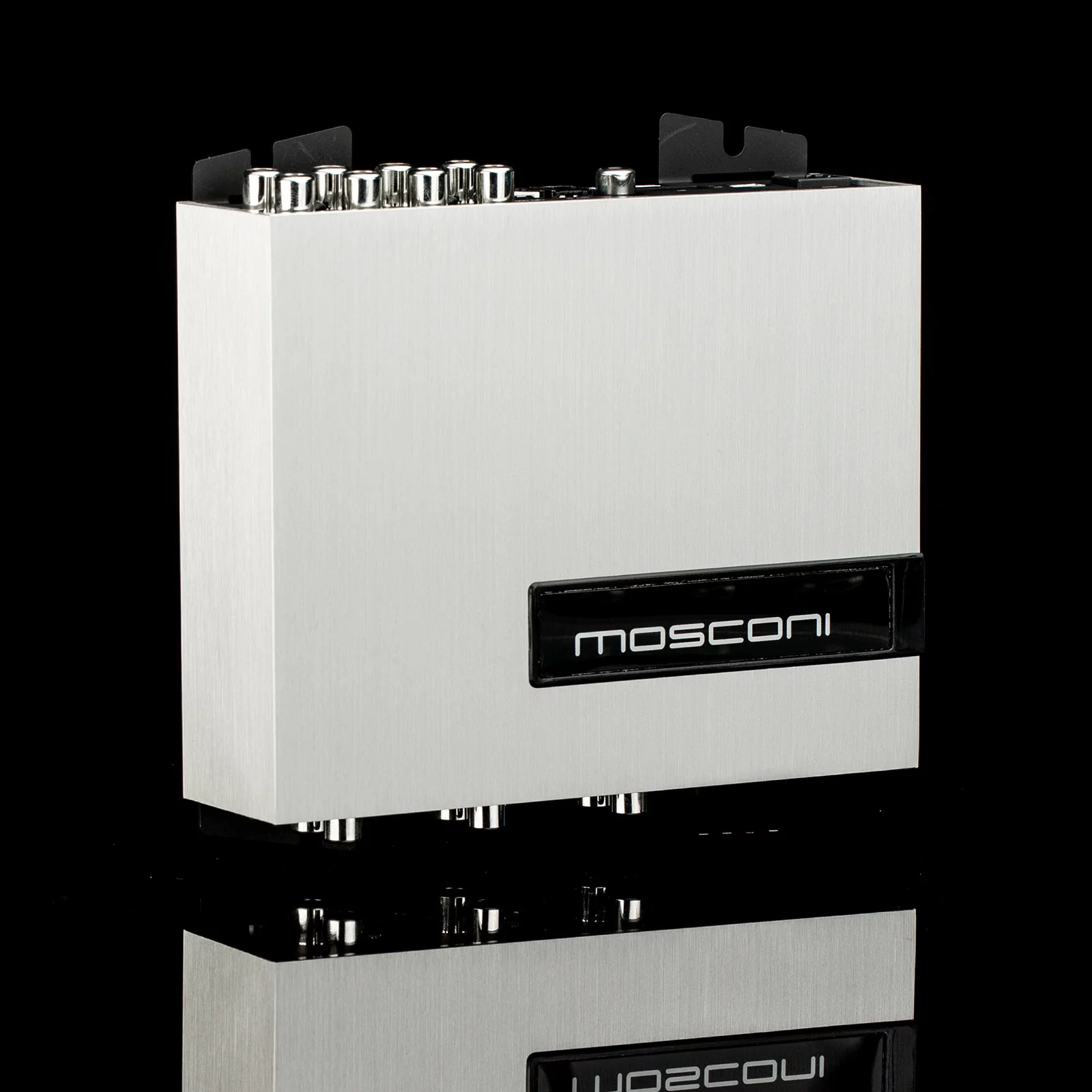

MOSCONI DSP 6TO8 AEROSPACE 6-channel input 8-channel output 96 kHz / 24 Bit  High Resolution-Audio With the incredibly powerful chip, the GLADEN DSP 6to8 AEROSPACE is faster than ever. We have developed the best DSP since MOSCONI exists. Without limit in signal processing...96kHz /24 bit "A GAME CHANGER". TECHNICAL DATA MOSCONI DSP 6TO8 AEROSPACE INPUTS: 6 x RCA (Cinch), switchable high/ low level with autosense 1 x S/PDIF digital optical 1 x RCA digital COAX 4 of them freely selectable as prioritized auto-fade/aux ATOM Mixer menu with dynamic preset switching and "trigger" control OUTPUTS: 8 x RCA analog 1 x S/PDIF optical (freely assignable, volume controlled) 12 V remote-out EQUALIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: channels front (1 - 4) Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free FILTERS: 10 per channel freely configurable Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/Oct, variable Q, time and level OTHERS: Time correction 0 - 12 ms (0.010 ms steps) Input delay (channels 1 - 6) for correction of run-time delayed plant systems Phase shift 0 - 180° Level adjustment outputs (0.5 - dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 150 x 125 x 40 mm (incl. mounting flange)

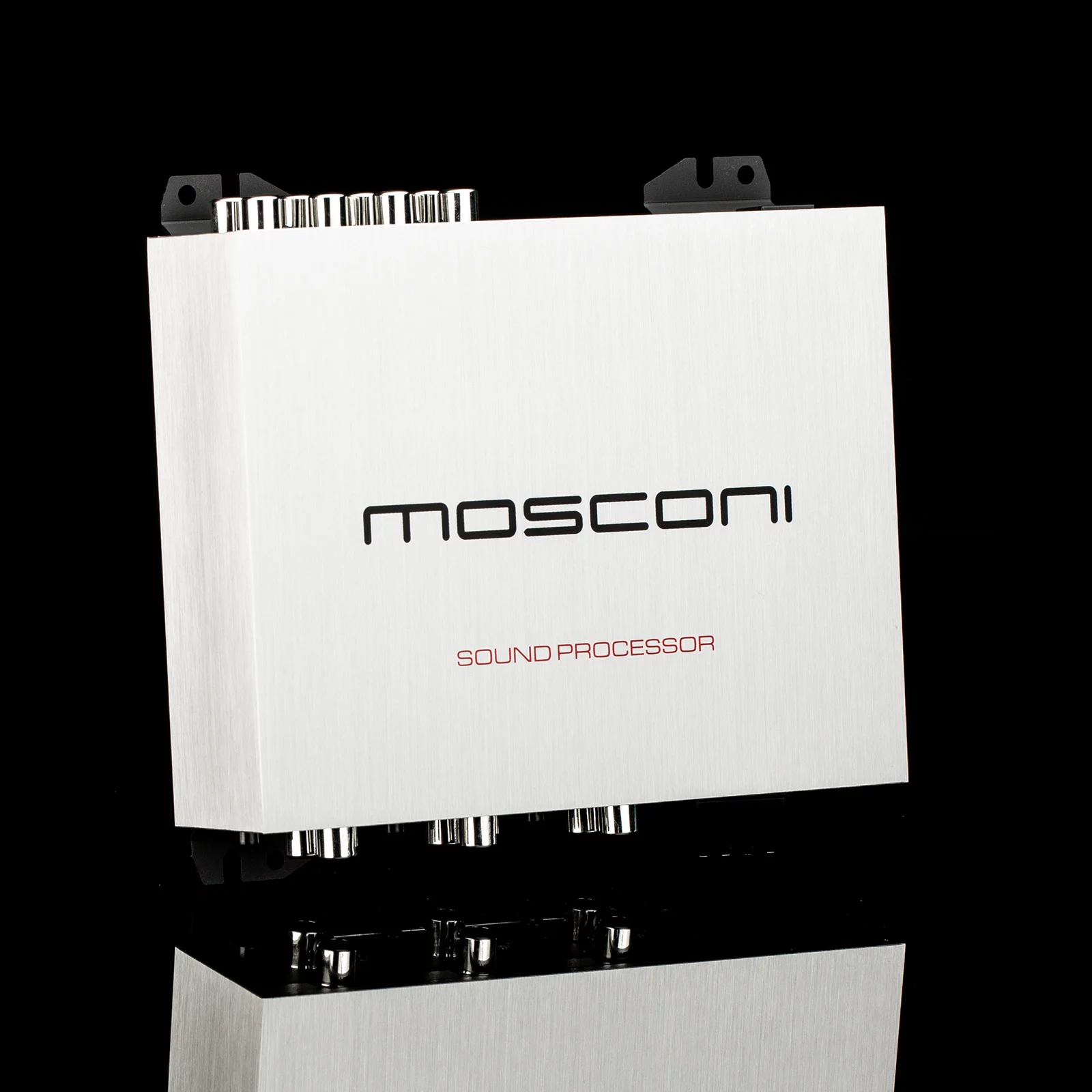

MOSCONI DSP 6TO8 PRO 6-channel input 8-channel output 48 kHz / 24 bit High Resolution-Audio TECHNICAL DATA MOSCONI DSP 6TO8 PRO INPUTS: 6 x RCA (Cinch), switchable high/low level with autosense 1 x BT interface, (only compatible with BTM) 2 of them freely selectable as prioritized auto-fade/aux ATOM Mixer menu with dynamic preset switching and "trigger" control OUTPUTS: 8 x RCA analog 12 V remote-out / autosense at high level signal EQUALIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: Channels Front (1 - 4) Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free FILTER: 5 per channel freely configurable Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/oct, variable Q, time and level OTHER: Time correction 0 - 12 ms (0.020 ms steps) Input delay (channels 1 - 6) for correction of run-time delayed factory systems Phase shift 0 - 180° Level adjustment outputs (0.5 - dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 150 x 125 x 40 mm (incl. mounting flange)

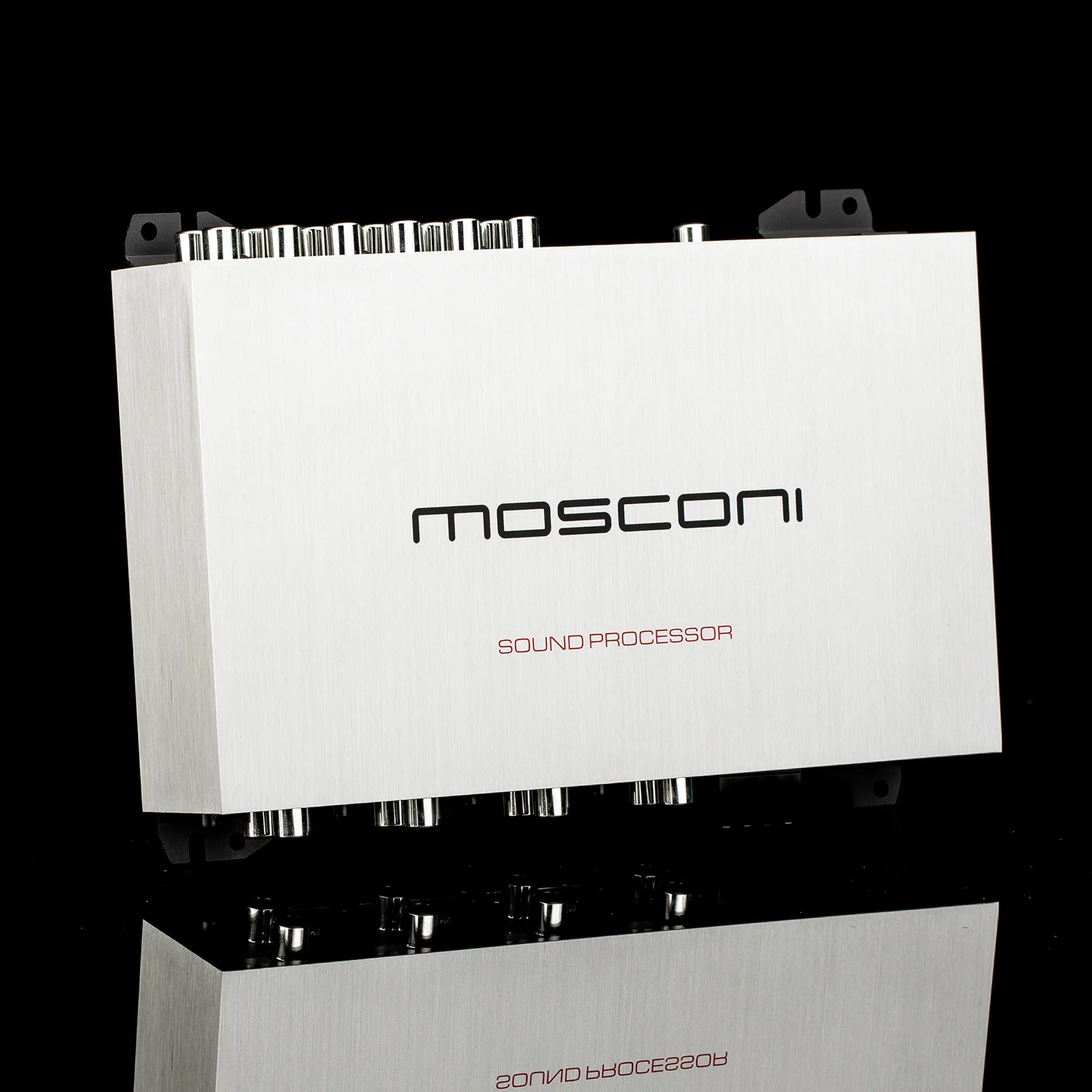

MOSCONI DSP 8TO12 PRO 8-channel input 12-channel output High resolution 6to8 audio performance 1 x digital IN / direct-audio-streaming (optional) 48 KHZ/24 BIT HIGH RESOLUTION-AUDIO High Resolution BT Pure Digital Direct Streaming You love music in highest sound quality! With the optional MOS-BTS you play your music lossless. The best part is, it happens wirelessly via BT. Just start your music on your smartphone or tablet and the DSP just plays it. How the DSP knows what to do...  ATOM   A uto  F ade  T rigger  O ption  M enu! TECHNICAL DATA MOSCONI DSP 8TO12 PRO INPUTS: 8 x RCA (Cinch), switchable high / low level with autosense 4 of them freely selectable as prioritized auto-fade/aux 1 x digital input, optionally usable as: 1 x S/PDIF digital optical 1 x RCA digital COAX 1 x BT slot ATOM Mixer menu with dynamic preset switching and "trigger" control OUTPUTS: 12 x RCA analog 1 x S/PDIF optical (freely assignable, volume controlled) 12 V remote-out / autosense bei high level-signal EQUILIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: Channels Front (1 - 6) Channels Rear (9 + 10) Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free FILTERS: 10 per channel freely configurable, (setting without sound interruption) Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/Oct, variable Q, time and level OTHERS: Time correction 0 - 12 ms (0.010 ms steps) (setting without sound interruption) Input delay (channels 1 - 6) for correction of run-time delayed plant systems Phase shift 0 - 180° Level adjustment outputs (0.5-dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 200 x 125 x 40 mm (incl. mounting flange)

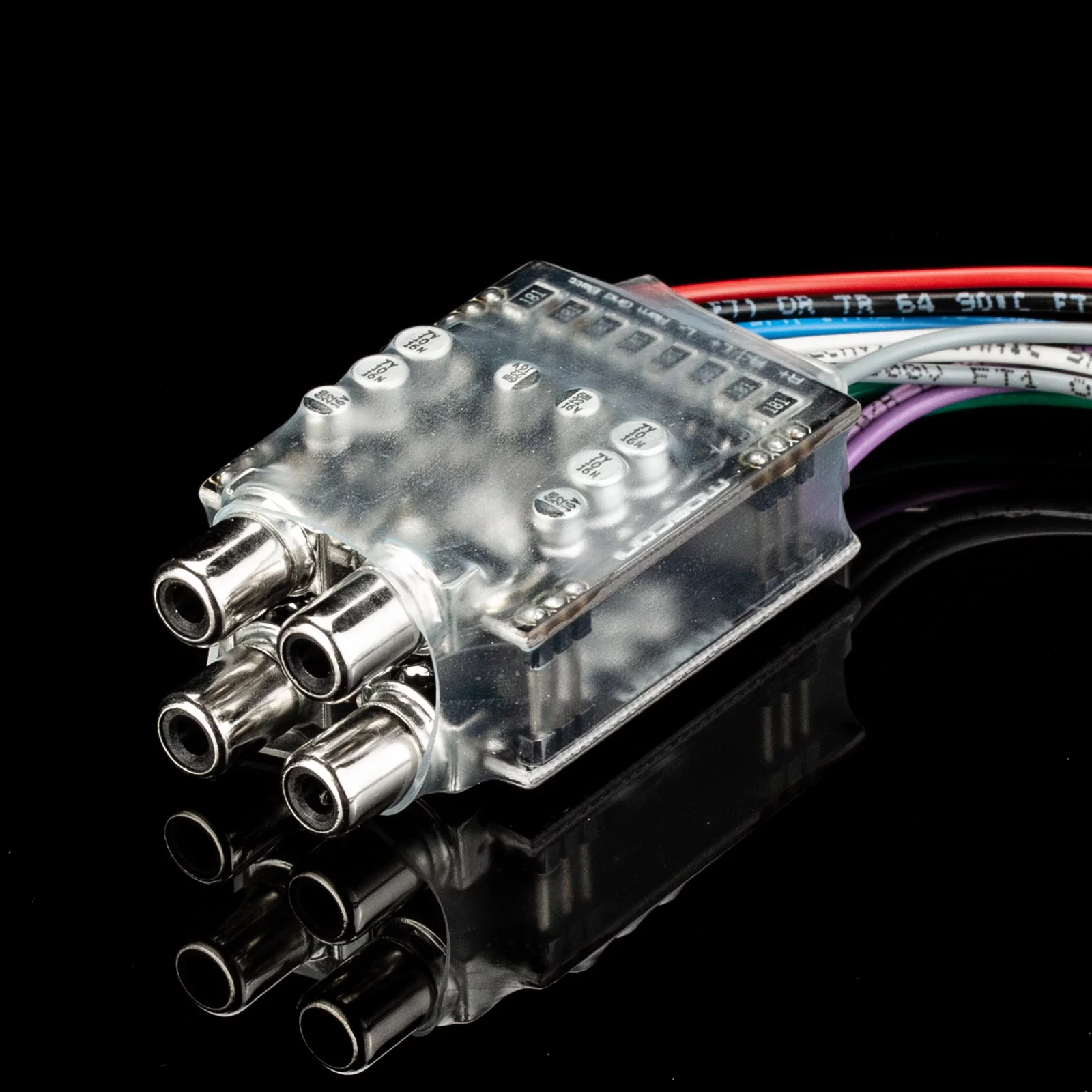

HIGH-LOW ADAPTER As (Slim)  4-channel (Dual) No plastic housing and connector, therefore very small and easy to install HLA SLIM HP loadable up to 50 Watt Remote output loadable with 100 mA Made in Italy HLA-Slim / Dual are able to produce a stable and useful REMOTE signal only if the headunit is an high power unit (BTL). On these kind of headunits, each output has a steady state voltage which is used to detect when the headunit is powered on. HLA-Slim and/or Dual need at least 3Vdc on at least one of its inputs. These devices are not intended to sense the music signal, but only the dc voltage present on each BTL output.
